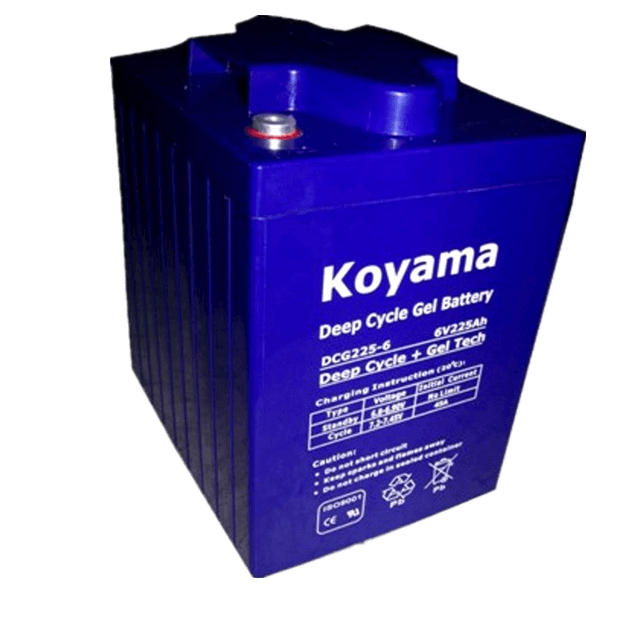

6V225AH Deep Cycle Gel Battery DCG225-6

KOYAMA Deep-Cycle Gel(DCG)batteries are maintenance free and require no watering, While providing you with the unmatched quality and power of Koyama’s advanced deep cycle gel technology .Koyama offers a complete portfolio of Deep-Cycle Gel(DCG) battery, featuring these benefits:

Long-lasting runtime and battery life in the most demanding of applications;
Proprietary Gel formulation prevents stratification;
Superior engineering offers exceptional durability.
  • DCG225-6

  • narada

  • 85072000

  • 6V225AH deep cycle gel battery

Availability:
Quantity:

Model No Industry No Rated Voltage (V) Capacity (Ah) Dimension Weight Terminal Type
Length Width Height Total Height kg
 mm mm  mm  mm
6V DEEP CYCLE GEL BATTERY
DCG200-6.pdf N/A 6 200 306 168 220 222 30.1 T5/AP
DCG210-6.pdf GC2/T105 6 210 260 180 247 252 29.6 T5/AP
DCG220-6.pdf N/A 6 220 306 168 220 222 31.6 T5/AP
DCG225-6.pdf (DIN) 6 225 243 187 275 275 30.6 T5
DCG225-6AP.pdf (DIN) 6 225 243 187 275 275 30.6 T5
DCG226-6.pdf GC2/T105 6 226 260 180 247 252 30.2 T5/AP
DCG250-6.pdf GC2/T105 6 226 260 187 265 272 34.7 T5/AP
DCG310-6.pdf 902/J305 6 310 295 178 354 360 46.2 T5
DCG310-6DT.pdf 902/J305 6 310 295 178 354 360 46.2 DT
DCG330-6AT.pdf 902/J305 6 330 295 178 354 360 46.8 T5/DT
DCG380-6.pdf L16 6 380 295 178 404 410 55.5 T5
DCG380-6DT.pdf L16 6 380 295 178 404 410 55.5 DT
DCG420-6.pdf L16 6 420 295 178 404 410 57 T5
DCG420-6DT.pdf L16 6 420 295 178 404 410 57 DT
8V DEEP CYCLE GEL BATTERY
DCG170-8.pdf GC8H 8 170 260 182 266 271 34.2 T5
DCG200-8.pdf GC8H 8 200 260 182 295 301 38.2 T5
12V DEEP CYCLE GEL BATTERY
DCG24-12.pdf N/A 12 24 166 175 126 126 8.4 T2
DCG26-12.pdf N/A 12 26 165 126 174 174 8.5 T3
DCG35-12.pdf U1 12 35 196 130 155 167 10.6 T3
DCG40-12.pdf U1L 12 40 198 166 174 174 14.3 T3
DCG55-12.pdf 22NF 12 55 229 138 208 212 16.1 T3
DCG70-12.pdf 93 12 70 350 167 178 178 23.4 T3/AP
DCG75-12.pdf 24 12 75 260 169 211 215 25.1 T3/AP
DCG85-12.pdf 24 12 85 260 169 211 215 26.2 T3/AP
DCG90-12.pdf 27 12 90 307 169 211 216 28.3 T3/T4/AP
DCG100-12.pdf 27 12 100 307 169 211 216 30.3 T4
DCG100-12AP.pdf 27 12 100 307 169 211 216 30.3 AP
DCG110-12.pdf 31 12 110 331 174 214 220 33.5 T4
DCG110-12AP.pdf 31 12 110 331 174 214 220 33.5 AP
DCG110-12B.pdf 31 12 110 328 172 217 222 32.8 T4
DCG120-12.pdf N/A 12 120 407 173 210 233 39.5 T5/AP
DCG135-12.pdf N/A 12 135 341 173 283 288 41 T5
DCG135-12AP.pdf N/A 12 135 341 173 283 288 41 AP
DCG150-12.pdf N/A 12 150 484 171 241 241 45.7 T5/AP
DCG150-12B.pdf (DIN) 12 150 328 182 267 272 44.4 T5/AP
DCG180-12.pdf 4D 12 180 532 206 216 222 56.2 T5/AP
DCG200-12.pdf 4D 12 200 532 206 216 222 58.6 T5/AP
DCG220-12.pdf 4D 12 220 522 240 219 225 65.2 T5/AP
DCG240-12.pdf 8D 12 240 520 269 203 209 71.3 T5/AP
DCG260-12.pdf 8D 12 260 520 268 220 226 77.3 T5/AP


• The success of DCG batteries comes from the internationally superior Gel technology

• Excellent energy storage capacity combined with high reliability

• Designed in accordance with IEC 60254-1

• 700 Cycles at 75%DOD

• 7 years design life at 20 °C ambient temperature (80% remaining capacity from C20)

• Grid plate construction consisting of a lead calcium alloy

• Very low gassing due to the internal gas recombination

• High cycle service life

• Better temperature resistance performance

• Excellent deep cycle performance

• Superior low current discharge performance

• Better charge acceptability

• Better safety performance and reliability

• High Performance price/ratio and low yearly operating cost

• Non-Spillable construction design

• Safety valve installation for explosion proof

• Low self discharge characteristic

• ABS containers and covers (UL94HB, UL94V-0 optional)

• Gel-batteries are designed to be operated within a wide temperature range –40° C and +55° C

• Maintenance-free (no topping up) motive power batteries in gel technology

• Completely recyclable

• other power drive equipment, etc



•  Aerial Work Platform (AWP)/Access

•  Material Handling

•  Floor Machine

•  Recreational Vehicle (RV)

•  Industrial

•  Electric Boats

•  Golf/Utility/Neighborhood Electric Vehicle (NEV)

•  Wheelchairs

•  Remote Monitoring & Instrumentation

•  Renewable Energy (Solar, Small Wind and Small Hydro)

cbb battery terminal 1cbb battery terminal 2

1.DCG series-Deep Cycle Gel Battery Brochure
