Aerial Platform/Access Deep-Cycle AGM Battery

CBB's deep-cycle Absorbed Glass Mat (AGM) maintenance-free batteries feature a number of design elements to provide optimum performance. Robust plates and separators extend the life-cycle of CBB's deep-cycle AGM batteries while a computer-generated grid design is optimized for high-power density. CBB's deep-cycle AGM batteries are low temperature tolerant, shock and vibration resistant and have a low internal resistance for higher discharge current and higher charging efficiency.

CBB Absorbed Glass Mat (AGM) batteries are the only true deep-cycle AGM battery on the market today. VRLA AGM is engineered with an advanced technology feature set that provides outstanding sustained performance and total energy output, delivering the exceptional quality and reliability CBB batteries are known for.
  • DC200-8

  • KOYAMA ,CBB ,BESTART

  • 85072000

  • deep cycle battery with high performance

Availability:
Quantity:



Model No Industry No Voltage (V) Capacity (Ah) Dimension Weight Terminal Type
Length Width Height Total Height kg
 mm mm mm  mm
6V AERIAL PLATFORM/ACCESS DEEP CYCLE AGM BATTERY
DC210-6.pdf GC2/T105 6 210 260 180 247 252 29.5 T5/AP
DC225-6AP.pdf (DIN-TE-35) 6 225 243 187 275 275 30.5 T5/AP
DC225-6.pdf GC2H/T125 6 226 260 180 247 252 30 T5/AP
DC250-6.pdf GC2H/T145 6 250 260 180 265 272 34.5 T5/AP
DC310-6DT.pdf 902/J305 6 310 295 178 354 360 46.0 T5/DT
DC330-6DT.pdf 902/J305 6 330 295 178 354 360 46.6 T5/DT
DC380-6DT.pdf L16 6 380 295 178 404 410 55.3 T5/DT
DC420-6DT.pdf L16H 6 380 295 178 404 410 56.8 T5/DT
8V AERIAL PLATFORM/ACCESS DEEP CYCLE AGM BATTERY

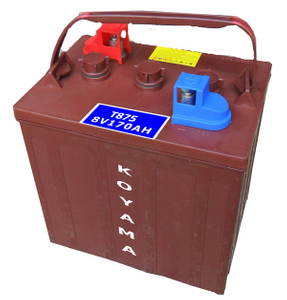

DC170-8.pdf GC8-T875 8 170 260 182 266 271 34.0 T5
DC200-8.pdf GC8H-T890 8 200 260 182 295 301 38.0 T5
12V AERIAL PLATFORM/ACCESS DEEP CYCLE AGM BATTERY
DC90-12.pdf 27 12 90 307 169 211 216 28.2 T3/AP
DC100-12AP.pdf 27H 12 100 307 169 211 216 30.2 T3/AP
DC110-12.pdf 31 12 110 331 174 214 220 33.3 T4/AP
DC110-12B.pdf 31B 12 110 328 172 210 233 32.8 T4/AP



• High Power Density

•Thick Plates and High-density

• Superior Deep Cycle Design

• High Power Density

•Thick Plates and High-density Active Material

•Excellent energy storage capacity combined with high reliability

•Designed in accordance with IEC 60254-1

•700 Cycles at 75%DOD

•  Golf car, wheeler, electric vehicle

•  Solar energy/ wind power system

•  electrical tools

•  other power drive equipment, etc

•  Golf/NEV/Utility Vehicles

•  Aerial Work Platforms/Access

•  Floor Machine

• Material Handing

cbb battery terminal 1 cbb battery terminal 2
1.DCG series-Deep Cycle Gel Battery Brochure
