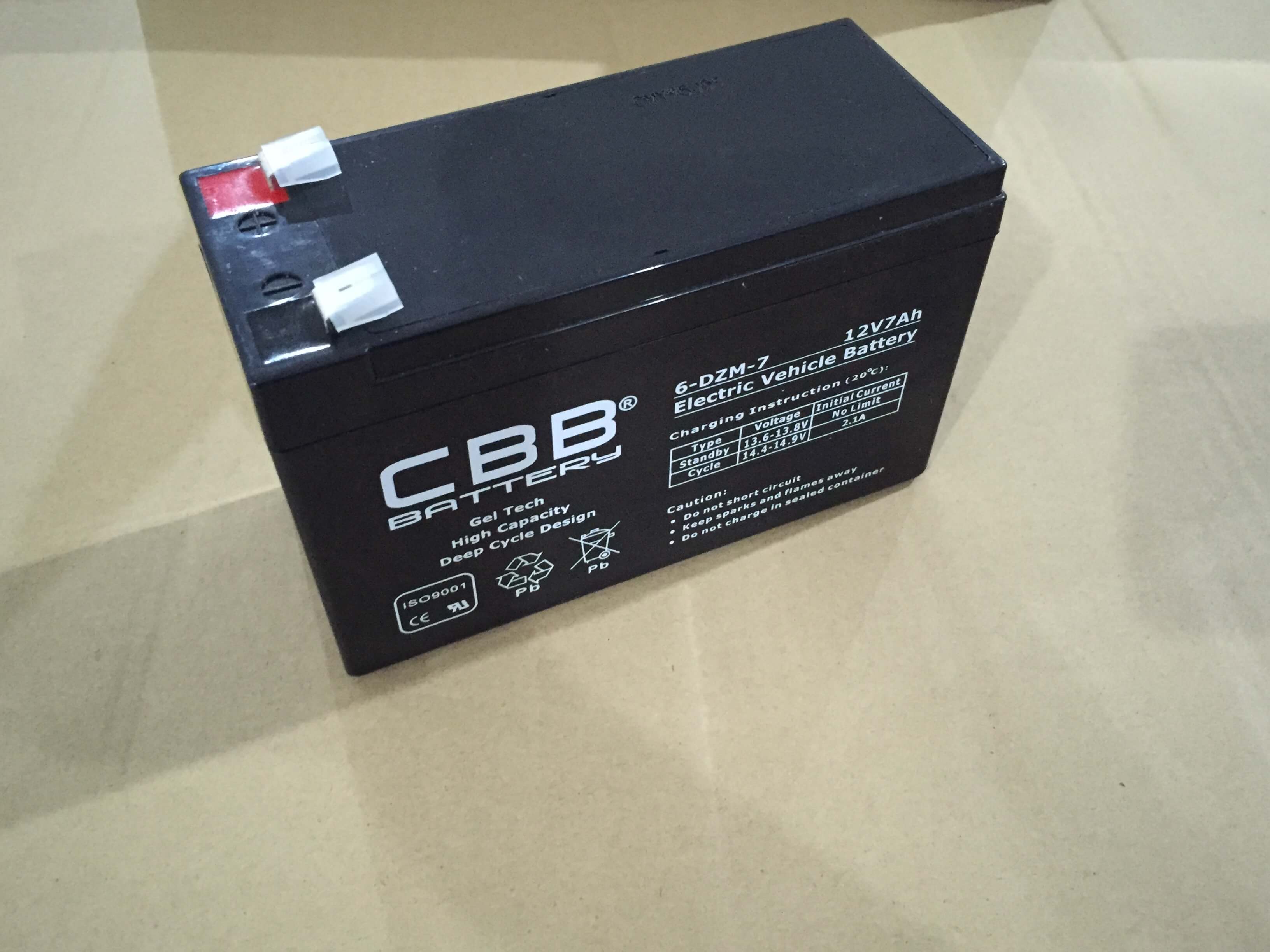

6-DZM-7 Electric Scooter Battery

Model No (Data Sheet)	Rated Voltage （V）	Rated Capacity (Ah/2HR)	Dimension								Weight		Terminal Type
			Length		Width		Height		Total Height		kg	pound
			mm	inch	mm	inch	mm	inch	mm	inch	kg	pound
6-DZM-5	12	5	151	5.94	51	2.01	95	3.74	101	3.98	1.7	3.74	F1
6-DZM-7	12	7	152	5.98	65	2.56	94	3.70	100	3.94	2.2	4.84	F2
6-DZM-10A	12	10	152	5.98	99	3.90	95	3.74	98	3.86	4.2	9.24	F2/T1
6-DZM-12	12	12	152	5.98	99	3.90	98	3.86	101	3.98	4.4	9.68	T1
8-DZM-14	16	14	201	7.91	113	4.45	99	3.90	102	4.02	6.5	14.3	T2
6-DZM-20	12	20	181	7.13	77	3.03	170	6.69	171	6.73	7	15.4	T2
6-DZM-24	12	24	175	6.89	165	6.50	126	4.96	126	4.96	9	19.8	T2
6-DZM-24B	12	24	185	7.28	105	4.13	130	5.12	130	5.12	7.3	16.06	T2
6-DZM-28	12	28	318	12.52	80	3.15	126	4.96	126	4.96	9.6	21.12	T2
6-DZM-28B	12	28	175	6.89	166	6.54	126	4.96	126	4.96	9.8	21.56	T3
6-DZM-30	12	30	224	8.82	95	3.74	175	6.89	175	6.89	10.1	22.22	T3
6-DZM-30	12	30	267	10.51	77	3.03	170	6.69	170	6.69	10.1	22.22	T3
6-DZM-35	12	35	225	8.86	107	4.21	175	6.89	175	6.89	12	26.4	T3
6-DZM-42	12	42	224	8.82	120	4.72	175	6.89	175	6.89	12.5	27.5	T3
6-DZM-50	12	50	224	8.82	120	4.72	175	6.89	175	6.89	13.5	29.7	T3

Non-Cadmium Design, Environment-friendly:
CBB Battery has adopted internationally leading technology - Non-Cadmium container formation Production Process technology, which is in the leading position in the industry. It helps to save energy 28.5%, save water 90%, and non-discharge of waste water.
Super Long Mileage:
Special active additives have been added in the positive plate to improve the consistency of the formated active material after formation. This has been obviously improved the battery's charge/discharge efficiency, and more power can be released during discharging. The mileage of each discharge is improved significantly.
Strong Motive Power:
Super thin plate design is adopted to increase the area of electrochemical reaction, which enables the battery has excellent large current discharge ability. Adopting cast-welding process to reduce the battery's internal resistance, so the battery's charge/discharge efficiency is improved to enable battery with large power discharge capability.
Long Service Life:
The CBB battery has excellent cycle life which can reach 600 cycles @ 80% DOD. The batteries are well grouped to improve the battery bank's consistency in order to improve the battery bank's service life.
Non-Spillable and High Safety:
The battery container and lid are made of Enhanced ABS material and they are sealed by epoxy resin, so the battery is well sealed without any acid leakage issue. High accuracy safety valve has been applied to prevent battery bulging, and safety valve and acid filter are used for preventing sparks splashed into battery to ensure the safety use of battery.
High Reliability:
Improved negative material prescription and increased micropoles structure at negative helps to improve a lot on charge/discharge performance at extreme temperature condition. Low water loss rate, high temperature resistance, and battery deformation resistance.

• Electric bike ,motor,scooter
• Electrical Vehicle
• Mixture Electrical vehicle
• Sightseeing car
• Golf car
• Electrical transit car
• Electrical patrol car
• Public project car
• Electrical tractor
• Property maintenance car
• Electrical flat car
• Electrical freight car
• Electrical drone car

1.DCG series-Deep Cycle Gel Battery Brochure
