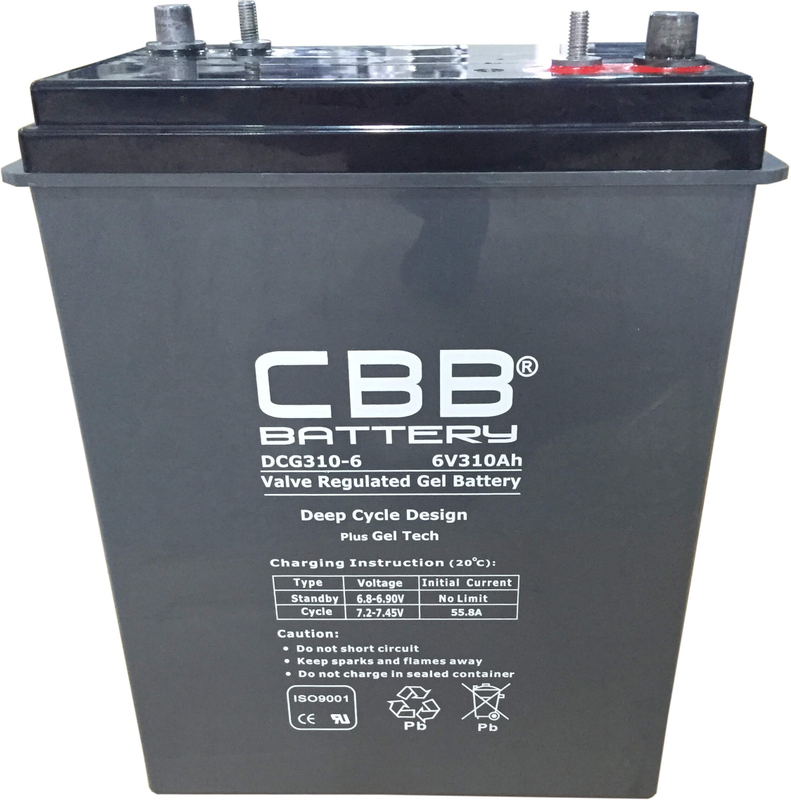

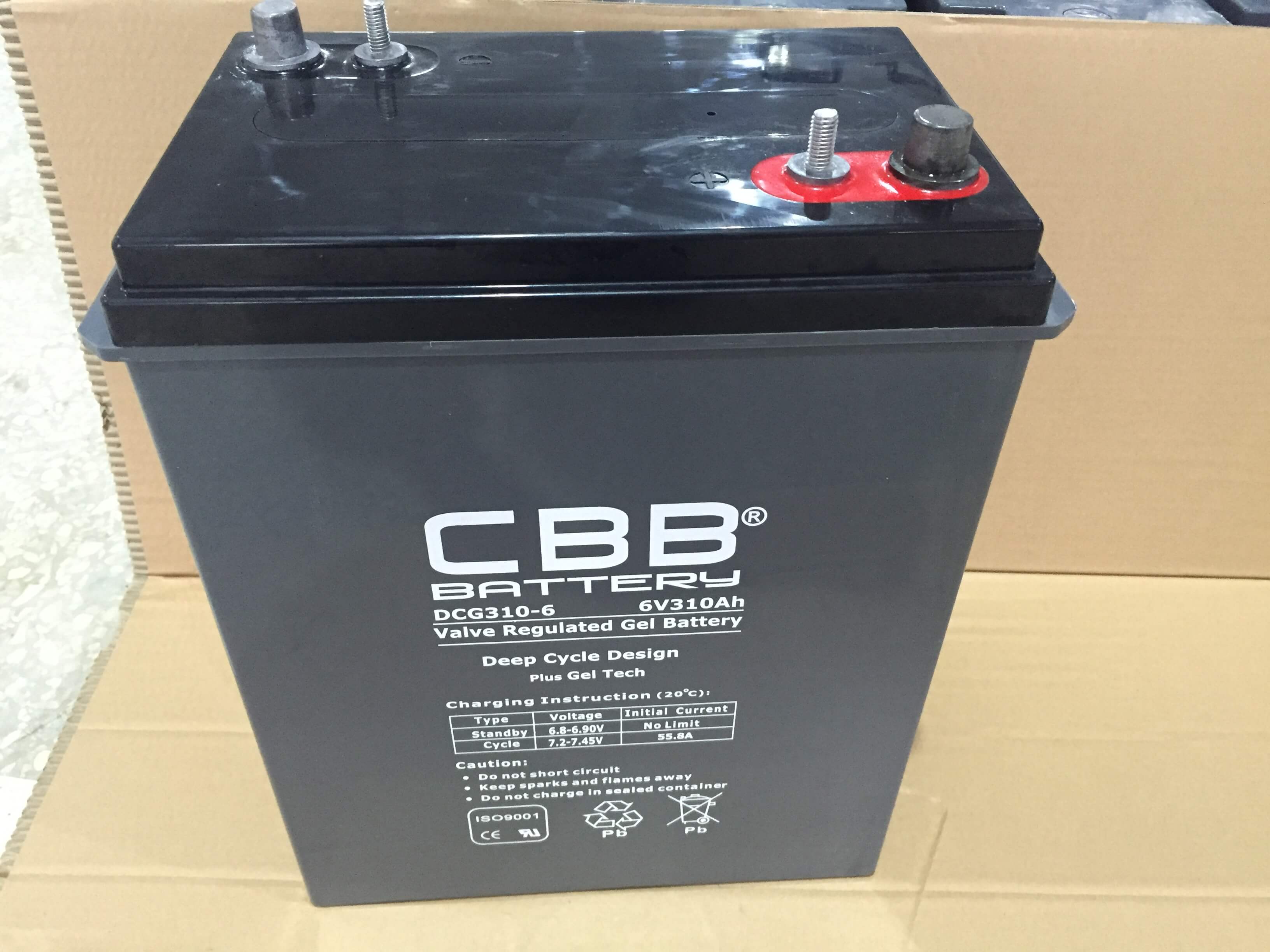

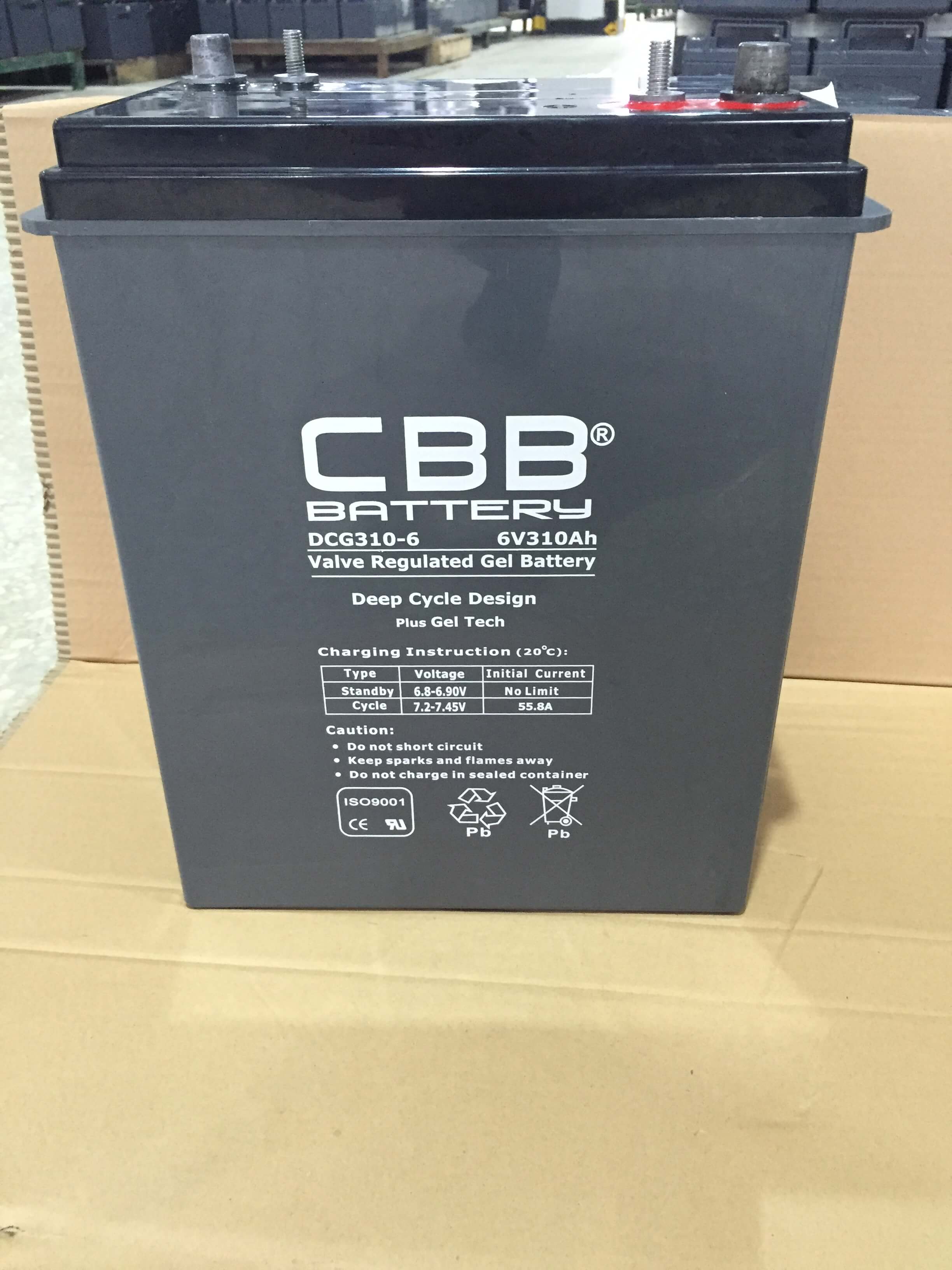

CBB® DCG310-6 Deep Cycle Gel Battery

KOYAMA Deep-Cycle Gel（DCG）batteries are maintenance free and require no watering, While providing you with the unmatched quality and power of Koyama’s advanced deep cycle gel technology .Koyama offers a complete portfolio of Deep-Cycle Gel（DCG) battery, featuring these benefits:

Long-lasting runtime and battery life in the most demanding of applications;
Proprietary Gel formulation prevents stratification;
Superior engineering offers exceptional durability.

  • DCG310-6

  • CBB

  • Battery Type : deep cycle gel battery
  • cycle life : long cycle life
  • Volate: 6V
  • Capacity: 310Ah
Quantity:
Inquiry

Model No
(Data sheet)		 Industry No   Rated     Voltage  (V） Capacity (Ah) Dimension Weight Terminal
Length Width Height Total Height kg pound
 mm inch mm inch  mm inch  mm inch
6V DEEP CYCLE GEL BATTERY
DCG200-6 N/A 6 200/20HR 306 12.05 168 6.61 220 8.66 222 8.74 30.1 66.22 T5/AP
DCG210-6 GC2/T105 6 210/20HR 260 10.24 180 7.09 247 9.72 252 9.92 29.6 65.12 T5/AP
DCG220-6 N/A 6 220/20HR 306 12.05 168 6.61 220 8.66 222 8.74 31.6 69.52 T5/AP
DCG225-6 (DIN) 6 225/20HR 243 9.57 187 7.36 275 10.83 275 10.83 30.6 67.32 T5/AP
DCG226-6 GC2/T105 6 226/20HR 260 10.24 180 7.09 247 9.72 252 9.92 30.2 66.44 T5/AP
DCG250-6 GC2/T105 6 226/20HR 260 10.24 187 7.36 265 10.43 272 10.71 34.7 76.34 T5/AP
DCG310-6 902/J305 6 310/20HR 295 11.61 178 7.01 354 13.94 360 14.17 46.2 101.64 T5/DT
DCG330-6 902/J305 6 330/20HR 295 11.61 178 7.01 354 13.94 360 14.17 46.8 102.96 T5/DT
DCG380-6 L16 6 380/20HR 295 11.61 178 7.01 404 15.91 410 16.14 55.5 122.10 T5/DT
DCG420-6 L16 6 420/20HR 295 11.61 178 7.01 404 15.91 410 16.14 57 125.40 T5/DT
8V DEEP CYCLE GEL BATTERY
DCG170-8 GC8H 8 170/20HR 260 10.24 182 7.17 295 11.61 301 11.85 34.2 75.24 T5
DCG200-8 GC8H 8 200/20HR 260 10.24 182 7.17 295 11.61 301 11.85 38.2 84.04 T5
12V DEEP CYCLE GEL BATTERY
DCG24-12 N/A 12 24/20HR 166 6.54 175 6.89 126 4.96 126 4.96 8.4 18.48 T2
DCG26-12 N/A 12 26/20HR 165 6.50 126 4.96 174 6.85 174 6.85 8.5 18.70 T3
DCG35-12 U1 12 35/20HR 196 7.72 130 5.12 155 6.10 167 6.57 10.6 23.32 T3
DCG40-12 U1L 12 40/20HR 198 7.80 166 6.54 174 6.85 174 6.85 14.3 31.46 T3
DCG55-12 22NF 12 55/20HR 229 9.02 138 5.43 208 8.19 212 8.35 16.1 35.42 T3
DCG70-12 93 12 70/20HR 350 13.78 167 6.57 178 7.01 178 7.01 23.4 51.48 T3/AP
DCG75-12 24 12 75/20HR 260 10.24 169 6.65 211 8.31 215 8.46 25.1 55.22 T3/AP
DCG85-12 24 12 85/20HR 260 10.24 169 6.65 211 8.31 215 8.46 26.2 57.64 T3/AP
DCG90-12 27 12 90/20HR 307 12.09 169 6.65 211 8.31 216 8.50 28.3 62.26 T3/T4/AP
DCG100-12 27 12 100/20HR 307 12.09 169 6.65 211 8.31 216 8.50 30.3 66.66 T4/AP
DCG110-12 31 12 110/20HR 331 13.03 174 6.85 214 8.43 220 8.66 33.5 73.70 T5/AP
DCG110-12B 31 12 110/20HR 328 12.91 172 6.77 217 8.54 222 8.74 32.8 72.16 T5/AP
DCG120-12 N/A 12 120/20HR 407 16.02 173 6.81 210 8.27 233 9.17 39.5 86.90 T5/AP
DCG135-12 N/A 12 135/20HR 341 13.43 173 6.81 283 11.14 288 11.34 41 90.20 T5/AP
DCG150-12 N/A 12 150/20HR 484 19.06 171 6.73 241 9.49 241 9.49 45.7 100.54 T5/AP
DCG150-12B (DIN) 12 150/20HR 338 13.31 182 7.17 267 10.51 272 10.71 44.4 97.68 T5/AP
DCG180-12 4D 12 180/20HR 532 20.94 206 8.11 216 8.50 222 8.74 56.2 123.64 T5/AP
DCG200-12 4D 12 200/20HR 532 20.94 206 8.11 216 8.50 222 8.74 58.6 128.92 T5/AP
DCG220-12 4D 12 210/20HR 522 20.55 240 9.45 219 8.62 225 8.86 65.2 143.44 T5/AP
DCG240-12 8D 12 240/20HR 520 20.47 269 10.59 203 7.99 209 8.23 71.3 156.86 T5/AP
DCG260-12 8D 12 260/20HR 520 20.47 268 10.55 220 8.66 226 8.90 77.3 170.06 T5/AP

• The success of DCG batteries comes from the internationally superior Gel technology

• Excellent energy storage capacity combined with high reliability

• Designed in accordance with IEC 60254-1

• 700 Cycles at 75%DOD

• 7 years design life at 20 °C ambient temperature (80% remaining capacity from C20)

• Grid plate construction consisting of a lead calcium alloy

• Very low gassing due to the internal gas recombination

• High cycle service life

• Better temperature resistance performance

• Excellent deep cycle performance

• Superior low current discharge performance

• Better charge acceptability

• Better safety performance and reliability

• High Performance price/ratio and low yearly operating cost

• Non-Spillable construction design

• Safety valve installation for explosion proof

• Low self discharge characteristic

• ABS containers and covers (UL94HB, UL94V-0 optional)

• Gel-batteries are designed to be operated within a wide temperature range –40° C and +55° C

• Maintenance-free (no topping up) motive power batteries in gel technology

• Completely recyclable

• other power drive equipment, etc



•  Aerial Work Platform (AWP)/Access

•  Material Handling

•  Floor Machine

•  Recreational Vehicle (RV)

•  Industrial

•  Electric Boats

•  Golf/Utility/Neighborhood Electric Vehicle (NEV)

•  Wheelchairs

•  Remote Monitoring & Instrumentation

•  Renewable Energy (Solar, Small Wind and Small Hydro)

cbb battery terminal 1 cbb battery terminal 2
1.DCG series-Deep Cycle Gel Battery Brochure
