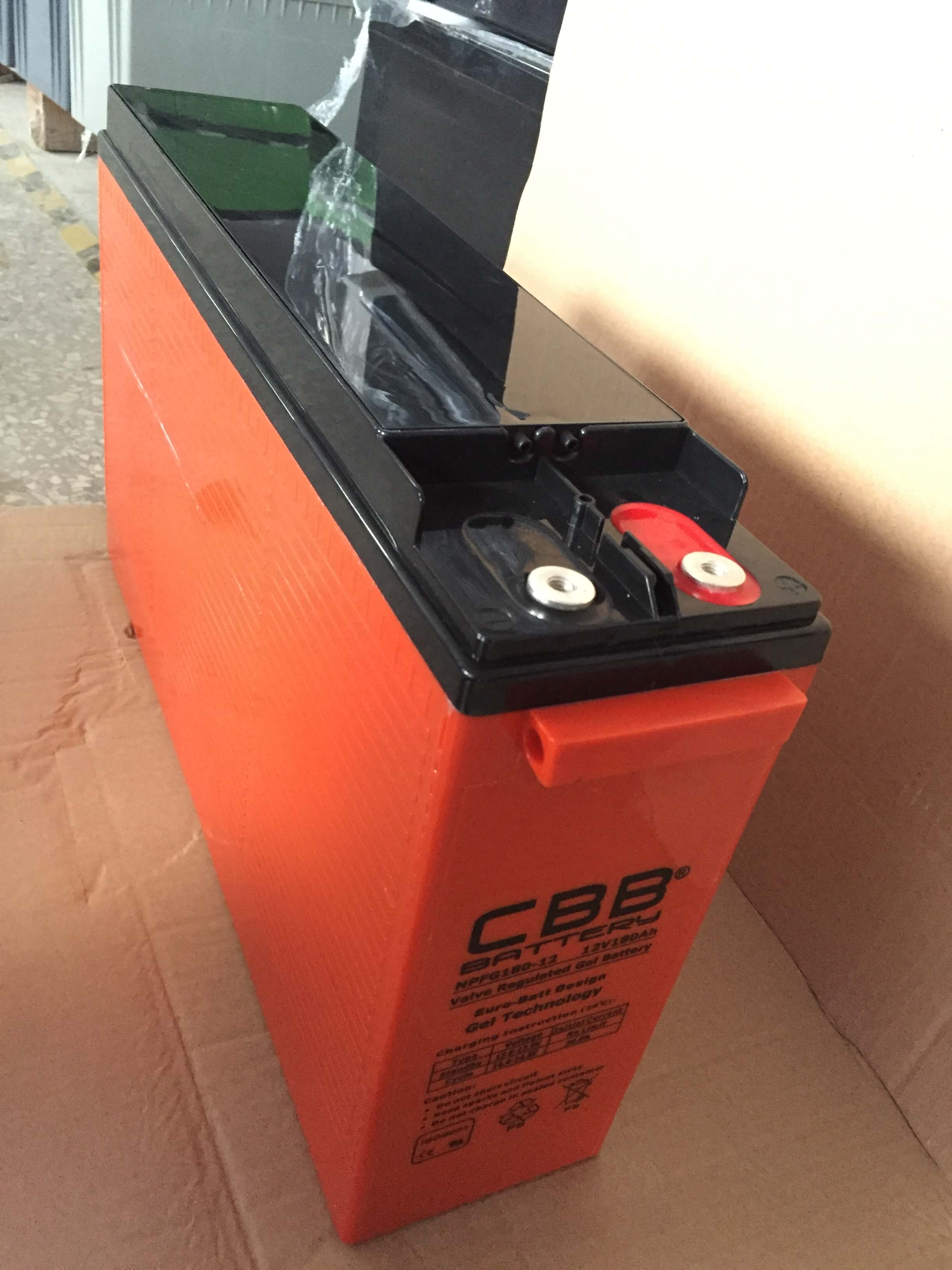

CBB® NPFG180-12 Eurobatt Gel Battery

CBB® NPFG series gel batteries are designed with front terminal structure. The perfect design ensures NPFG Gel battery the high reliability and makes the installation quite simple and safe when placed on a standard relay rack tray or in a closed cabinet. Adopt Flat plates with gel electrolyte. This new technology leverages on the advantages of the AGM and Gel technology to provide better cycle performance versus the AGM technology and a shorter time discharge performance as compared with the Gel technology. NPFG Series gel battery is designed with high energy density and suitable for 19", 23" rack or cabinet, and also offers options of top connection and side of monoblocks connection. NPFG Series battery can be equipped with central gas collection system according to the requirement of customer.

  • NPFG180-12
  • CBB
Quantity:
Model No
(Data Sheet)
Rated Voltage
(V)
Rated Capacity (Ah) Dimension Weight Terminal
Length Width Height Total Height kg pound
 mm inch mm inch  mm inch  mm inch
NPFG55-12 12 55/10HR 277 10.91 106 4.17 223 8.78 223 8.78 16.1 35.4 T2
NPFG80-12 12 80/10HR 562 22.13 114 4.49 188 7.40 188 7.40 25.1 55.2 T3
NPFG100-12 12 100/10HR 507 19.96 110 4.33 223 8.78 223 8.78 29.5 64.9 T5
NPFG110-12 12 110/10HR 394 15.51 110 4.33 286 11.26 286 11.26 30.6 67.3 T5
NPFG125-12 12 125/10HR 552 21.73 110 4.33 239 9.41 239 9.41 38.2 84.0 T5
NPFG150-12 12 150/10HR 551 21.69 110 4.33 288 11.34 288 11.34 44.2 97.2 T5
NPFG155-12 12 155/10HR 560 22.05 125 4.92 280 11.02 280 11.02 45.4 99.9 T5
NPFG160-12 12 160/10HR 551 21.69 110 4.33 288 11.34 288 11.34 44.7 98.3 T5
NPFG175-12 12 175/10HR 546 21.50 125 4.92 316 12.44 324 12.76 53.7 118.1 T5
NPFG180-12 12 180/10HR 560 22.05 125 4.92 316 12.44 316 12.44 54.2 119.2 T5
NPFG190-12 12 190/10HR 560 22.05 125 4.92 316 12.44 316 12.44 55.5 122.1 T5
NPFG200-12 12 200/10HR 560 22.05 125 4.92 316 12.44 316 12.44 57.2 125.8 T5


• Gel technology applied in NPFG range batteries.

• Front-access terminal connections for fast and easy installation and maintenance

• Suitable for 19", 23" rack or cabinet

• Excellent special lead-tin-calcium formula alloy for Grids and plates

• Mircoporous glass mats in low resistance as separator

• Self-regulating pressure relief valve

• 12+ years expectant Life under full float service at 25℃(77℉)

• 19" and 23" standard power cabinet

• communication system, microwave station, mobile base station, data center,

   radio / broadcasting station

• Power system of special network or local area network

• Emergency lighting and signal system

• UPS, Standby power, etc

cbb battery terminal 1 cbb battery terminal 2
