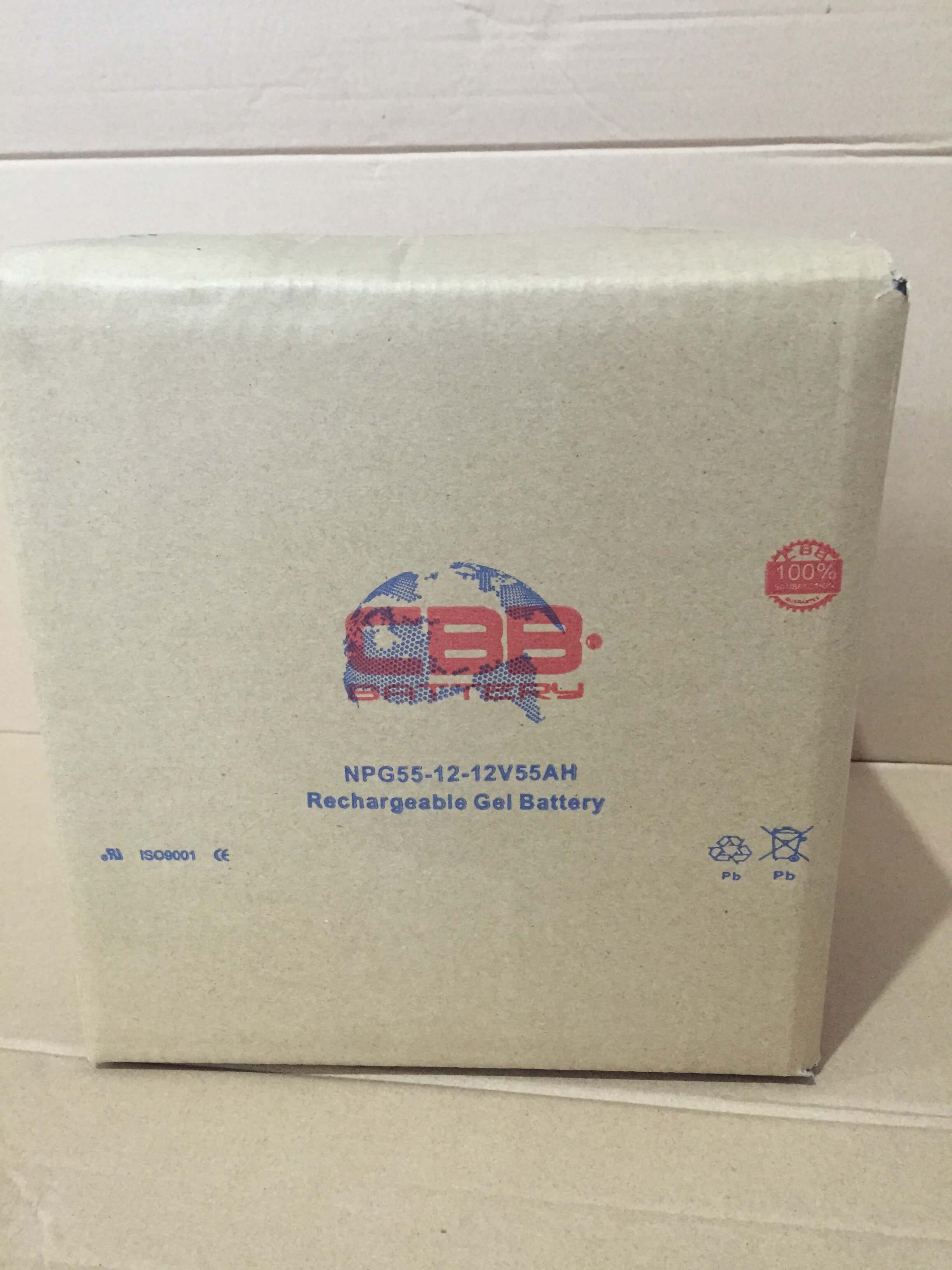

CBB® NPG55-12 Gel Battery

Model No (Data Sheet)	Rated Voltage （V）	Rated Capacity (Ah)	Dimension								Weight		Terminal Type
			Length		Width		Height		Total Height		kg	pound
			mm	inch	mm	inch	mm	inch	mm	inch	kg	pound
12V GEL BATTERY
NPG24-12	12	24/10HR	165	6.50	126	4.96	174	6.85	179	7.05	7.8	17.16	L6/T3
NPG26-12	12	26/10HR	166	6.54	175	6.89	126	4.96	126	4.96	8.4	18.48	L2/T2
NPG33-12	12	33/10HR	196	7.72	130	5.12	155	6.10	179	7.05	10.1	22.22	L7/T3/L4
NPG38-12	12	38/10HR	197	7.76	166	6.54	174	6.85	179	7.05	12.4	27.28	L6/T3/L7
NPG42-12	12	42/10HR	198	7.80	166	6.54	174	6.85	174	6.85	13	28.60	L7/T3/L3
NPG50-12	12	50/10HR	258	10.16	134	5.28	200	7.87	200	7.87	15.6	34.32	L8
NPG55-12	12	55/10HR	229	9.02	138	5.43	208	8.19	226	8.90	16.4	36.08	L4/T3
NPG60-12	12	60/10HR	350	13.78	167	6.57	178	7.01	178	7.01	17.3	38.06	L9/T3
NPG65-12	12	65/10HR	350	13.78	167	6.57	178	7.01	178	7.01	20.3	44.66	L9/T3/L4
NPG70-12-A	12	70/10HR	350	13.78	167	6.57	178	7.01	178	7.01	21.4	47.08	L9/T3/L4
NPG70-12-B	12	70/10HR	260	10.24	169	6.65	211	8.31	231	9.09	21.8	47.96	L11/T3
NPG75-12	12	75/10HR	260	10.24	169	6.65	211	8.31	231	9.09	22.2	48.84	L11/T3
NPG80-12	12	80/10HR	260	10.24	169	6.65	211	8.31	215	8.46	23.5	51.70	T3/L11/L4
NPG85-12	12	85/10HR	331	13.03	174	6.85	214	8.43	219	8.62	25	55.00	L12/T4
NPG90-12	12	90/10HR	307	12.09	169	6.65	211	8.31	227	8.94	26.7	58.74	L13/T3
NPG100-12	12	100/10HR	331	13.03	174	6.85	214	8.43	219	8.62	29.2	64.24	L12/T4
NPG120-12	12	120/10HR	407	16.02	174	6.85	210	8.27	233	9.17	33.2	73.04	L14/T5
NPG130-12	12	150/10HR	484	19.06	171	6.73	241	9.49	241	9.49	38.2	84.04	L16/T4
NPG150-12	12	150/10HR	484	19.06	171	6.73	241	9.49	241	9.49	43.8	96.36	L16/T4
NPG160-12	12	160/10HR	532	20.94	206	8.11	216	8.50	221	8.70	48.5	106.70	L17/T4
NPG200-12	12	200/10HR	522	20.55	240	9.45	219	8.62	244	9.61	58.6	128.92	L17/T5
NPG220-12	12	220/10HR	522	20.55	240	9.45	219	8.62	244	9.61	60.8	133.76	L17/T5
NPG250-12	12	250/10HR	520	20.47	268	10.55	220	8.66	245	9.65	71	156.20	L17/T5
6V GEL BATTERY
NPG130-6	6	130/10HR	260	10.24	180	7.09	247	9.72	251	9.88	20.8	45.76	T5
NPG180-6	6	180/10HR	306	12.05	168	6.61	220	8.66	226	8.90	27.3	60.06	T5
NPG200-6	6	200/10HR	260	10.24	180	7.09	247	9.72	251	9.88	28.3	62.26	T5
NPG225-6A	6	220/10HR	323	12.72	178	7.01	224	8.82	229	9.02	29.6	65.12	T5
NPG225-6B	6	225/10HR	260	10.24	180	7.09	247	9.72	251	9.88	29.6	65.12	T5
2V GEL BATTERY
NPG100-2	2	100/10HR	171	6.73	72	2.83	205	8.07	230	9.06	5.9	12.98	T5
NPG120-2	2	120/10HR	171	6.73	72	2.83	205	8.07	230	9.06	6.4	14.08	T5
NPG150-2	2	150/10HR	171	6.73	102	4.02	206	8.11	230	9.06	8.2	18.04	T5
NPG200-2	2	200/10HR	170	6.69	106	4.17	330	12.99	367	14.45	13.1	28.82	T5
NPG300-2	2	300/10HR	171	6.73	151	5.94	330	12.99	365	14.37	18.6	40.92	T5
NPG350-2	2	350/10HR	171	6.73	151	5.94	330	12.99	366	14.41	20.6	45.32	T5
NPG400-2	2	400/10HR	211	8.31	176	6.93	329	12.95	367	14.45	26.3	57.86	T5
NPG425-2	2	425/10HR	211	8.31	176	6.93	329	12.95	367	14.45	27	59.40	T5
NPG500-2	2	500/10HR	241	9.49	171	6.73	349	13.74	368	14.49	31.2	68.64	T5
NPG600-2	2	600/10HR	301	11.85	175	6.89	331	13.03	366	14.41	37.9	83.38	T5
NPG800-2	2	800/10HR	410	16.14	176	6.93	330	12.99	365	14.37	51.8	113.96	T5
NPG1000-2	2	1000/10HR	472	18.58	172	6.77	338	13.31	355	13.98	62.3	137.06	T5
NPG1200-2	2	1200/10HR	475	18.70	175	6.89	328	12.91	365	14.37	68.8	151.36	T5
NPG1500-2	2	1500/10HR	401	15.79	351	13.82	342	13.46	378	14.88	97	213.40	T5
NPG2000-2	2	2000/10HR	491	19.33	351	13.82	343	13.50	383	15.08	131	288.20	T5
NPG2500-2	2	2500/10HR	712	28.03	353	13.90	341	13.43	382	15.04	181	398.20	T5
NPG3000-2	2	3000/10HR	712	28.03	353	13.90	341	13.43	382	15.04	191	420.20	T5
