Deep Cycle AGM Battery

KOYAMA DC Series Deep-Cycle AGM batteries are ideal for applications that require sealed batteries with heavy-duty cycling capabilities or for backup power.
Deep-cycle batteries typically feature thick plates with a high-density active material. The thick battery Plates allow for reserve energy to be stored deep within the battery plate and released during slow discharge such as trolling or electronic instrument use. The high-density active material remains Within the batteries ‘plate/grid structure longer, resisting the normal degradation found in cycling Conditions. They are typically used where the battery is discharged to great extent and then recharged.

  • DC225-6
  • KOYAMA ,CBB ,BESTART
  • 85072000
  • deep cycle battery with high performance
Quantity:



Model No Industry No Voltage (V) Capacity (Ah) Dimension Weight Terminal Type
Length Width Height Total Height kg
 mm mm mm  mm
6V DEEP CYCLE AGM BATTERY
DC200-6.pdf N/A 6 200 306 168 220 222 30 T5/AP
DC210-6.pdf GC2/T105 6 210 260 180 247 252 29.5 T5/AP
DC220-6.pdf N/A 6 220 306 168 220 225 31.5 T5/AP
DC225-6AP.pdf (DIN) 6 225 243 187 275 275 30.5 T5/AP
DC225-6.pdf GC2/T105 6 226 260 180 247 252 30 T5/AP
DC250-6.pdf GC2/T105 6 250 260 180 265 272 34.5 T5/AP

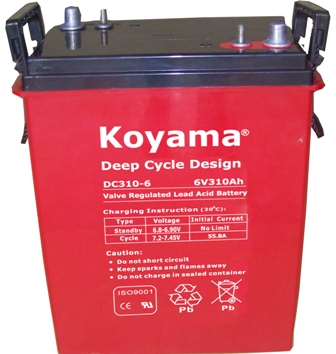

DC310-6DT.pdf 902/J305 6 310 295 178 354 360 46.0 T5/DT
DC330-6DT.pdf 902/J305 6 330 295 178 354 360 46.6 T5/DT
DC380-6DT.pdf L16 6 380 295 178 404 410 55.3 T5/DT
DC420-6DT.pdf L16 6 380 295 178 404 410 56.8 T5/DT
8V DEEP CYCLE AGM BATTERY
DC170-8.pdf GC8H 8 170 260 182 266 271 34.0 T5
DC200-8.pdf GC8H 8 200 260 182 295 301 38.0 T5
12V DEEP CYCLE AGM BATTERY
DC14-12.pdf N/A 12 14 152 99 96 102 3.8 F2
DC18-12T.pdf 12 18 181 77 167 167 5.4 T1/L1
DC20-12T1.pdf N/A 12 20 181 77 167 167 6.0 T1/L1
DC24-12.pdf N/A 12 24 166 175 126 126 8.3 T3
DC26-12.pdf N/A 12 26 165 126 174 174 8.4 T2
DC35-12.pdf U1 12 35 196 130 155 167 10.5 T3
DC40-12.pdf U1L 12 40 198 166 174 174 14.2 T3
DC55-12.pdf 22NF 12 55 229 138 208 212 16 T3
DC70-12.pdf 12 70 350 167 178 178 23.3 T3/AP
DC75-12.pdf 24 12 75 260 169 211 215 25 T3/AP
DC85-12.pdf 24 12 85 260 169 211 215 26.1 T3/AP
DC90-12.pdf 27 12 90 307 169 211 216 28.2 T3/AP
DC100-12AP.pdf 27 12 100 307 169 211 216 30.2 T3/AP

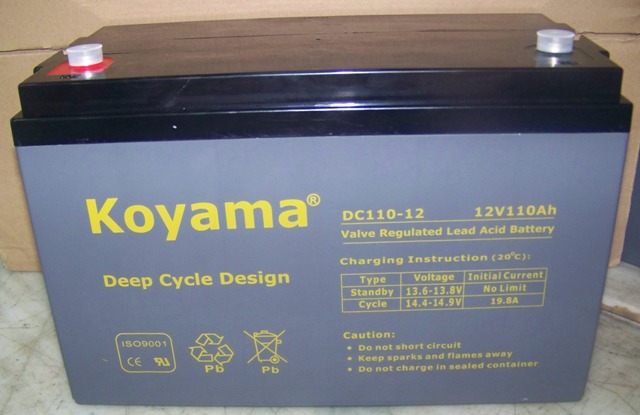

DC110-12.pdf 31 12 110 331 174 214 220 33.3 T4/AP
DC110-12B.pdf 31 12 110 328 172 210 233 32.8 T4/AP
DC120-12.pdf N/A 12 120 407 173 210 233 39.2 T5/AP
DC135-12AP.pdf N/A 12 135 341 173 283 289 40.8 T5/AP
DC150-12.pdf N/A 12 150 484 171 241 241 45.5 T4/AP
DC150-12B.pdf (DIN) 12 150 328 182 267 272 44.2 T5/AP
DC180-12.pdf 4D 12 180 532 206 216 222 56 T5/AP
DC200-12.pdf 4D 12 200 532 206 216 222 58.5 T5/AP
DC220-12.pdf 4D 12 210 522 240 219 225 65 T5/AP
DC240-12.pdf 8D 12 240 520 269 203 209 71.0 T5/AP
DC260-12.pdf 8D 12 260 520 268 220 226 77 T5/AP



• High Power Density

•Thick Plates and High-density

• Superior Deep Cycle Design

• High Power Density

•Thick Plates and High-density Active Material

•Excellent energy storage capacity combined with high reliability

•Designed in accordance with IEC 60254-1

•700 Cycles at 75%DOD

•  Golf car, wheeler, electric vehicle

•  Solar energy/ wind power system

•  electrical tools

•  other power drive equipment, etc

•  Golf/NEV/Utility Vehicles

•  Aerial Work Platforms/Access

•  Floor Machine

• Material Handing

cbb battery terminal 1 cbb battery terminal 2
1.DCG series-Deep Cycle Gel Battery Brochure
