ELECTRIC GOLF CAR/UTILITY DEEP CYCLE BATTERIES

Koyama Golf Battery have two types of agm and gel battery .These batteries are a clean, reliable power source for golf, electric vehicle, floor machine, AWP, RV, marine, mobility, renewable energy and commercial truck applications.

Quantity:
Model No
(Data Sheet)
Industry
 No
Rated Voltage
(V)
Rated Capacity (Ah) Dimension Weight Terminal
Length Width Height Total Height kg pound
 mm inch mm inch  mm inch  mm inch
ELECTRIC GOLF CAR/UTILITY DEEP CYCLE GEL BATTERIES 6-VOLT (3 CELLS)
DCG200-6 N/A 6 200 306 12.05 168 6.61 220 8.66 222 8.74 30.1 66.22 T5/AP
DCG210-6 GC2/T105 6 210 260 10.24 180 7.09 247 9.72 252 9.92 29.6 65.12 T5/AP
DCG220-6 N/A 6 220 306 12.05 168 6.61 220 8.66 222 8.74 31.6 69.52 T5/AP
DCG225-6 (DIN) 6 225 243 9.57 187 7.36 275 10.83 275 10.83 30.6 67.32 T5/AP
DCG226-6 GC2/T105 6 226 260 10.24 180 7.09 247 9.72 252 9.92 30.2 66.44 T5/AP
DCG250-6 GC2/T105 6 226 260 10.24 187 7.36 265 10.43 272 10.71 34.7 76.34 T5/AP
ELECTRIC GOLF CAR/UTILITY DEEP CYCLE GEL BATTERIES 8-VOLT (4 CELLS)
DCG170-8 GC8H 8 170 260 10.24 182 7.17 295 11.61 301 11.85 34.2 75.24 T5
DCG200-8 GC8H 8 200 260 10.24 182 7.17 295 11.61 301 11.85 38.2 84.04 T5
ELECTRIC GOLF CAR/UTILITY DEEP CYCLE GEL  BATTERIES 12-VOLT (6 CELLS)
DCG100-12 27 12 100 307 12.09 169 6.65 211 8.31 216 8.5 30.3 66.66 T4/AP
DCG110-12 31 12 110 331 13.03 174 6.85 214 8.43 220 8.66 33.5 73.7 T5/AP
DCG110-12B 31 12 110 328 12.91 172 6.77 217 8.54 222 8.74 32.8 72.16 T5/AP

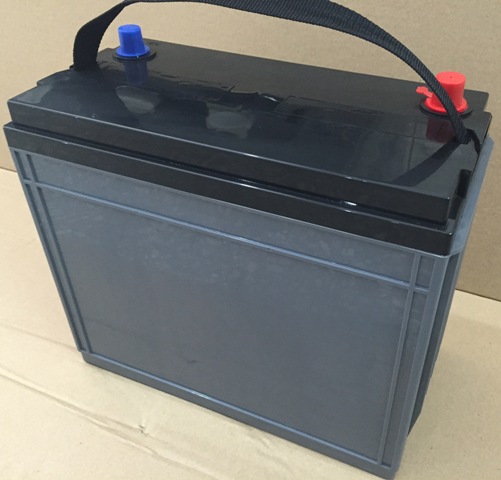

DCG135-12 N/A 12 135 341 13.43 173 6.81 283 11.14 288 11.34 41 90.2 T5/AP
DCG150-12B (DIN) 12 150 338 13.31 182 7.17 267 10.51 272 10.71 44.4 97.68 T5/AP
ELECTRIC GOLF CAR/UTILITY DEEP CYCLE AGM BATTERIES 6-VOLT (3 CELLS)
DC200-6 N/A 6 200 306 12.05 168 6.61 220 8.66 222 8.74 30 66 T5/AP
DC210-6 GC2/T105 6 210 260 10.24 180 7.09 247 9.72 252 9.92 29.5 64.9 T5/AP
DC220-6 N/A 6 220 306 12.05 168 6.61 220 8.66 225 8.86 31.5 69.3 T5/AP
DC225-6 (DIN) 6 225 243 9.57 187 7.36 275 10.83 275 10.83 30.5 67.1 T5/AP
DC226-6 GC2/T105 6 226 260 10.24 180 7.09 247 9.72 252 9.92 30 66 T5/AP
DC250-6 GC2/T105 6 250 260 10.24 180 7.09 265 10.43 272 10.71 34.5 75.9 T5/AP
ELECTRIC GOLF CAR/UTILITY DEEP CYCLE AGM BATTERIES 8-VOLT (4 CELLS)
DC170-8 GC8H 8 170 260 10.24 182 7.17 295 11.61 301 11.85 34 74.8 T5
DC200-8 GC8H 8 200 260 10.24 182 7.17 295 11.61 301 11.85 38 83.6 T5
ELECTRIC GOLF CAR/UTILITY DEEP CYCLE AGM  BATTERIES 12-VOLT (6 CELLS)
DC100-12 27 12 100 307 12.09 169 6.65 211 8.31 216 8.5 30.2 66.44 T3/AP
DC110-12 31 12 110 331 13.03 174 6.85 214 8.43 220 8.66 33.3 73.26 T4/AP
DC110-12B 31 12 110 328 12.91 172 6.77 210 8.27 233 9.17 32.8 72.16 T4/AP
DC135-12 N/A 12 135 341 13.43 173 6.81 283 11.14 289 11.38 40.8 89.76 T5/AP
DC150-12B (DIN) 12 150 338 13.31 182 7.17 267 10.51 272 10.71 44.2 97.24 T5/AP


-Longer Cycle Service Life
• Deep Cycle (high-density active material and thick plates) design & special 4BS lead  • paste technology prolongs the cycle service life-
 -Excellent Discharging Ability
• Radial grid design & tight assembly technology ensures an excellent high-rate discharge        performance
- Excellent Deep Cycle Ability
• Unique grid alloys & special positive/negative lead paste formulations makes the battery • perform excellent in deep cycle using and recover quickly upon over discharging and extend the float service life
-Low Self Discharge
• Using high purity raw materials ensures the battery has less self-discharge.
- Environmental & Non-polluting
• Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
-Safe & Reliable
• Efficient venting system automatically release excess gas when the pressure rises above  the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.

• Golf cart.

• Electric sightseeing car.

• Electric vehicle.

• Electric scooter.

• Marine.

• Solar.

• Electric forklift.

• Portable Medical device.

• Scraper.

• Wheelchair

cbb battery terminal 1 cbb battery terminal 2
1.DCG series-Deep Cycle Gel Battery Brochure
