KOYAMA NPF (Front Access) Series Battery is especially designed for telecommunication use with 10+ years design life in float service. By combining the newly developed paste formula with up-to-date AGM structures, this range features 12 years design life and Front Access connection for fast, easy installation and maintenance. This series is highly suited for telecom applications, UPS systems and other back up applications.
Quantity: | |
---|---|

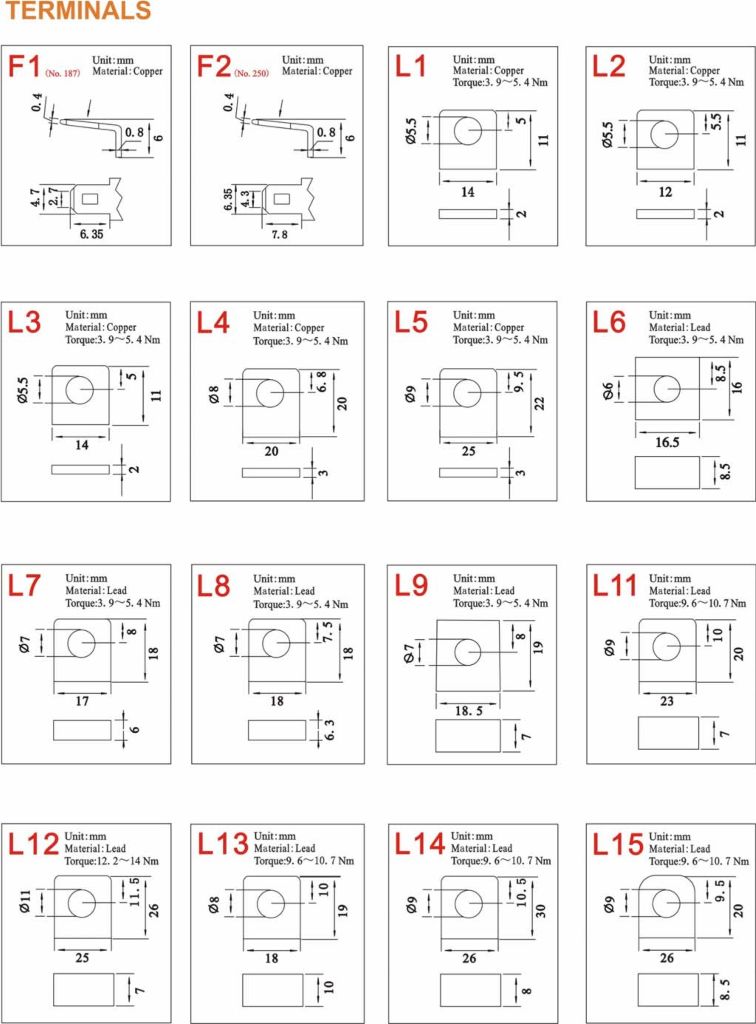

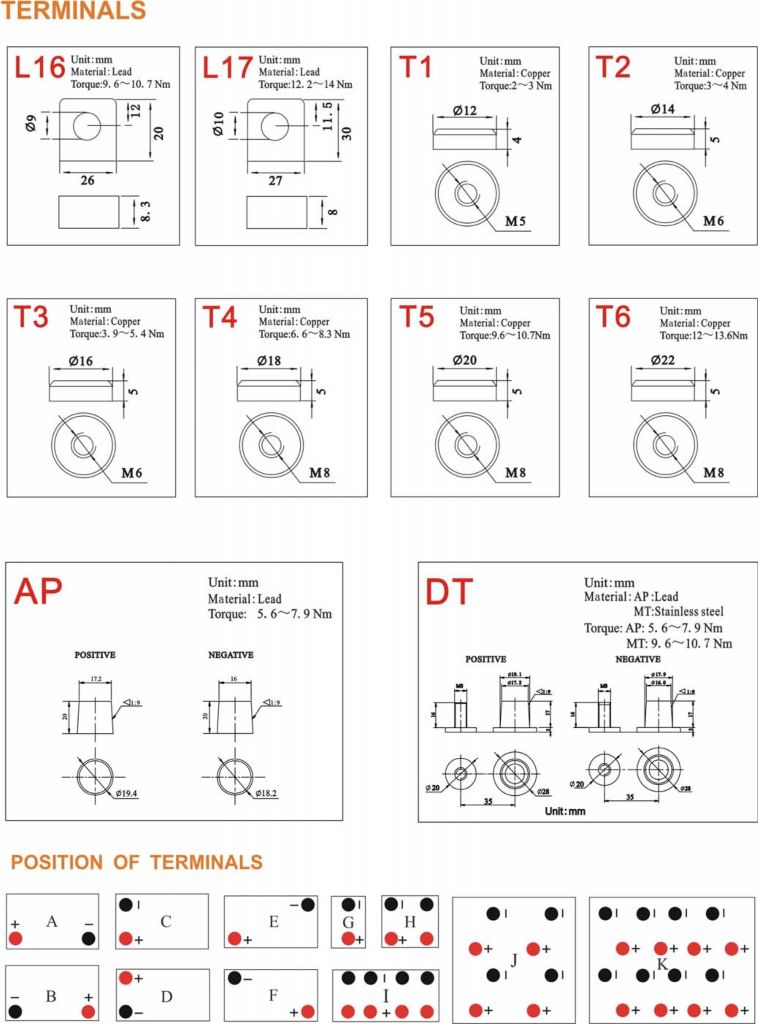

Model No | Rated Voltage (V) | Capacity (Ah) | Dimension | Weight | Terminal Type | |||
Length | Width | Height | Total Height | kg | ||||
mm | mm | mm | mm | |||||
12 | 55 | 277 | 106 | 223 | 223 | 16.0 | T2 | |
12 | 80 | 562 | 114 | 188 | 188 | 25.0 | T3 | |
12 | 100 | 507 | 110 | 223 | 228 | 29.4 | T5 | |
12 | 110 | 394 | 110 | 286 | 286 | 30.5 | T5 | |
12 | 125 | 552 | 110 | 239 | 239 | 38.0 | T5 | |
12 | 150 | 551 | 110 | 288 | 288 | 45.0 | T5 | |
12 | 155 | 560 | 125 | 280 | 280 | 45.2 | T5 | |
12 | 160 | 551 | 110 | 288 | 288 | 45.5 | T5 | |
12 | 175 | 546 | 125 | 316 | 324 | 53.5 | T5 | |
12 | 180 | 560 | 125 | 316 | 316 | 54.0 | T5 | |
12 | 190 | 560 | 125 | 316 | 316 | 55.8 | T5 | |
12 | 200 | 560 | 125 | 316 | 316 | 57.0 | T5 |
• 12 years design life at floating condition
• Wide operating temperature range from -15°C to 55°C
• Advanced paste formula with increased recharge efficiency
• Front access terminal with standard width for 19” and 23” ETSI racks
• 30% decreased float current lead to excellent high temperature resistance
• Thick flat plate with high Tin low Calcium alloy
• Low self-discharge rate
• Excellent deep discharge recovery capability
-Low self-discharge rate
-Excellent deep discharge recovery capability
• 19" and 23" standard power cabinet
• communication system, microwave station, mobile base station, data center,
radio / broadcasting station
• Power system of special network or local area network
• Emergency lighting and signal system
• UPS, Standby power, etc
