FLOOR SCRUBBER COMMERCIAL DEEP CYCLE BATTERIES

Model No （Data Sheet)	Industry No	Rated Voltage （V）	Rated Capacity (Ah)	Dimension								Weight		Terminal Type
				Length		Width		Height		Total Height		kg	pound
				mm	inch	mm	inch	mm	inch	mm	inch	kg	pound
FLOOR SCRUBBER COMMERCIAL BATTERIES (DEEP CYCLE GEL) 6-VOLT (3 CELLS)

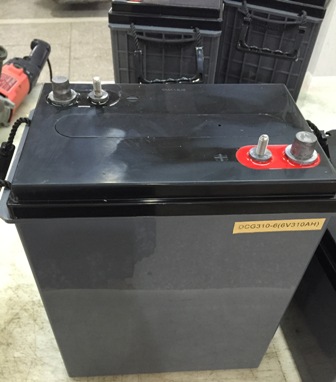

DCG310-6	902/J305	6	310/20HR	295	11.61	178	7.01	354	13.94	360	14.17	46.2	101.64	T5/DT
DCG330-6	902/J305	6	330/20HR	295	11.61	178	7.01	354	13.94	360	14.17	46.8	102.96	T5/DT
DCG380-6	L16	6	380/20HR	295	11.61	178	7.01	404	15.91	410	16.14	55.5	122.1	T5/DT
DCG420-6	L16	6	420/20HR	295	11.61	178	7.01	404	15.91	410	16.14	57	125.4	T5/DT
FLOOR SCRUBBER COMMERCIAL BATTERIES (DEEP CYCLE GEL) 12-VOLT (6 CELLS)
DCG135-12	N/A	12	135/20HR	341	13.43	173	6.81	283	11.14	288	11.34	41	90.2	T5/AP
DCG150-12B	(DIN)	12	150/20HR	338	13.31	182	7.17	267	10.51	272	10.71	44.4	97.68	T5/AP
FLOOR SCRUBBER COMMERCIAL BATTERIES (DEEP CYCLE AGM) 6-VOLT (3 CELLS)
DC310-6	902/J305	6	310/20HR	295	11.61	178	7.01	354	13.94	360	14.17	46	101.2	T5/DT
DC330-6	902/J305	6	330/20HR	295	11.61	178	7.01	354	13.94	360	14.17	46.6	102.52	T5/DT
DC380-6	L16	6	380/20HR	295	11.61	178	7.01	404	15.91	410	16.14	55.3	121.66	T5/DT
DC420-6	L16	6	380/20HR	295	11.61	178	7.01	404	15.91	410	16.14	56.8	124.96	T5/DT
FLOOR SCRUBBER COMMERCIAL BATTERIES (DEEP CYCLE AGM) 12-VOLT (6 CELLS)
DC135-12	N/A	12	135/20HR	341	13.43	173	6.81	283	11.14	289	11.38	40.8	89.76	T5/AP
DC150-12B	(DIN)	12	150/20HR	338	13.31	182	7.17	267	10.51	272	10.71	44.2	97.24	T5/AP

High capacity design, higher energy density.
Excellent deep cycle property, Longer service life .
Private grid construction design and paste recipe,high charging acceptance ability.
Private valve regulated seal construction, safe and reliable.
Outstanding vibration-resistant, wide operation temperature.
AGM separator, no fluid electrolyte, guarantees oxygen recombination inside the battery.
High purity lead calcium alloy, maintenance free and lesswater losing.
Lower self-discharge, better storage capability.
Advanced inter partition (TTP) welding technology obtains shorter current transfer path so as to get lower electrical resistance.
Strength-enhanced containers and lids are made of polypropylene (PP) to keep tight assembly of batteries.
Adopt heat sealing technology to seal container and lid, absolutely no leakage.
High strength terminals with high conductivity are very good at high current discharging.
Strength-enhanced containers and lids are impact resistant and made of polypropylene (PP).
Attached protective covers for terminals and removable carry handles are convenient for operation.

•Sweeper,Floor Machine,scrubbers

•Electric Utilities

•Photovoltaic Systems

•Renewable Energy Systems

1.DCG series-Deep Cycle Gel Battery Brochure
