12-VOLT MOTORCYCLE FACTORY ACTIVATED SEALED BATTERY - VRLA (Valve Regulated lead Acid) | |||||||||
Model No. | Intel Model No | Rated Voltage | 20h Rated Capacity | Overall Dimension (mm) | Terminal Type | Approx. Weight (㎏) | Data Sheet | ||
(V) | Ah | L | W | H | kgs | ||||
6N4-BS(MF) | 6N4-BS | 6 | 4 | 70 | 84 | 93 | / | 0.77 | |
6N6L-BS(MF) | 6N6L-BS | 6 | 6 | 98 | 56 | 116 | 6 | 1.18 | |
6N11A-BS(MF) | 6N11A-BS | 6 | 11 | 121 | 58 | 130 | 6 | 1.7 | |
YB2.5L-BS(MF) | YB2.5L-BS | 12 | 2.5 | 81 | 71 | 105 | / | 1.1 | |
YB3L-BS(MF) | YB3L-BS/YTX3L-BS | 12 | 3 | 100 | 58 | 105 | 6 | 1.2 | |
YB4L-BS(MF) | YB4L-BS | 12 | 4 | 113 | 70 | 85 | 11 | 1.4 | |
YB5L-BS(MF) | 12N5L-BS | 12 | 5 | 119 | 60 | 129 | 6 | 1.82 | |
YB6.5L-BS(MF) | 12N6.5L-BS | 12 | 6.5 | 139 | 65 | 100 | 6 | 2.05 | |

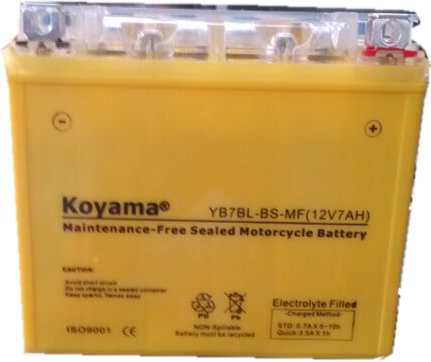

YB7BL-BS(MF) | 12N7BL-BS | 12 | 7 | 148 | 60 | 128 | 6 | 2.23 | |
YB7B-BS(MF) | 12N7B-BS | 12 | 7 | 148 | 60 | 128 | 6 | 2.44 | |
YB7-BS(MF) | 12N7-BS | 12 | 7 | 137 | 76 | 124 | 6 | 2.6 | |
YB7L-BS(MF) | 12N7L-BS | 12 | 7 | 137 | 76 | 124 | 6 | 2.6 | |
YB9-BS(MF) | 12N9-BS | 12 | 9 | 137 | 77 | 135 | 6 | 2.8 | |
YB10L-BS(MF) | YB10L-BS | 12 | 11 | 132 | 88 | 145 | 11 | 3.5 | |
YB12A-BS(MF) | YB12A-BS | 12 | 12 | 134 | 80 | 160 | 11 | 3.65 | |
YB14L-BS(MF) | YB14L-BS | 12 | 14 | 134 | 89 | 166 | 11 | 4.7 | |
YB16L-BS(MF) | YB16L-BS | 12 | 19 | 175 | 100 | 155 | 11 | 5.8 | |
Y50-N18L-BS(MF) | Y50-N18L-BS | 12 | 20 | 205 | 90 | 159 | 11 | 6.3 | |
YTX24HL-BS(MF) | YTX24HL-BS | 12 | 21 | 205 | 90 | 159 | 11 | 6.3 | |
U1-7(MF) | U1-7 | 12 | 19 | 195 | 128 | 157 | 11 | 6.8 | |
U1-9(MF) | U1-9 | 12 | 25 | 195 | 128 | 157 | 11 | 7.8 | |
U1-11(MF) | U1-11 | 12 | 32 | 195 | 128 | 157 | 11 | 9.2 | |
YT4L-BS(MF) | 12 | 3 | 114 | 71 | 86 | 5 | 1.38 | ||
YTX4L-BS(MF) | 12 | 3 | 5 | 1.49 | |||||
12GS-4.5(MF) | 12 | 4.5 | 90 | 70 | 102/108 | 10 | 1.2 | ||
YT5L-BS(MF) | 12 | 5 | 114 | 71 | 106 | 5 | 1.72 | ||
YTX5L-BS(MF) | 12 | 5 | 5 | 1.76 | |||||
YTX7L-BS(MF) | 12 | 6 | 114 | 71 | 131 | 5 | 2.25 | ||

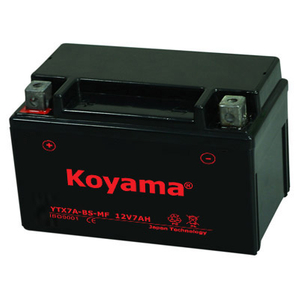

YTX7A-BS(MF) | 12 | 6 | 152 | 88 | 94 | 11 | 2.52 | ||

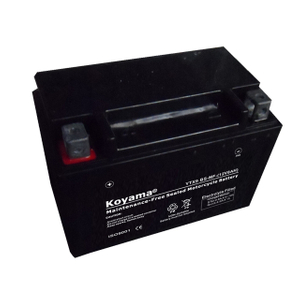

YTX9-BS(MF) | 12 | 8 | 152 | 88 | 106 | 11 | 3.03 | ||
YTX12A-BS(MF) | 12 | 9.5 | 152 | 88 | 106 | 11 | 3.1 | ||
YTX12-BS(MF) | 12 | 10 | 152 | 88 | 131 | 11 | 3.72 | ||
YTX14-BS(MF) | 12 | 12 | 152 | 88 | 147 | 11 | 3.7 | ||
YTX16-BS(MF) | 12 | 14 | 150 | 87 | 161 | 11 | 5.38 | ||

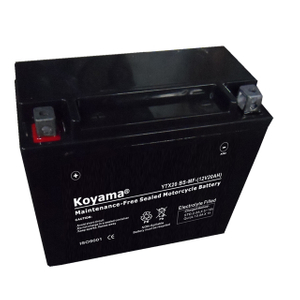

YTX20-BS(MF) | 12 | 18 | 175 | 87 | 155 | 11 | 6.4 | ||
YTX20L-BS(MF) | 12 | 18 | 175 | 87 | 155 | 11 | 6.4 | ||
YTX30L-BS(MF) | 12V | 30 | 166 | 126 | 175 | 4 | 9.2 | ||
GT4B-5(MF) | 12 | 2.3 | 114 | 39 | 87 | 13 | 0.85 | ||
YTR4A-BS(MF) | 12 | 2.3 | 114 | 49 | 87 | 13 | 0.98 | ||
YTZ3S(MF) | 12 | 3.5 | 113 | 70 | 85 | 12 | 1.37 | ||
YTZ5S(MF) | 12 | 4 | 113 | 70 | 85 | 12 | 1.48 | ||
YTZ7S(MF) | 12 | 6 | 113 | 70 | 108 | 11 | 2.1 | ||
YTZ10S(MF) | 12 | 8.6 | 150 | 87 | 94 | 11 | 3 | ||
YTZ12S(MF) | 12 | 11 | 150 | 87 | 110 | 11 | 3.2 | ||
YTZ14S(MF) | 12 | 12 | 150 | 87 | 110 | 11 | 3.2 | ||
YT6B-3(MF) | 12 | 6 | 113 | 70 | 108 | 11 | 2 | ||
YT7B-4(MF) | 12 | 7 | 150 | 65 | 94 | 11 | 2.1 | ||
YT9B-4(MF) | 12 | 9 | 150 | 70 | 105 | 11 | 2.7 | ||
YT12B-4(MF) | 12 | 10 | 150 | 70 | 130 | 11 | 3.2 | ||

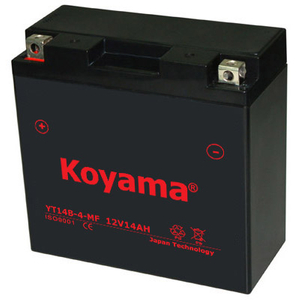

YT14B-4(MF) | 12 | 12 | 150 | 70 | 145 | 11 | 3.7 | ||
YT20-4(MF) | 12 | 18 | 175 | 87 | 155 | 11 | 6.4 |
12-VOLT MOTORCYCLE FACTORY ACTIVATED SEALED BATTERY - VRLA (Valve Regulated lead Acid) | |||||||||
Model No. | Intel Model No | Rated Voltage | 20h Rated Capacity | Overall Dimension (mm) | Terminal Type | Approx. Weight (㎏) | Data Sheet | ||
(V) | Ah | L | W | H | kgs | ||||
6N4-BS(MF) | 6N4-BS | 6 | 4 | 70 | 84 | 93 | / | 0.77 | |
6N6L-BS(MF) | 6N6L-BS | 6 | 6 | 98 | 56 | 116 | 6 | 1.18 | |
6N11A-BS(MF) | 6N11A-BS | 6 | 11 | 121 | 58 | 130 | 6 | 1.7 | |
YB2.5L-BS(MF) | YB2.5L-BS | 12 | 2.5 | 81 | 71 | 105 | / | 1.1 | |
YB3L-BS(MF) | YB3L-BS/YTX3L-BS | 12 | 3 | 100 | 58 | 105 | 6 | 1.2 | |
YB4L-BS(MF) | YB4L-BS | 12 | 4 | 113 | 70 | 85 | 11 | 1.4 | |
YB5L-BS(MF) | 12N5L-BS | 12 | 5 | 119 | 60 | 129 | 6 | 1.82 | |
YB6.5L-BS(MF) | 12N6.5L-BS | 12 | 6.5 | 139 | 65 | 100 | 6 | 2.05 | |
YB7BL-BS(MF) | 12N7BL-BS | 12 | 7 | 148 | 60 | 128 | 6 | 2.23 | |
YB7B-BS(MF) | 12N7B-BS | 12 | 7 | 148 | 60 | 128 | 6 | 2.44 | |
YB7-BS(MF) | 12N7-BS | 12 | 7 | 137 | 76 | 124 | 6 | 2.6 | |
YB7L-BS(MF) | 12N7L-BS | 12 | 7 | 137 | 76 | 124 | 6 | 2.6 | |
YB9-BS(MF) | 12N9-BS | 12 | 9 | 137 | 77 | 135 | 6 | 2.8 | |
YB10L-BS(MF) | YB10L-BS | 12 | 11 | 132 | 88 | 145 | 11 | 3.5 | |
YB12A-BS(MF) | YB12A-BS | 12 | 12 | 134 | 80 | 160 | 11 | 3.65 | |
YB14L-BS(MF) | YB14L-BS | 12 | 14 | 134 | 89 | 166 | 11 | 4.7 | |
YB16L-BS(MF) | YB16L-BS | 12 | 19 | 175 | 100 | 155 | 11 | 5.8 | |
Y50-N18L-BS(MF) | Y50-N18L-BS | 12 | 20 | 205 | 90 | 159 | 11 | 6.3 | |
YTX24HL-BS(MF) | YTX24HL-BS | 12 | 21 | 205 | 90 | 159 | 11 | 6.3 | |
U1-7(MF) | U1-7 | 12 | 19 | 195 | 128 | 157 | 11 | 6.8 | |
U1-9(MF) | U1-9 | 12 | 25 | 195 | 128 | 157 | 11 | 7.8 | |
U1-11(MF) | U1-11 | 12 | 32 | 195 | 128 | 157 | 11 | 9.2 | |
YT4L-BS(MF) | 12 | 3 | 114 | 71 | 86 | 5 | 1.38 | ||
YTX4L-BS(MF) | 12 | 3 | 5 | 1.49 | |||||
12GS-4.5(MF) | 12 | 4.5 | 90 | 70 | 102/108 | 10 | 1.2 | ||
YT5L-BS(MF) | 12 | 5 | 114 | 71 | 106 | 5 | 1.72 | ||
YTX5L-BS(MF) | 12 | 5 | 5 | 1.76 | |||||
YTX7L-BS(MF) | 12 | 6 | 114 | 71 | 131 | 5 | 2.25 | ||
YTX7A-BS(MF) | 12 | 6 | 152 | 88 | 94 | 11 | 2.52 | ||
YTX9-BS(MF) | 12 | 8 | 152 | 88 | 106 | 11 | 3.03 | ||
YTX12A-BS(MF) | 12 | 9.5 | 152 | 88 | 106 | 11 | 3.1 | ||
YTX12-BS(MF) | 12 | 10 | 152 | 88 | 131 | 11 | 3.72 | ||
YTX14-BS(MF) | 12 | 12 | 152 | 88 | 147 | 11 | 3.7 | ||
YTX16-BS(MF) | 12 | 14 | 150 | 87 | 161 | 11 | 5.38 | ||
YTX20-BS(MF) | 12 | 18 | 175 | 87 | 155 | 11 | 6.4 | ||
YTX20L-BS(MF) | 12 | 18 | 175 | 87 | 155 | 11 | 6.4 | ||
YTX30L-BS(MF) | 12V | 30 | 166 | 126 | 175 | 4 | 9.2 | ||
GT4B-5(MF) | 12 | 2.3 | 114 | 39 | 87 | 13 | 0.85 | ||
YTR4A-BS(MF) | 12 | 2.3 | 114 | 49 | 87 | 13 | 0.98 | ||
YTZ3S(MF) | 12 | 3.5 | 113 | 70 | 85 | 12 | 1.37 | ||
YTZ5S(MF) | 12 | 4 | 113 | 70 | 85 | 12 | 1.48 | ||
YTZ7S(MF) | 12 | 6 | 113 | 70 | 108 | 11 | 2.1 | ||
YTZ10S(MF) | 12 | 8.6 | 150 | 87 | 94 | 11 | 3 | ||
YTZ12S(MF) | 12 | 11 | 150 | 87 | 110 | 11 | 3.2 | ||
YTZ14S(MF) | 12 | 12 | 150 | 87 | 110 | 11 | 3.2 | ||
YT6B-3(MF) | 12 | 6 | 113 | 70 | 108 | 11 | 2 | ||
YT7B-4(MF) | 12 | 7 | 150 | 65 | 94 | 11 | 2.1 | ||
YT9B-4(MF) | 12 | 9 | 150 | 70 | 105 | 11 | 2.7 | ||
YT12B-4(MF) | 12 | 10 | 150 | 70 | 130 | 11 | 3.2 | ||
YT14B-4(MF) | 12 | 12 | 150 | 70 | 145 | 11 | 3.7 | ||
YT20-4(MF) | 12 | 18 | 175 | 87 | 155 | 11 | 6.4 |
•Motorcycle
•European & Other Motorcycle
•All terrian
•Water Craft
•Snow Mobiles
• Utility vehicle
• ATV
• Jetski
• Lawn& Garden
• Scooter
•Motorcycle
•European & Other Motorcycle
•All terrian
•Water Craft
•Snow Mobiles
• Utility vehicle
• ATV
• Jetski
• Lawn& Garden
• Scooter
