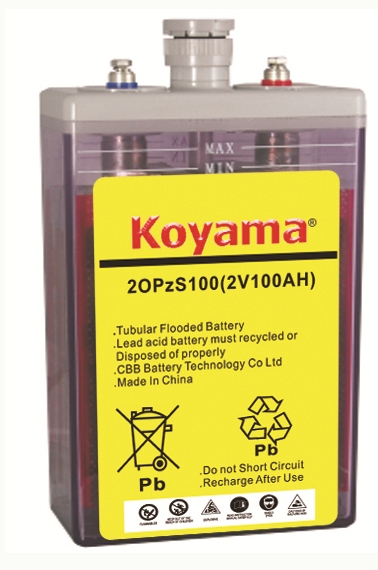

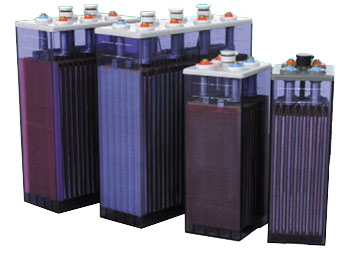

Flooded OPZS Battery

KOYAMA OPzS battery is a traditional tubular plate flooded battery which offers 20 years design life with a cycle life of 1800 cycles at 80% DOD according to IEC60896-11.This range is most suited for all standby power applications that require the highest levels of reliability and security.

  • Battery Type : Flooded tubular 2V
  • design life : 15-20years
  • Volate: 2V
  • Capacity: 100-3000ah
  • applications: solar ,telecommunication ,standby
Quantity:
Model No
(Data Sheet)
Rated Voltage
(V)
Rated Capacity
(Ah)
Dimension (mm/in) Weight Terminal
Length Width Height Total Height
mm in mm in mm in mm in Kg lbs
2 OPzS100 2 100/10HR 103 4.06 206 8.11 355 13.98 410 16.14 8.1 17.82 T5
3 OPzS150 2 150/10HR 103 4.06 206 8.11 355 13.98 410 16.14 10.8 23.76 T5
4 OPzS200 2 200/10HR 103 4.06 206 8.11 355 13.98 410 16.14 12.9 28.38 T5
5 OPzS250 2 250/10HR 124 4.88 206 8.11 355 13.98 410 16.14 15.4 33.88 T5
6 OPzS300 2 300/10HR 145 5.71 206 8.11 355 13.98 410 16.14 18.5 40.7 T5
5 OPzS350 2 350/10HR 124 4.88 206 8.11 471 18.54 526 20.71 21 46.2 T5
6 OPzS420 2 420/10HR 145 5.71 206 8.11 471 18.54 526 20.71 24.5 53.9 T5
7 OPzS490 2 490/10HR 166 6.54 206 8.11 471 18.54 526 20.71 28.2 62.04 T5
6 OPzS600 2 600/10HR 145 5.71 206 8.11 646 25.43 701 27.60 33.4 73.48 T5
8 OPzS800 2 800/10HR 191 7.52 210 8.27 646 25.43 701 27.60 46.9 103.18 T5
10 OPzS1000 2 1000/10HR 233 9.17 210 8.27 646 25.43 701 27.60 57.4 126.28 T5
12 OPzS1200 2 1200/10HR 275 10.83 210 8.27 646 25.43 701 27.60 67.7 148.94 T5
12 OPzS1500 2 1500/10HR 275 10.83 210 8.27 796 31.34 851 33.50 83.8 184.36 T5
16 OPzS2000 2 2000/10HR 399 15.71 214 8.43 772 30.39 827 32.56 110 242 T5
20 OPzS2500 2 2500/10HR 487 19.17 212 8.35 772 30.39 827 32.56 139.4 306.68 T5
24 OPzS3000 2 3000/10HR 576 22.68 212 8.35 772 30.39 827 32.56 164.8 362.56 T5

• 20 years design life at floating condition @ 20 °C

• Tubular positive plate with prolonged cycle life

• High operational reliability

• Lead calcium die cast grid with improved corrosion resistance capability

• Dry charged package and delivery ensure longer shelf life

• Explosive-proof with special designed vented plug

•Telecom

•Electric Utilities

•Control Equipments

•Security Systems

•Medical Equipments

•UPS systems

•Railroad Utilities

•Photovoltaic Systems

•Renewable Energy Systems
