12Volt High Performance (YB) Motorcycle Battery | Data Sheet | ||||||||
Battery model | voltage | capacity | (mm) dimensions | terminal | weight (kgs) | ||||
V | Ah | L | W | H | type | With Acid | Acid | ||
YB2.5L-C | 12 | 2.5 | 81 | 71 | 106 | line | 1.05 | 0.3 | |
YB2.5L-C-1* | 12 | 2.5 | line | 1.05 | 0.3 | ||||
YB2.5L-C-2* | 12 | 2.5 | line | 1.05 | 0.3 | ||||
YB3L-A | 12 | 3 | 99 | 57 | 111 | 6 | 1.25 | 0.35 | |
YB3L-B | 12 | 3 | 6 | 1.25 | 0.35 | ||||
YB4L-A | 12 | 4 | 121 | 71 | 93 | 5 | 1.6 | 0.42 | |
YB4L-B | 12 | 4 | 5 | 1.6 | 0.42 | ||||
YB5L-B | 12 | 5 | 121 | 62 | 131 | 6 | 2 | 0.5 | |
YB6L-B | 12 | 5.5(6) | 137 | 72 | 95 | B | 2 | 0.58 | |
YB6-A | 12 | 5.5(6) | B | 2 | 0.58 | ||||
YB6-B | 12 | 5.5(6) | B | 2 | 0.58 | ||||
YB6.5L-B | 12 | 6/6.5 | 137 | 64 | 107 | B | 1.8 | 0.42 | |
YB7-A | 12 | 8 | 137 | 77 | 135 | 6 | 2.6 | 0.7 | |
YB7L-B | 12 | 8 | 6 | 2.6 | 0.7 | ||||
YB7B-B | 12 | 8 | 150 | 61 | 130 | 6 | 2.5 | 0.6 | |
YB7C-A | 12 | 8 | 130 | 90 | 114 | 3 | 2.8 | 0.65 | |
YB9-B | 12 | 9 | 137 | 76 | 140 | 6 | 3 | 0.75 | |
YB9L-B | 12 | 9 | 6 | 3 | 0.75 | ||||
YB9L-A2 | 12 | 9 | 2 | 3 | 0.75 | ||||
YB9A-A | 12 | 9 | 6 | 3 | 0.75 | ||||
YB10L-A2 | 12 | 11 | 136 | 91 | 156 | 8 | 3.8 | 1 | |
YB10L-B | 12 | 11 | 6 | 3.8 | 1 | ||||
YB10L-B2 | 12 | 11 | 8 | 3.8 | 1 | ||||
YB10A-A2 | 12 | 11 | 8 | 3.8 | 1 | ||||
YB12A-A | 12 | 12 | 135 | 81 | 161 | 6 | 3.8 | 1 | |
YB12A-B | 12 | 12 | 6 | 3.8 | 1 | ||||
YB12AL-A* | 12 | 12 | 6 | 3.8 | 1 | ||||
YB12AL-A2* | 12 | 12 | 8 | 3.8 | 1 | ||||
YB12B-B2 | 12 | 12 | 161 | 91 | 132 | 8 | 3.95 | 1 | |
YB12C-A | 12 | 12 | 135 | 81 | 175 | 4 | 3.8 | 1 | |
YB14-A2 | 12 | 14 | 135 | 90 | 165 | 8 | 4.65 | 1.4 | |
YB14-B2 | 12 | 14 | 8 | 4.65 | 1.4 | ||||
YB14L-A | 12 | 14 | 8 | 4.65 | 1.4 | ||||
YB14L-A1 | 12 | 14 | 1 | 4.65 | 1.4 | ||||
YB14L-A2 | 12 | 14 | 8 | 4.65 | 1.4 | ||||
YB14L-B2 | 12 | 14 | 8 | 4.65 | 1.4 | ||||
SYB14L-A2(sensor)* | 12 | 14 | 8 | 4.65 | 1.4 | ||||
SYB14L-B2(sensor)* | 12 | 14 | 8 | 4.65 | 1.4 | ||||
YB14A-A1 | 12 | 14 | 135 | 91 | 176 | 6 | 3.6 | 1.1 | |
YB14A-A2 | 12 | 14 | 8 | 3.6 | 1.1 | ||||
YB16-B | 12 | 19 | 176 | 100 | 155 | 6 | 5.5 | 1.5 | |
YB16L-B | 12 | 19 | 6 | 5.5 | 1.5 | ||||
YB16L-A2 | 12 | 16 | 205 | 70 | 161 | 2 | 5.4 | 1.4 | |
YB16B-A | 12 | 16 | 162 | 92 | 162 | 4 | 5.75 | 1.55 | |
YB16B-A1 | 12 | 16 | 7 | 5.75 | 1.55 | ||||
YB16AL-A2 | 12 | 16 | 205 | 71 | 164 | 2 | 5.4 | 1.4 | |
SYB16AL-A2(sensor)* | 12 | 16 | 6 | 5.4 | 1.4 | ||||
7 | 12 | 16 | 151 | 91 | 182 | 7 | 7.1 | 1.5 | |

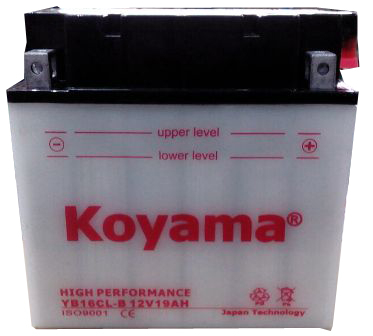

YB16CL-B | 12 | 19 | 175 | 100 | 175 | 5 | 5.8 | 1.55 | |
YB18-A | 12 | 18 | 182 | 92 | 164 | 7 | 6.1 | 1.5 | |
YB18L-A | 12 | 18 | 7 | 6.1 | 1.5 | ||||
YB18L-A2* | 12 | 18 | 7 | 6.6 | 2.1 | ||||
Y50-N18L-A | 12 | 20 | 206 | 91 | 161 | 7 | 6.5 | 2.05 | |
Y50-N18L-A2* | 12 | 20 | 7 | 6.5 | 2.05 | ||||
Y50-N18L-A3 | 12 | 20 | 4 | 6.5 | 2.05 | ||||
SY50-N18L-A(sensor)* | 12 | 20 | 7 | 6.5 | 2.05 | ||||
SY50-N18L-A2(sensor) | 12 | 20 | 7 | 6.5 | 2.05 | ||||
SY50-N18L-AT(sensor) | 12 | 20 | 7 | 6.5 | 2.05 | ||||
Y50-N18A-A | 12 | 20 | 206 | 91 | 177 | 7 | 6.6 | 2.1 | |
Y60-N24L-A | 12 | 28 | 3 | 8.35 | 2.3 | ||||
Y60-N24AL-B | 12 | 28 | 3 | 8.35 | 2.3 | ||||
SY60-N24AL-B(sensor) | 12 | 28 | 4 | 8.35 | 2.3 | ||||
Y60-N28L-A | 12 | 28 | 186 | 130 | 170 | 4 | 8.35 | 2.3 | |
Y60-N30L-A | 12 | 30 | 4 | 8.9 | 2.3 | ||||
Y60-N30-A | 12 | 30 | 4 | 8.9 | 2.3 |
12Volt High Performance (YB) Motorcycle Battery | Data Sheet | ||||||||
Battery model | voltage | capacity | (mm) dimensions | terminal | weight (kgs) | ||||
V | Ah | L | W | H | type | With Acid | Acid | ||
YB2.5L-C | 12 | 2.5 | 81 | 71 | 106 | line | 1.05 | 0.3 | |
YB2.5L-C-1* | 12 | 2.5 | line | 1.05 | 0.3 | ||||
YB2.5L-C-2* | 12 | 2.5 | line | 1.05 | 0.3 | ||||
YB3L-A | 12 | 3 | 99 | 57 | 111 | 6 | 1.25 | 0.35 | |
YB3L-B | 12 | 3 | 6 | 1.25 | 0.35 | ||||
YB4L-A | 12 | 4 | 121 | 71 | 93 | 5 | 1.6 | 0.42 | |
YB4L-B | 12 | 4 | 5 | 1.6 | 0.42 | ||||
YB5L-B | 12 | 5 | 121 | 62 | 131 | 6 | 2 | 0.5 | |
YB6L-B | 12 | 5.5(6) | 137 | 72 | 95 | B | 2 | 0.58 | |
YB6-A | 12 | 5.5(6) | B | 2 | 0.58 | ||||
YB6-B | 12 | 5.5(6) | B | 2 | 0.58 | ||||
YB6.5L-B | 12 | 6/6.5 | 137 | 64 | 107 | B | 1.8 | 0.42 | |
YB7-A | 12 | 8 | 137 | 77 | 135 | 6 | 2.6 | 0.7 | |
YB7L-B | 12 | 8 | 6 | 2.6 | 0.7 | ||||
YB7B-B | 12 | 8 | 150 | 61 | 130 | 6 | 2.5 | 0.6 | |
YB7C-A | 12 | 8 | 130 | 90 | 114 | 3 | 2.8 | 0.65 | |
YB9-B | 12 | 9 | 137 | 76 | 140 | 6 | 3 | 0.75 | |
YB9L-B | 12 | 9 | 6 | 3 | 0.75 | ||||
YB9L-A2 | 12 | 9 | 2 | 3 | 0.75 | ||||
YB9A-A | 12 | 9 | 6 | 3 | 0.75 | ||||
YB10L-A2 | 12 | 11 | 136 | 91 | 156 | 8 | 3.8 | 1 | |
YB10L-B | 12 | 11 | 6 | 3.8 | 1 | ||||
YB10L-B2 | 12 | 11 | 8 | 3.8 | 1 | ||||
YB10A-A2 | 12 | 11 | 8 | 3.8 | 1 | ||||
YB12A-A | 12 | 12 | 135 | 81 | 161 | 6 | 3.8 | 1 | |
YB12A-B | 12 | 12 | 6 | 3.8 | 1 | ||||
YB12AL-A* | 12 | 12 | 6 | 3.8 | 1 | ||||
YB12AL-A2* | 12 | 12 | 8 | 3.8 | 1 | ||||
YB12B-B2 | 12 | 12 | 161 | 91 | 132 | 8 | 3.95 | 1 | |
YB12C-A | 12 | 12 | 135 | 81 | 175 | 4 | 3.8 | 1 | |
YB14-A2 | 12 | 14 | 135 | 90 | 165 | 8 | 4.65 | 1.4 | |
YB14-B2 | 12 | 14 | 8 | 4.65 | 1.4 | ||||
YB14L-A | 12 | 14 | 8 | 4.65 | 1.4 | ||||
YB14L-A1 | 12 | 14 | 1 | 4.65 | 1.4 | ||||
YB14L-A2 | 12 | 14 | 8 | 4.65 | 1.4 | ||||
YB14L-B2 | 12 | 14 | 8 | 4.65 | 1.4 | ||||
SYB14L-A2(sensor)* | 12 | 14 | 8 | 4.65 | 1.4 | ||||
SYB14L-B2(sensor)* | 12 | 14 | 8 | 4.65 | 1.4 | ||||
YB14A-A1 | 12 | 14 | 135 | 91 | 176 | 6 | 3.6 | 1.1 | |
YB14A-A2 | 12 | 14 | 8 | 3.6 | 1.1 | ||||
YB16-B | 12 | 19 | 176 | 100 | 155 | 6 | 5.5 | 1.5 | |
YB16L-B | 12 | 19 | 6 | 5.5 | 1.5 | ||||
YB16L-A2 | 12 | 16 | 205 | 70 | 161 | 2 | 5.4 | 1.4 | |
YB16B-A | 12 | 16 | 162 | 92 | 162 | 4 | 5.75 | 1.55 | |
YB16B-A1 | 12 | 16 | 7 | 5.75 | 1.55 | ||||
YB16AL-A2 | 12 | 16 | 205 | 71 | 164 | 2 | 5.4 | 1.4 | |
SYB16AL-A2(sensor)* | 12 | 16 | 6 | 5.4 | 1.4 | ||||
7 | 12 | 16 | 151 | 91 | 182 | 7 | 7.1 | 1.5 | |
YB16CL-B | 12 | 19 | 175 | 100 | 175 | 5 | 5.8 | 1.55 | |
YB18-A | 12 | 18 | 182 | 92 | 164 | 7 | 6.1 | 1.5 | |
YB18L-A | 12 | 18 | 7 | 6.1 | 1.5 | ||||
YB18L-A2* | 12 | 18 | 7 | 6.6 | 2.1 | ||||
Y50-N18L-A | 12 | 20 | 206 | 91 | 161 | 7 | 6.5 | 2.05 | |
Y50-N18L-A2* | 12 | 20 | 7 | 6.5 | 2.05 | ||||
Y50-N18L-A3 | 12 | 20 | 4 | 6.5 | 2.05 | ||||
SY50-N18L-A(sensor)* | 12 | 20 | 7 | 6.5 | 2.05 | ||||
SY50-N18L-A2(sensor) | 12 | 20 | 7 | 6.5 | 2.05 | ||||
SY50-N18L-AT(sensor) | 12 | 20 | 7 | 6.5 | 2.05 | ||||
Y50-N18A-A | 12 | 20 | 206 | 91 | 177 | 7 | 6.6 | 2.1 | |
Y60-N24L-A | 12 | 28 | 3 | 8.35 | 2.3 | ||||
Y60-N24AL-B | 12 | 28 | 3 | 8.35 | 2.3 | ||||
SY60-N24AL-B(sensor) | 12 | 28 | 4 | 8.35 | 2.3 | ||||
Y60-N28L-A | 12 | 28 | 186 | 130 | 170 | 4 | 8.35 | 2.3 | |
Y60-N30L-A | 12 | 30 | 4 | 8.9 | 2.3 | ||||
Y60-N30-A | 12 | 30 | 4 | 8.9 | 2.3 |
• Anti-sulfating Technology –when a battery is continuously drained or the battery plates are exposed to the air due to lower electrolyte level, the active LEAD crystallizes on the plates. Under these circumstances, the battery will not hold a charge or restore to full capacity.
• Lead Calcium Technology-reduce water loss and self –discharge ,and provides more starting power
• More power-over standard conventional battery
• Amperage increase from 5% to 8%, grants a better quality and better performances while starting the Bike
• Low Maintenance is granted, because these batteries have a very low water consumption, that cuts 8 times the need to fill up.
• Longest endurance and more charging cycles and above all longest charge resistance especially in winter time.
• Anti-sulfating Technology –when a battery is continuously drained or the battery plates are exposed to the air due to lower electrolyte level, the active LEAD crystallizes on the plates. Under these circumstances, the battery will not hold a charge or restore to full capacity.
• Lead Calcium Technology-reduce water loss and self –discharge ,and provides more starting power
• More power-over standard conventional battery
• Amperage increase from 5% to 8%, grants a better quality and better performances while starting the Bike
• Low Maintenance is granted, because these batteries have a very low water consumption, that cuts 8 times the need to fill up.
• Longest endurance and more charging cycles and above all longest charge resistance especially in winter time.
•Motorcycle
•European & Other Motorcycle
•All terrian
•Water Craft
•Snow Mobiles
• Utility vehicle
• ATV
• Jetski
• Lawn& Garden
• Scooter
•Motorcycle
•European & Other Motorcycle
•All terrian
•Water Craft
•Snow Mobiles
• Utility vehicle
• ATV
• Jetski
• Lawn& Garden
• Scooter
