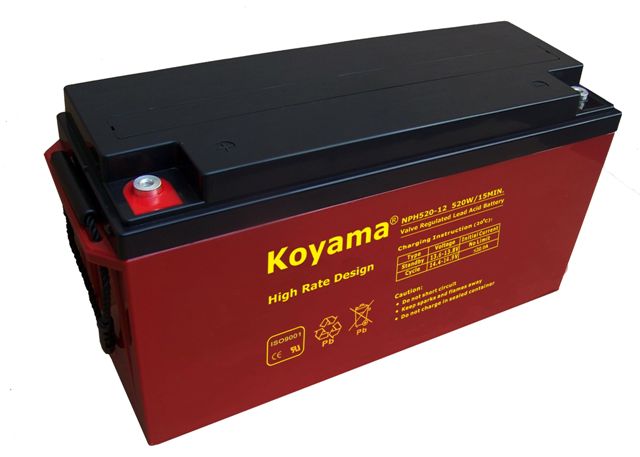

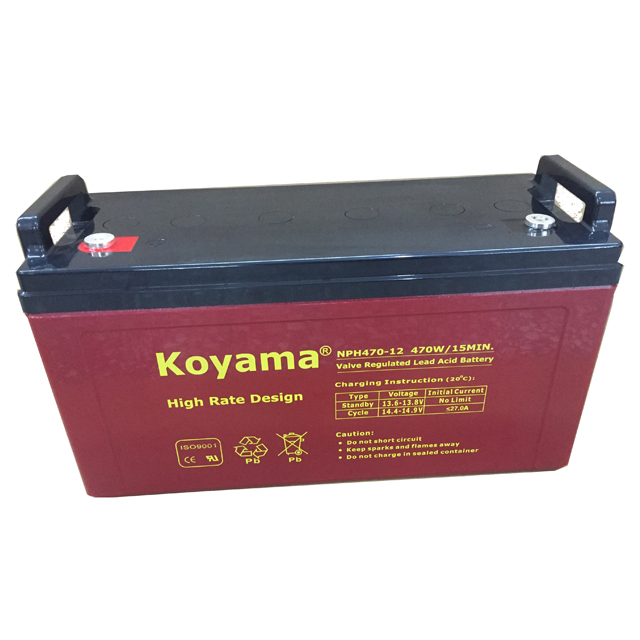

KOYAMA NPH series battery use strong grids and specially designed active material, the NPH series offers stable performance during high current discharge. It offers extremely high power output at 15 minutes backup time with 5~12 years design life. It is highly suited for high rate UPS/EPS systems and power switchgear applications.
Quantity: | |
---|---|
Model No | Rated Power (W/Cell) | Capacity (Ah/10hr) | Dimension | Weight | Terminal Type | |||
Length | Width | Height | Total Height | kg | ||||
mm | mm | mm | mm | |||||
35/15Min | 8 | 151 | 65 | 94 | 100 | 2.55 | F2 | |
55/15Min | 12 | 152 | 99 | 96 | 102 | 3.80 | F2 | |
85/15Min | 20 | 181 | 77 | 167 | 167 | 6.50 | T1 | |
115/15Min | 28 | 165 | 126 | 174 | 174 | 8.70 | T3 | |
145/15Min | 34 | 196 | 130 | 155 | 167 | 11.00 | T3 | |
170/15Min | 42 | 198 | 166 | 174 | 174 | 13.80 | T3 | |
290/15Min | 70 | 350 | 167 | 178 | 178 | 23.00 | T3 | |
300/15Min | 80 | 260 | 169 | 211 | 215 | 25.00 | T3 | |
370/15Min | 95 | 307 | 169 | 211 | 215 | 31.00 | T3 | |
420/15Min | 110 | 331 | 174 | 214 | 219 | 34.00 | T4 | |
470/15Min | 135 | 407 | 174 | 210 | 233 | 39.00 | T5 | |
520//15Min | 150 | 484 | 171 | 241 | 241 | 47.00 | T4 | |
540/15Min | 155 | 328 | 181 | 267 | 271 | 46.00 | T5 | |
680/15Min | 170 | 532 | 206 | 216 | 222 | 60.50 | T5 | |
770/15Min | 220 | 522 | 240 | 219 | 224 | 69.00 | T6 | |
800/15Min | 230 | 520 | 269 | 204 | 209 | 70.00 | T6 | |
900/15Min | 255 | 520 | 268 | 220 | 225 | 79.00 | T6 | |
NPH720-6 | 720/15Min | 180 | 260 | 180 | 247 | 251 | 30.80 | T5 |
• Designed service life of 10-15 years
• High cycle service life
• Better temperature resistance performance
• Excellent deep cycle performance
• Superior low current discharge performance
• Stronger constant power discharge capability
• Better charge acceptability
• Better safety performance and reliability
• Modular and personified installation design
• High Performance price/ratio and low yearly operating cost
• Non-Spillable construction design.
• Safety valve installation for explosion proof.
• Low self discharge characteristic.
• Exceptional deep discharge recovery performance.
• ABS containers and covers(UL94HB,UL94V-0) optional.
• Gel-batteries are designed to be operated within a wide temperature range –40° C and +55° C.
• Solar power systems
• Wind power systems
• Micro hydro systems
• Hybrid power systems
• Mining
• Telecommunications
• Rural infrastructure
• Village electrification
• Power generation
• Railways
