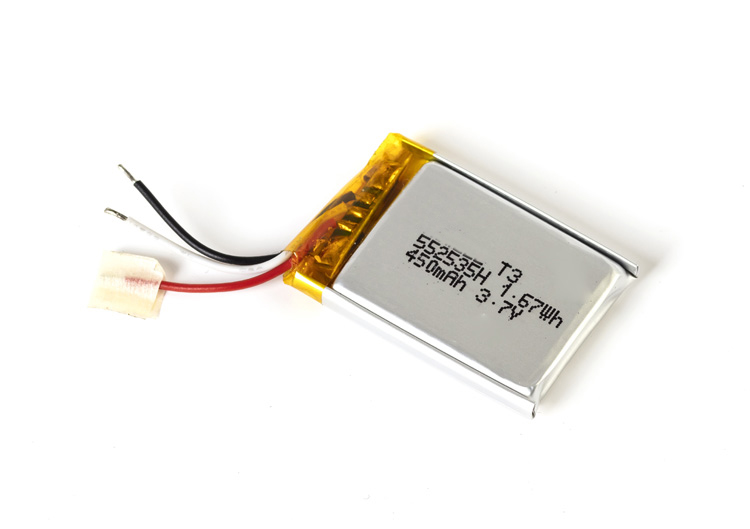

Li Polymer Battery

Lithium Polymer Ion batteries provide the performance of the Li-ion in a thin or moldable package. They do not use a volatile liquid electrolyte and can sustain significant abuse without explosion or fire. The lithium polymer uses a polymer gel electrolyte to replace the traditional liquid electrolyte. Lithium-polymer finds its market niche in wafer-thin geometries, such as batteries for credit cards and other such applications. Expected cycle life is about 500+ cycles.

Model:
CBB301215
Brand:
CBB/KOYAMA
Code:
8507600090

Availability:

Quantity:



Inquiry

Product Description

Lithium Polymer Ion batteries provide the performance of the Li-ion in a thin or moldable package. They do not use a volatile liquid electrolyte and can sustain significant abuse without explosion or fire.
The lithium polymer uses a polymer gel electrolyte to replace the traditional liquid electrolyte. Lithium-polymer finds its market niche in wafer-thin geometries, such as batteries for credit cards and other such applications. Expected cycle life is about 500+ cycles.

Key Features:

High energy density, high and stable operating voltage, with average voltage over 3.7V.
High safety, no fire, no explosion.
Long cycle life over 800 times.
Battery can be designed into different shapes and sizes.
Customized designs are available，with thickness from 2 to 10mm, capacity from 20 to 25000mAh.

Application:
MP3/MP4/MP5, Bluetooth headset, Bluetooth speaker, Smart wearable products,
Auto electronics, GPS, Smartphone, Digital products,
Portable DVD, Tablet PC, E-book, POS terminal, PDA, Power bank, RC toys, Medical device, etc.

Note: Characteristics can change according to improvements in chemistry or special niche requirements.

Technical specification

Li-Polymer Battery Type
Model	Capacity	Nominal Voltage (V)	Dimension(mm)			Weight
	(mAh)	Nominal Voltage (V)	Thickness(±0.2)	Width(±0.5)	Length(±0.5)	Approx(g)
CBB301215	22	3.7V	3	12	15	1.1
CBB451313	40	3.7V	4.5	13	13	1.4
CBB401120	60	3.7V	4	11	20	1.5
CBB541116	60	3.7V	5.4	11	16	1.6
CBB301230	70	3.7V	3	12	30	1.6
CBB391520	70	3.7V	3.9	15	20	1.6
CBB451125	75	3.7V	4.5	11	25	1.6
CBB421326	90	3.7V	4.2	13	26	1.8
CBB401522	100	3.7V	4	15	22	1.9
CBB302323	110	3.7V	3	23	23	2
CBB401235	120	3.7V	4	12	35	2.2
CBB701723	150	3.7V	7	17	23	4.5
CBB501235	150	3.7V	5	12	35	4.5
CBB501236	160	3.7V	5	12	36	4.4
CBB352730	200	3.7V	3.5	27	30	5
CBB451730	200	3.7V	4.5	17	30	4.8
CBB602030	200	3.7V	6	20	30	4.8
CBB401646	230	3.7V	4	16	46	5.2
CBB502030	250	3.7V	5	20	30	4.4
CBB352535	270	3.7V	3.5	25	35	7
CBB502035	300	3.7V	5	20	35	7
CBB481738	300	3.7V	4.8	17	38	7.2.
CBB501842	320	3.7V	5	18	42	7.5
CBB552036	350	3.7V	5.5	20	36	7.8
CBB601745	350	3.7V	6	17	45	7.8
CBB702030	350	3.7V	7	20	30	7.9
CBB352745	400	3.7V	3.5	27	45	6.8
CBB752327	420	3.7V	7.2	23	27	7.2
CBB552535	450	3.7V	5.5	25	35	10
CBB562535	450	3.7V	5.6	25	35	10
CBB423043	500	3.7V	4.2	30	43	9.5
CBB502248	500	3.7V	5	22	48	8.8
CBB482548	550	3.7V	4.8	25	48	12.6
CBB591944	550	3.7V	5.9	19	44	12.5
CBB483438	600	3.7V	4.8	34	38	12.1
CBB383450	650	3.7V	3.8	34	50	13.4
CBB553040	650	3.7V	5.5	30	40	13.2
CBB443441	660	3.7V	4.4	34	41	13.2
CBB503048	700	3.7V	5	30	48	13.6
CBB603436	700	3.7V	6	34	36	14
CBB653040	750	3.7V	6.5	30	40	15
CBB882734	780	3.7V	8.8	27	34	16
CBB503648	850	3.7V	5	36	48	16.5
CBB603048	850	3.7V	6	30	48	16.5
CBB952540	850	3.7V	9.5	25	40	16.5
CBB952540	860	3.7V	9.5	25	40	16.8
CBB102536	850	3.7V	10	25	36	16.5
CBB503450	900	3.7V	5	34	50	17.2
CBB414551	950	3.7V	4.1	45	51	18.1
CBB453465	1000	3.7V	4.5	34	65	18.5
CBB603450	1000	3.7V	6	34	50	18.5
CBB653248	1000	3.7V	6.5	32	48	18.5
CBB703048	1000	3.7V	7	30	48	18.9
CBB623255	1100	3.7V	6.2	32	55	19
CBB503857	1150	3.7V	5	38	57	18
CBB653450	1150	3.7V	6.5	34	50	22
CBB414069	1200	3.7V	4.1	40	69	25.5
CBB903438	1200	3.7V	9	34	38	25.8
CBB503562	1200	3.7V	5	35	62	25.8
CBB803048	1200	3.7V	8	30	48	25.9
CBB354085	1300	3.7V	3.5	40	85	28
CBB703562	1300	3.7V	7	35	62	28
CBB503759	1300	3.7V	5	37	59	28
CBB623455	1350	3.7V	6.2	34	55	28
CBB803448	1350	3.7V	8	34	48	28.2
CBB603553	1300	3.7V	6	35	53	28.2
CBB454765	1400	3.7V	4.5	47	65	28.3
CBB455060	1400	3.7V	4.5	50	60	28.3
CBB903450	1400	3.7V	9	34	50	28.2
CBB852853	1400	3.7V	8.5	28	53	28.3
CBB404672	1450	3.7V	4	46	72	28.5
CBB583572	1450	3.7V	5.8	35	72	28.5
CBB724048	1450	3.7V	7.2	40	48	28.9
CBB355475	1500	3.7V	3.5	54	75	29
CBB852848	1500	3.7V	8.5	28	48	29.2
CBB603756	1500	3.7V	6	37	56	29
CBB653168	1500	3.7V	6.5	31	68	29.3
CBB643956	1500	3.7V	6.4	39	56	29.3
CBB385068	1600	3.7V	3.8	50	68	30.2
CBB504663	1600	3.7V	5	46	63	30.5
CBB535056	1600	3.7V	5.3	50	56	30.5
CBB405070	1620	3.7V	4	50	70	31
CBB405475	1750	3.7V	4	54	75	32
CBB454186	1750	3.7V	4.5	41	86	32
CBB554663	1750	3.7V	5.5	46	63	34.5
CBB603493	1750	3.7V	6	34	93	35
CBB103450	1800	3.7V	10	34	50	36
CBB103650	1800	3.7V	10	36	50	36
CBB306095	1800	3.7V	3	60	95	37
CBB405088	1800	3.7V	4	50	88	37
CBB782493	1800	3.7V	7.8	24	93	37.2
CBB505070	1800	3.7V	5	50	70	37
CBB704060	1800	3.7V	7	40	60	37.2
CBB515060	1800	3.7V	5.1	50	60	37.5
CBB754450	1800	3.7V	7.5	44	50	37.4
CBB356484	1900	3.7V	3.5	64	84	38
CBB386066	2000	3.7V	3.8	60	66	42
CBB605060	2000	3.7V	6	50	60	43.5
CBB903562	2000	3.7V	9	35	62	43
CBB594858	2100	3.7V	5.9	48	58	43
CBB784592	2100	3.7V	7.8	45	92	43.5
CBB753662	2100	3.7V	7.5	36	62	43.5
CBB794254	2100	3.7V	7.9	42	54	43.6
CBB734261	2150	3.7V	7.3	42	61	44
CBB455085	2200	3.7V	4.5	50	85	45.5
CBB484597	2200	3.7V	4.8	45	94	45
CBB456484	2400	3.7V	4.5	64	84	49
CBB506168	2400	3.7V	5	61	68	48.5
CBB744863	2500	3.7V	7.4	48	63	50.5
CBB784562	2500	3.7V	7.8	45	65	50
CBB664867	2600	3.7V	6.6	48	67	55
CBB903864	2600	3.7V	9	38	64	54
CBB754085	2700	3.7V	7.5	40	85	55
CBB725563	2800	3.7V	7.2	55	63	58
CBB985055	2800	3.7V	9.8	50	55	57.2
CBB457585	3000	3.7V	4.5	75	85	58.5
CBB576074	3000	3.7V	5.7	60	74	59
CBB804085	3000	3.7V	8	40	85	60
CBB854678	3000	3.7V	8.5	46	78	60
CBB905060	3000	3.7V	9	50	60	59
CBB705060	3000	3.7V	7	50	60	59.5
CBB5852101	3200	3.7V	5.8	52	101	62
CBB486483	3300	3.7V	4.8	64	83	64
CBB397590	3400	3.7V	3.9	75	90	67
CBB556585	3500	3.7V	5.5	65	85	68.4
CBB505794	3700	3.7V	5	57	94	73
CBB935070	4000	3.7V	9.3	50	70	78.5
CBB985068	4000	3.7V	9.8	50	68	78
CBB3570140	4000	3.7V	3.5	70	140	77
CBB4868134	4000	3.7V	4.8	68	134	77.5
CBB954674	4000	3.7V	9.5	46	74	77.8
CBB318086	4150	3.7V	3.1	80	86	82.5
CBB825085	4200	3.7V	8.2	50	85	84
CBB5167100	4250	3.7V	5.1	67	100	84.5
CBB886168	4300	3.7V	8.8	61	68	85
CBB104180	4300	3.7V	10	41	80	85.5
CBB985070	4300	3.7V	9.8	50	70	86.2
CBB666483	4500	3.7V	6.6	64	83	88
CBB855085	4600	3.7V	8.5	50	85	90
CBB4984103	4750	3.7V	4.9	84	103	92.5
CBB905385	5000	3.7V	9	53	85	96
CBB7558120	5200	3.7V	7.5	58	120	100
CBB7850407	5200	3.7V	7.5	50	107	100.5
CBB8051116	6900	3.7V	8	51	116	136
CBB985798	6900	3.7V	9.8	57	98	138
CBB8955132	8500	3.7V	8.9	55	132	145
CBB6063203	10000	3.7V	6	63	203	194
CBB80122200	20000	3.7V	8	122	200	386

polymer cell Lithium Polymer Ion batteries Li polymer battery
