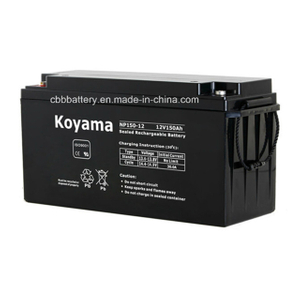

NP Series-VRLA AGM BATTERY

Koyama Battery NP (General Model) Series Valve Regulated Lead Acid batteries are designed with AGM technology, high performance plates and electrolyte to gain extra power output for common power backup system & deep cycle applications widely used in the fields of UPS, Emergency Lighting System, electric tools,deep cycle renewable energy etc.
NP series designed service life(25℃):
• 0.8Ah-250ah: 12 years(depends on usage)

  • NP100-12
  • KOYAMA ,CBB ,BESTART
  • 85072000
  • high quality sealed rechargeable battery
Quantity:
Model   No Voltage(V) Capacity (Ah) Dimension Weight Terminal Type
Length Width Height Total   Height kg
 mm mm  mm  mm
4V VRLA AGM Sealed Lead Acid Battery
NP4-4.pdf 4 4 47 47 101 107 0.5 F1
6V VRLA AGM Sealed Lead Acid Battery
NP1.3-6.pdf 6 1.3 97 24 52 58 0.31 F1
NP3.3-6.pdf 6 3.3 134 34 60 66 0.59 F1
NP3.6-6.pdf 6 3.6 70 47 101 107 0.65 F1
NP4-6.pdf 6 4 70 47 101 107 0.68 F1
NP4.5-6.pdf 6 4.5 70 47 101 107 0.75 F1
NP5-6Y.pdf 6 5 70 47 101 107 0.75 F1
NP5-6.pdf 6 5 70 47 101 107 0.8 F1
NP7-6.pdf 6 7 151 34 95 101 1.08 F1
NP8-6.pdf 6 8 151 34 95 101 1.16 F1
NP9-6.pdf 6 9 151 34 95 101 1.34 F1
NP10-6.pdf 6 10 151 50 94 100 1.63 F1
NP12-6.pdf 6 12 151 50 94 100 1.72 F1
NP130-6.pdf 6 130 260 180 247 251 20.5 T5
NP180-6.pdf 6 180 260 180 247 251 27.5 T5
NP180-6B.pdf 6 180 306 168 220 226 26 T5
NP200-6.pdf 6 200 260 180 247 251 29.5 T5
NP200-6B.pdf 6 200 323 178 224 229 29.5 T5
12V VRLA AGM Sealed Lead Acid Battery
NP1.3-12.pdf 12 1.3 97 43 52 58 0.5 F1
NP2-12.pdf 12 2 178 35 61 67 0.82 F1
NP3.3-12.pdf 12 3.3 134 67 61 67 1.32 F1
NP4-12.pdf 12 4 90 70 101 107 1.35 F1
NP4.5-12.pdf 12 4.5 90 70 101 107 1.48 F1
NP5-12.pdf 12 5 90 70 101 107 1.6 F1
NP6.5-12.pdf 12 6.5 151 65 94 100 1.95 F1
NP7-12.pdf 12 7 151 65 94 100 2.03 F1
NP7.2-12.pdf 12 7.2 151 65 94 100 2.13 F1
NP7.5-12.pdf 12 7.5 151 65 94 100 2.2 F1
NP9-12.pdf 12 9 151 65 94 100 2.4 F1
NP10-12.pdf 12 10 152 99 96 102 3.2 F2
NP12-12.pdf 12 12 152 99 96 102 3.4 F2
NP15-12.pdf 12 15 152 99 96 102 3.8 F2
NP18-12.pdf 12 18 181 77 167 167 5.18 L1
NP20-12.pdf 12 20 181 77 167 167 6 L1
NP24-12.pdf 12 24 165 126 174 179 7.7 T2
NP26-12.pdf 12 26 166 175 126 126 8.3 T2
NP33-12.pdf 12 33 196 130 155 179 10 T3
NP40-12.pdf 12 40 197 166 174 172 12.3 T2
NP42-12.pdf 12 42 198 166 174 174 12.9 T2
NP45-12.pdf 12 45 198 166 174 174 13.1 T2
NP50-12.pdf 12 50 229 138 208 212 15.8 T3
NP50-12B.pdf 12 50 258 134 200 200 15.5 L8
NP55-12.pdf 12 55 229 138 208 226 16.3 T3
NP60-12.pdf 12 60 229 138 208 226 17.3 T3
NP65-12.pdf 12 65 350 167 178 178 20.2 T3
NP70-12.pdf 12 70 350 167 178 178 21.3 T3
NP70-12B.pdf 12 70 260 169 211 215 21.7 T3
NP75-12.pdf 12 75 260 169 211 215 22 T3
NP80-12.pdf 12 80 260 169 211 231 23.3 T3
NP85-12.pdf 12 85 331 174 214 240 24.8 T4
NP90-12.pdf 12 90 307 169 211 227 26.5 T3
NP100-12.pdf 12 100 331 174 214 219 28 T4
NP120-12.pdf 12 120 407 174 210 233 33 T5
NP150-12.pdf 12 150 484 171 241 241 41 T4
NP160-12.pdf 12 160 532 206 216 240 48.3 T4
NP180-12.pdf 12 180 532 206 216 221 52.2 T4
NP200-12.pdf 12 200 522 240 219 244 58.2 T5
NP250-12.pdf 12 250 520 268 220 245 70 T5



• Sealed Construction (Non-Spillable Battery)
• Electrolyte Suspension System
• Gas Recombination
• Maintenance Free Operation, no need to add water
• Operation in any Orientation(except for the inverted position)
• Low Pressure Venting System
• Special lead calcium alloy, good corrosion resistance and high recovery capacity.
• Long Service Life
• Low Self Discharge, the self discharge rate is below 3% per month
• Wide Operating Temperature Range: -15℃~50℃
• FAA and IATA approved as non-hazardous.
• Alarm Systems
• Cable Television
• Communications Equipment
• Computers
• Control Equipment
• Electronic Cash Registers
• Electronic Test Equipment
• Emergency Lighting Systems
• Fire & Security Systems
• Geophysical Equipment
• Marine Equipment
• Medical Equipment
• Microprocessor Based Office machines
• Portable Cine & Video Lights
• Power Tools
• Telecommunication Systems
• Television & Video Recorders
• solar & wind power system
• Uninterruptible Power Supplies
• Deep cycle renewable energy system

cbb battery terminal 1 cbb battery terminal 2
