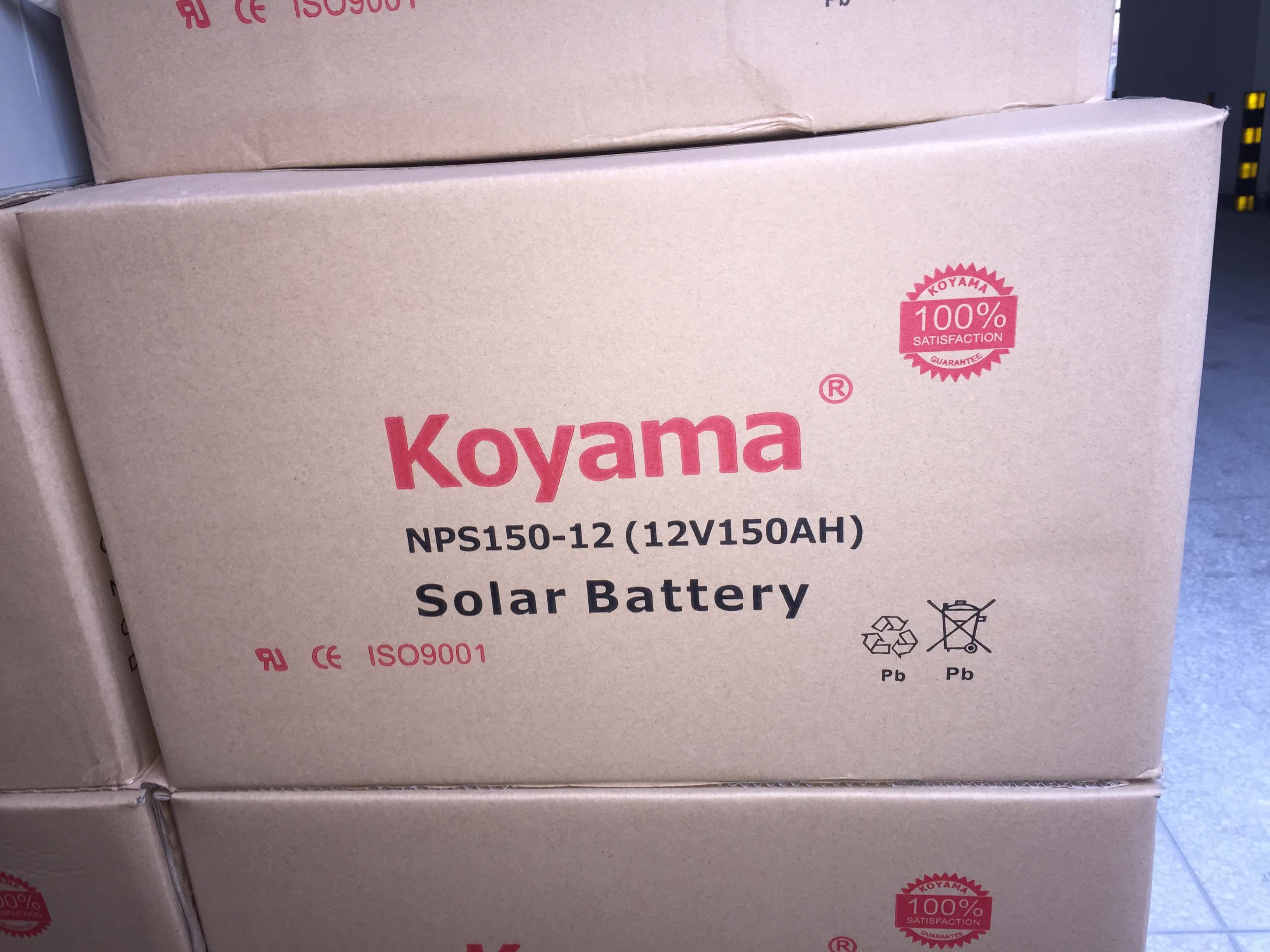

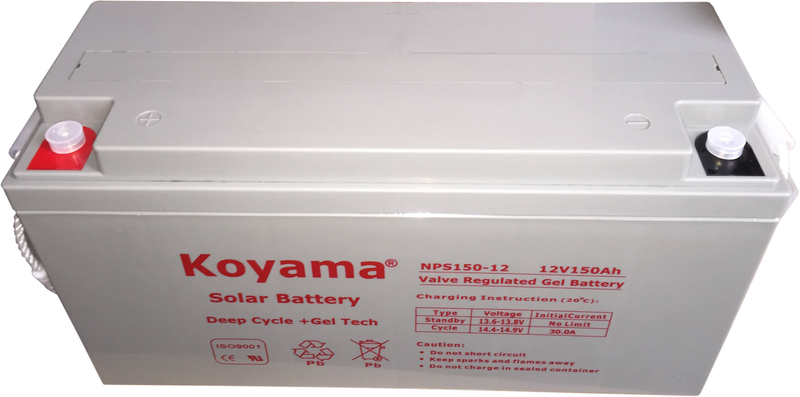

New 12V 150Ah Solar Gel Battery

KOYAMA NPS Solar Gel Battery is specifically designed with revolutionary long life heavy duty plate gel technology for solar power storage. Solar batteries are traditionally hard working batteries and are usually cycled on a daily basis as part of primary power source of electricity where no grid power is available
Deep cycle batteries are used because they have the ability to be recycled many times. This means that they can go from being charged to being discharged to 50% numerous times without damaging the batteries unlike that of other batteries such as cranking batteries which are used to start vehicles.
The innovative Gel Technology does not only combines the advantages of lower internal resistance of deep cycle battery , but also do have much better thermal stability and longer cyclic life .

  • NPS150-12
  • KOYAMA
  • Battery Type : solar deep cycle gel battery
  • cycle life : long cycle life
  • Voltage: 12V
  • Capacity: 150Ah
  • Applications: solar wind renewable energy
  • Warranty: 2 years
Quantity:
Model No
(Data Sheet)
Rated Voltage  (V) Rated Capacity
(Ah)
Dimension Weight Terminal
Length Width Height Total Height kg pound
 mm inch mm inch  mm inch  mm inch
6V SOLAR GEL BATTERY
NPS130-6 6 130/10HR 260 10.24 180 7.09 247 9.72 251 9.88 20.6 45.32 T5
NPS180-6 6 180/10HR 306 12.05 168 6.61 220 8.66 226 8.90 26.1 57.42 T5
NPS200-6 6 200/10HR 260 10.24 180 7.09 247 9.72 251 9.88 27.6 60.72 T5
NPS225-6A 6 220/10HR 323 12.72 178 7.01 224 8.82 229 9.02 29.6 65.12 T5
NPS225-6B 6 225/10HR 260 10.24 180 7.09 247 9.72 251 9.88 29.6 65.12 T5
12 V SOLAR GEL BATTERY
NPS24-12 12 24/10HR 165 6.50 126 4.96 174 6.85 179 7.05 7.8 17.16 L6/T3
NPS26-12 12 26/10HR 166 6.54 175 6.89 126 4.96 126 4.96 8.4 18.48 L2/T2
NPS33-12 12 33/10HR 196 7.72 130 5.12 155 6.10 179 7.05 10.1 22.22 L7/T3/L4
NPS38-12 12 38/10HR 197 7.76 166 6.54 174 6.85 179 7.05 12.4 27.28 L6/T3/L7
NPS42-12 12 42/10HR 198 7.80 166 6.54 174 6.85 174 6.85 13 28.60 L7/T3/L3
NPS50-12 12 50/10HR 229 9.02 138 5.43 208 8.19 226 8.90 16.4 36.08 L4/T3
NPS55-12 12 55/10HR 229 9.02 138 5.43 208 8.19 226 8.90 17.4 38.28 L4/T3
NPS60-12 12 60/10HR 350 13.78 167 6.57 178 7.01 178 7.01 20.6 45.32 L9/T3/L4
NPS65-12 12 65/10HR 350 13.78 167 6.57 178 7.01 178 7.01 21.4 47.08 L9/T3/L4
NPS70-12 12 70/10HR 260 10.24 169 6.65 211 8.31 231 9.09 21.8 47.96 L11/T3
NPS75-12 12 75/10HR 260 10.24 169 6.65 211 8.31 231 9.09 22.2 48.84 L11/T3
NPS80-12 12 80/10HR 260 10.24 169 6.65 211 8.31 231 9.09 23.5 51.70 L11/T3
NPS85-12 12 85/10HR 331 13.03 174 6.85 214 8.43 219 8.62 25 55.00 L12/T4
NPS90-12 12 90/10HR 307 12.09 169 6.65 211 8.31 227 8.94 27 59.40 L13/T3
NPS100-12 12 100/10HR 331 13.03 174 6.85 214 8.43 219 8.62 30.7 67.54 L12/T4
NPS120-12 12 120/10HR 407 16.02 174 6.85 210 8.27 233 9.17 34.4 75.68 L14/T5
NPS150-12 12 150/10HR 484 19.06 171 6.73 241 9.49 241 9.49 43.8 96.36 L16/T4
NPS200-12 12 200/10HR 522 20.55 240 9.45 219 8.62 244 9.61 60.8 133.76 L17/T5
NPS220-12 12 220/10HR 522 20.55 269 10.59 203 7.99 209 8.23 68.3 150.26 L17/T5
NPS250-12 12 250/10HR 520 20.47 268 10.55 220 8.66 245 9.65 71 156.20 L17/T5
2V SOLAR GEL BATTERY
NPS100-2 2 100/10HR 171 6.73 72 2.83 205 8.07 230 9.06 5.9 12.98 T5
NPS120-2 2 120/10HR 171 6.73 72 2.83 205 8.07 230 9.06 6.4 14.08 T5
NPS150-2 2 150/10HR 171 6.73 102 4.02 206 8.11 230 9.06 8.2 18.04 T5
NPS200-2 2 200/10HR 170 6.69 106 4.17 330 12.99 367 14.45 13.1 28.82 T5
NPS300-2 2 300/10HR 171 6.73 151 5.94 330 12.99 365 14.37 18.6 40.92 T5
NPS350-2 2 350/10HR 171 6.73 151 5.94 330 12.99 366 14.41 20.6 45.32 T5
NPS400-2 2 400/10HR 211 8.31 176 6.93 329 12.95 367 14.45 26.3 57.86 T5
NPS425-2 2 425/10HR 211 8.31 176 6.93 329 12.95 367 14.45 27 59.40 T5
NPS500-2 2 500/10HR 241 9.49 171 6.73 349 13.74 368 14.49 31.2 68.64 T5
NPS600-2 2 600/10HR 301 11.85 175 6.89 331 13.03 366 14.41 37.9 83.38 T5
NPS800-2 2 800/10HR 410 16.14 176 6.93 330 12.99 365 14.37 51.8 113.96 T5
NPS1000-2 2 1000/10HR 472 18.58 172 6.77 338 13.31 355 13.98 62.3 137.06 T5
NPS1200-2 2 1200/10HR 475 18.70 175 6.89 328 12.91 365 14.37 68.8 151.36 T5
NPS1500-2 2 1500/10HR 401 15.79 351 13.82 342 13.46 378 14.88 97 213.40 T5
NPS2000-2 2 2000/10HR 491 19.33 351 13.82 343 13.50 383 15.08 131 288.20 T5
NPS2500-2 2 2500/10HR 712 28.03 353 13.90 341 13.43 382 15.04 181 398.20 T5
NPS3000-2 2 3000/10HR 712 28.03 353 13.90 341 13.43 382 15.04 191 420.20 T5

• Designed service life of 10-15 years

• High cycle service life

• Better temperature resistance performance

• Excellent deep cycle performance

• Superior low current discharge performance

• Stronger constant power discharge capability

• Better charge acceptability

• Better safety performance and reliability

• Modular and personified installation design

• High Performance price/ratio and low yearly operating cost

• Non-Spillable construction design.

• Safety valve installation for explosion proof.

• Low self discharge characteristic.

• Exceptional deep discharge recovery performance.

• ABS containers and covers(UL94HB,UL94V-0) optional.

• Gel-batteries are designed to be operated within a wide temperature range –40° C and +55° C.

• Solar power systems

• Wind power systems

• Micro hydro systems

• Hybrid power systems

• Mining

• Telecommunications

• Rural infrastructure

• Village electrification

• Power generation

• Railways

cbb battery terminal 1 cbb battery terminal 2
1.DCG series-Deep Cycle Gel Battery Brochure
