Availability: | |
---|---|
Quantity: | |
Model No (Data Sheet) | Rated Voltage (V) | Rated Capacity (Ah) | Dimension | Weight | |||||||||
Length | Width | Height | without acid | with acid | |||||||||
5HR | 20HR | mm | inch | mm | inch | mm | inch | KG | Pound | KG | Pound | ||
6-DG-140 | 12V | 85AH | 120 | 360 | 14.17 | 172 | 6.77 | 260 | 10.24 | 20.50 | 45.10 | 29.50 | 64.90 |
6-DG-150 | 12V | 90AH | 130 | 360 | 14.17 | 172 | 6.77 | 260 | 10.24 | 21.50 | 47.30 | 31.50 | 69.30 |

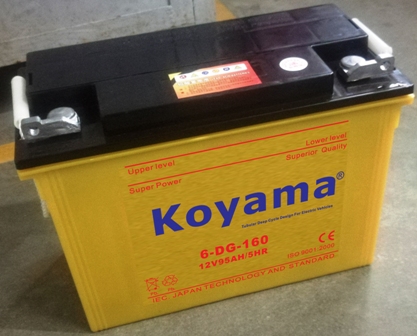

6-DG-160 | 12V | 95AH | 150 | 360 | 14.17 | 172 | 6.77 | 275 | 10.83 | 23.50 | 51.70 | 33.00 | 72.60 |

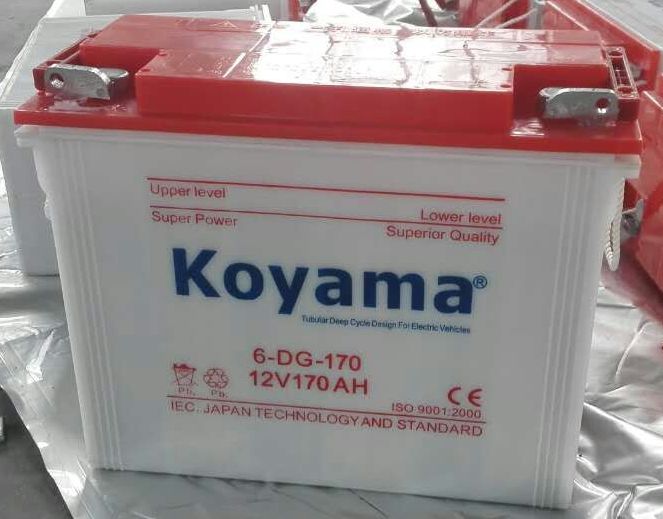

6-DG-170 | 12V | 105AH | 160 | 360 | 14.17 | 172 | 6.77 | 275 | 10.83 | 25.50 | 56.10 | 35.00 | 77.00 |
6-DG-180 | 12V | 110AH | 170 | 360 | 14.17 | 172 | 6.77 | 275 | 10.83 | 26.50 | 58.30 | 36.00 | 79.20 |
6-DG-190 | 12V | 118AH | 180 | 360 | 14.17 | 172 | 6.77 | 290 | 11.42 | 27.50 | 60.50 | 37.50 | 82.50 |
6-DG-200 | 12V | 125AH | 190 | 360 | 14.17 | 172 | 6.77 | 290 | 11.42 | 28.50 | 62.70 | 38.50 | 84.70 |

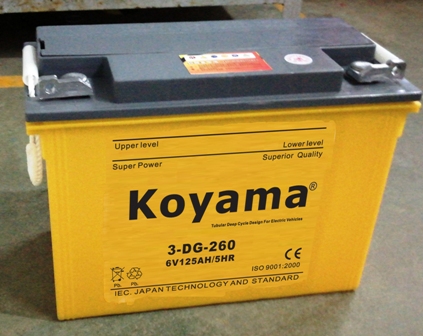

3-DG-260 | 6V | 260AH | 280 | 360 | 14.17 | 172 | 6.77 | 275 | 10.83 | 27.00 | 59.40 | 36.00 | 79.20 |
Model No (Data Sheet) | Rated Voltage (V) | Rated Capacity (Ah) | Dimension | Weight | |||||||||
Length | Width | Height | without acid | with acid | |||||||||
5HR | 20HR | mm | inch | mm | inch | mm | inch | KG | Pound | KG | Pound | ||
6-DG-140 | 12V | 85AH | 120 | 360 | 14.17 | 172 | 6.77 | 260 | 10.24 | 20.50 | 45.10 | 29.50 | 64.90 |
6-DG-150 | 12V | 90AH | 130 | 360 | 14.17 | 172 | 6.77 | 260 | 10.24 | 21.50 | 47.30 | 31.50 | 69.30 |
6-DG-160 | 12V | 95AH | 150 | 360 | 14.17 | 172 | 6.77 | 275 | 10.83 | 23.50 | 51.70 | 33.00 | 72.60 |
6-DG-170 | 12V | 105AH | 160 | 360 | 14.17 | 172 | 6.77 | 275 | 10.83 | 25.50 | 56.10 | 35.00 | 77.00 |
6-DG-180 | 12V | 110AH | 170 | 360 | 14.17 | 172 | 6.77 | 275 | 10.83 | 26.50 | 58.30 | 36.00 | 79.20 |
6-DG-190 | 12V | 118AH | 180 | 360 | 14.17 | 172 | 6.77 | 290 | 11.42 | 27.50 | 60.50 | 37.50 | 82.50 |
6-DG-200 | 12V | 125AH | 190 | 360 | 14.17 | 172 | 6.77 | 290 | 11.42 | 28.50 | 62.70 | 38.50 | 84.70 |
3-DG-260 | 6V | 260AH | 280 | 360 | 14.17 | 172 | 6.77 | 275 | 10.83 | 27.00 | 59.40 | 36.00 | 79.20 |
• Excellent energy storage capacity combined with high reliability
• 700 Cycles at 75%DOD
• Tubular plate construction consisting of a lead calcium alloy
• High cycle service life
• Better temperature resistance performance
• Excellent deep cycle performance
• Superior low current discharge performance
• Better charge acceptability
• Better safety performance and reliability
• High Performance price/ratio and low yearly operating cost
• Non-Spillable construction design
• Low self discharge characteristics
• Excellent energy storage capacity combined with high reliability
• 700 Cycles at 75%DOD
• Tubular plate construction consisting of a lead calcium alloy
• High cycle service life
• Better temperature resistance performance
• Excellent deep cycle performance
• Superior low current discharge performance
• Better charge acceptability
• Better safety performance and reliability
• High Performance price/ratio and low yearly operating cost
• Non-Spillable construction design
• Low self discharge characteristics
• E-tricycle
• Rickshaw
• other electric vehicle
• energy storage
• E-tricycle
• Rickshaw
• other electric vehicle
• energy storage
