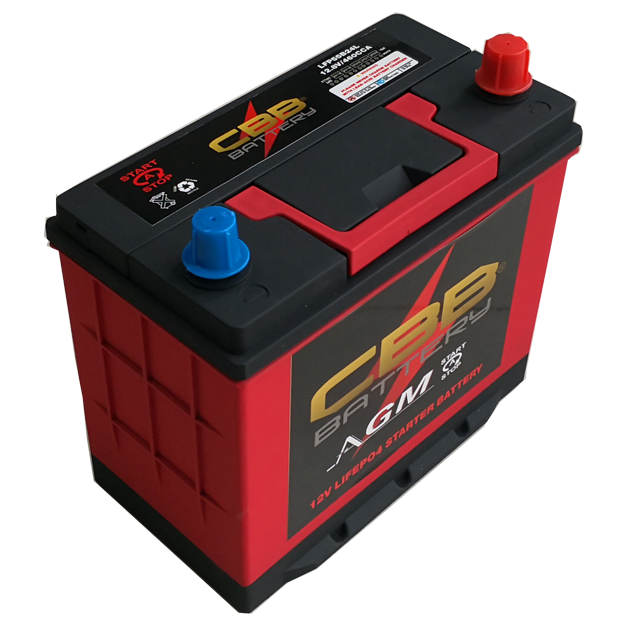

12V 30ah LiFePO4 Lithium Starter Battery AGM Car Battery LFP55b24L

CBB's LiFePo4 Lithium-ion 12V Engine Start Battery sets a new performance standard for Start-Stop & Micro-Hybrid vehicle applications by delivering outstanding cold cranking power with a battery that outperforms incumbent lead-acid technologies. By utilizing advanced chemistry and system design, the CBB solution offers outstanding cycle life, high charge acceptance, and up to a 60% weight reduction over lead-acid. CBB's LiFePo4 difference provides a robust lead-free solution to the rigorous demands of start-stop and recuperation, which are key fuel saving features of a micro-hybrid vehicle. Already producing a third generation product, CBB continues to set the bar on lithium ion battery performance.
  • LFP55B24L

  • CBB

  • 12V 30ah LiFePO4 Lithium Starter Battery

Availability:
Quantity:

Description

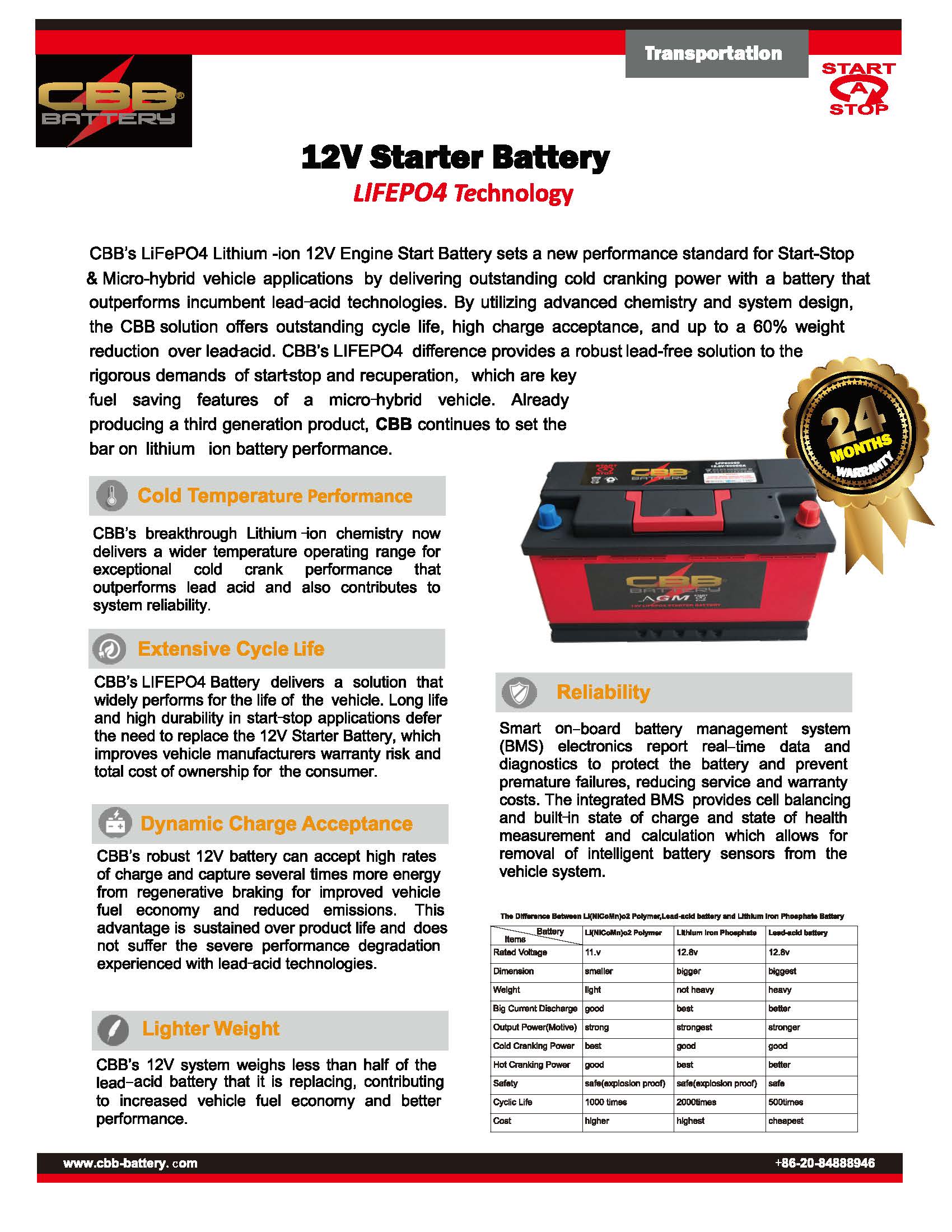

CBB's LiFePo4 Lithium-ion 12V Engine Start Battery sets a new performance standard for Start-Stop & Micro-Hybrid vehicle applications by delivering outstanding cold cranking power with a battery that outperforms incumbent lead-acid technologies. By utilizing advanced chemistry and system design, the CBB solution offers outstanding cycle life, high charge acceptance, and up to a 60% weight reduction over lead-acid. CBB's LiFePo4 difference provides a robust lead-free solution to the rigorous demands of start-stop and recuperation, which are key fuel saving features of a micro-hybrid vehicle. Already producing a third generation product, CBB continues to set the bar on lithium ion battery performance.

12V Lithium Starter Battery

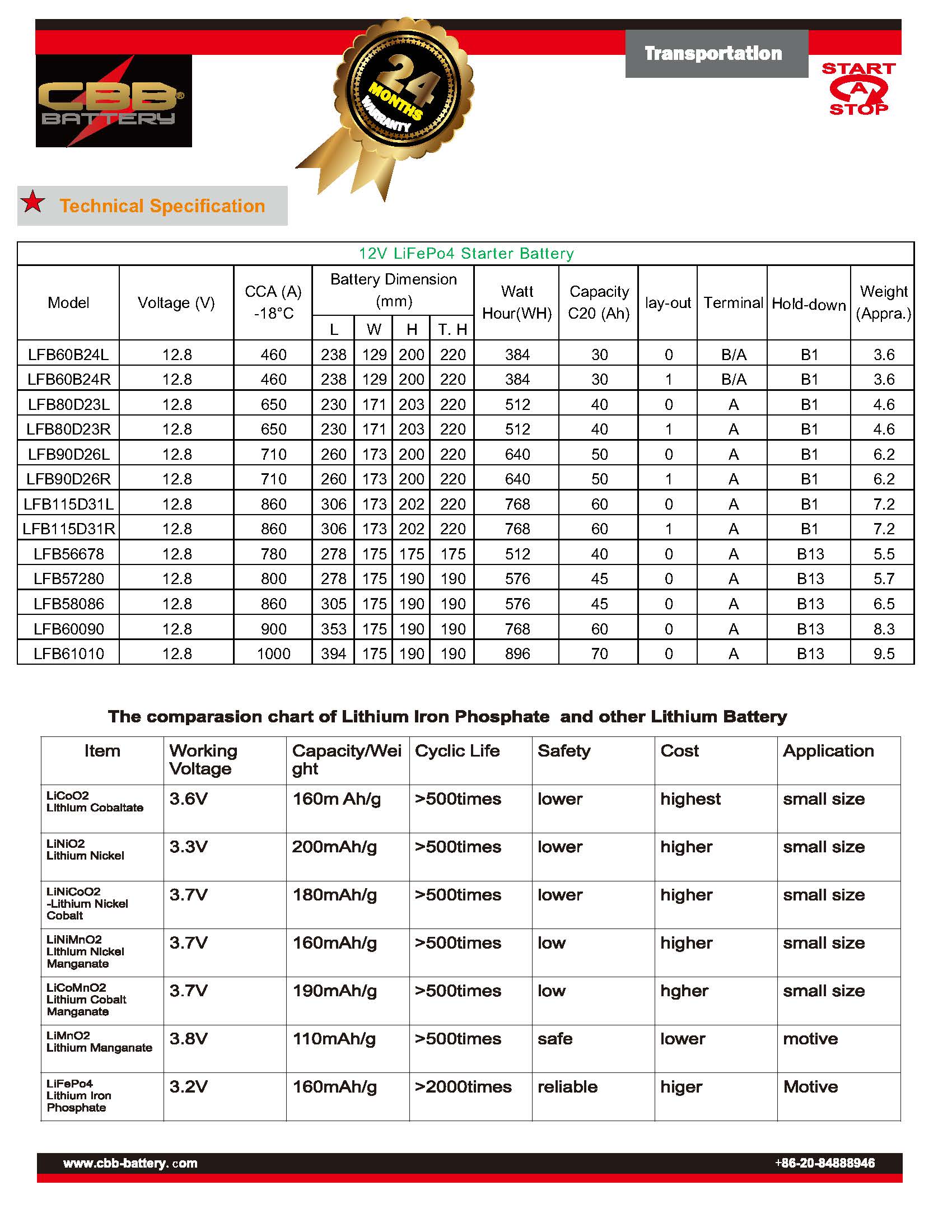

Model Voltage (V) CCA (A)             -18°C   Battery Dimension (mm) Watt Hour(WH)  Capacity C20 (Ah) lay-out Terminal Hold-down Weight (Appra.)
L W H T. H
LFB60B24L 12.8 460 238 129 200 220 384 30 0 B/A B1 3.6
LFB60B24R 12.8 460 238 129 200 220 384 30 1 B/A B1 3.6
LFB80D23L 12.8 650 230 171 203 220 512 40 0 A B1 4.6
LFB80D23R 12.8 650 230 171 203 220 512 40 1 A B1 4.6
LFB90D26L 12.8 710 260 173 200 220 640 50 0 A B1 6.2
LFB90D26R 12.8 710 260 173 200 220 640 50 1 A B1 6.2
LFB115D31L 12.8 860 306 173 202 220 768 60 0 A B1 7.2
LFB115D31R 12.8 860 306 173 202 220 768 60 1 A B1 7.2
LFB56678 12.8 780 278 175 175 175 512 40 0 A B13 5.5
LFB57280 12.8 800 278 175 190 190 576 45 0 A B13 5.7
LFB58086 12.8 860 305 175 190 190 576 45 0 A B13 6.5
LFB60090 12.8 900 353 175 190 190 768 60 0 A B13 8.3
LFB61010 12.8 1000 394 175 190 190 896 70 0 A B13 9.5

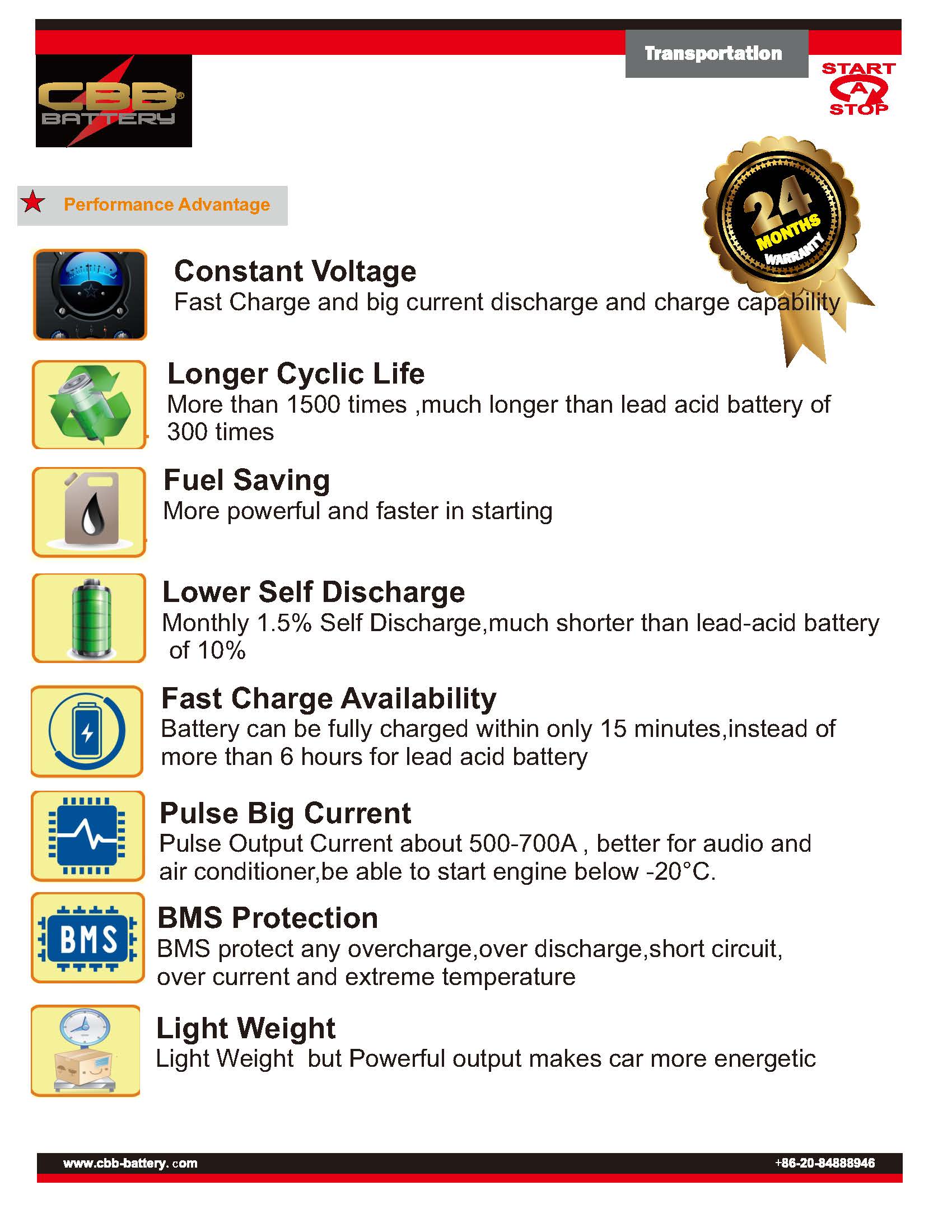

Main Features:
1. Cold Temperature Performance
CBB's breakthrough Lithium-ion chemistry now delivers a wider temperature operating range for exceptional cold crank performance that outperforms lead acid and also contributes to system reliability.
2. Extensive Cycle Life
CBB's LiFePo4 delivers a solution that widely performs for the life of the vehicle. Long life and high durability in start-stop applications defer the need to replace the 12V Starter Battery, which improves vehicle manufacturers warranty risk and total cost of ownership for the consumer.
3. Dynamic Charge Acceptance
CBB's 12V system weighs less than half of the lead-acid battery that it is replacing, contributing to increased vehicle fuel economy and better performance.
4. Reliability
Smart on-board battery management system (BMS) electronics report real-time data and diagnostics to protect the battery and prevent premature failures, reducing service and warranty costs. The integrated BMS provides cell balancing and built-in state of charge and state of health measurement and calculation which allows for removal of intelligent battery sensors from the vehicle system.
