LFB61010
CBB
12V 70ah LiFePO4 Lithium Starter Battery
Availability: | |
---|---|
Quantity: | |

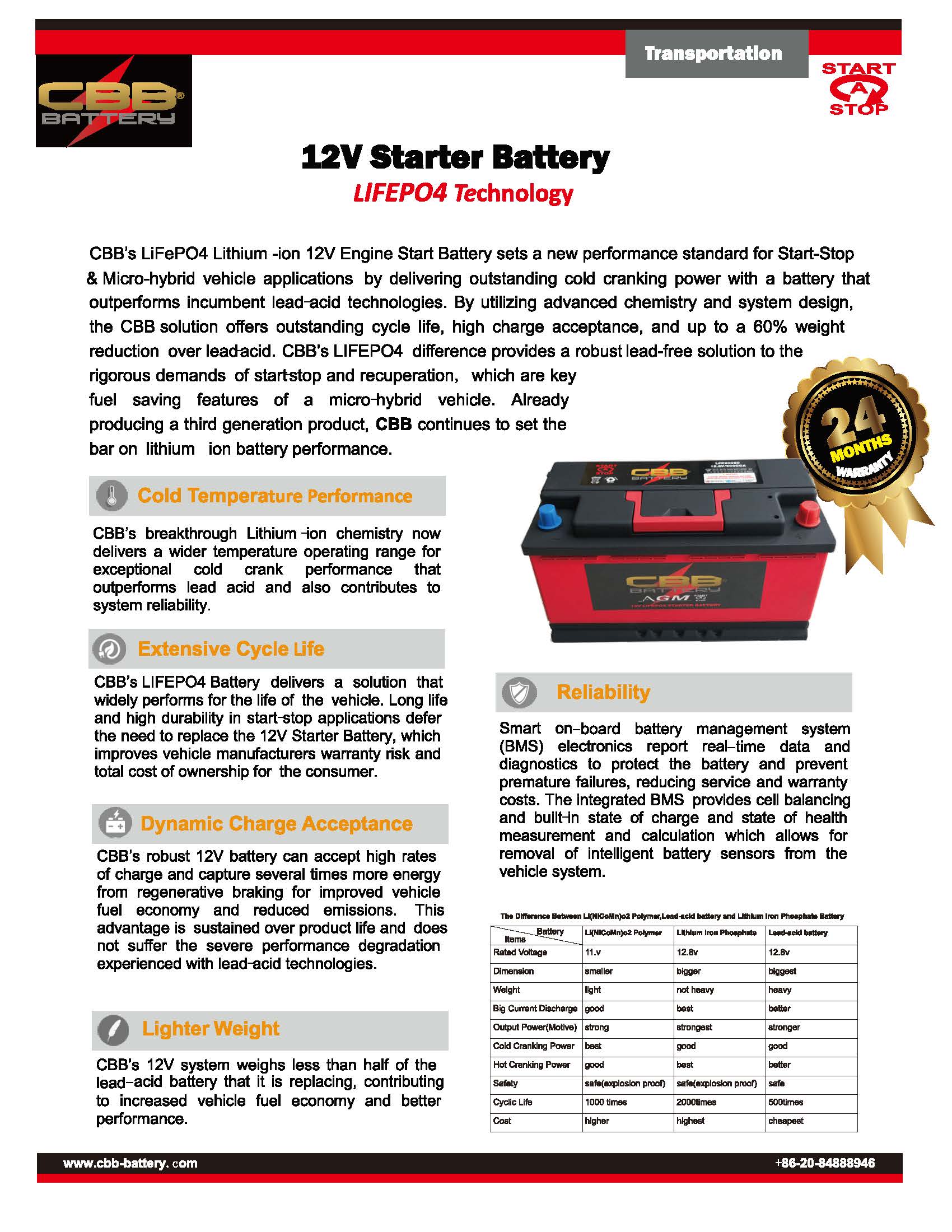

Description
CBB's LiFePo4 Lithium-ion 12V Engine Start Battery sets a new performance standard for Start-Stop & Micro-Hybrid vehicle applications by delivering outstanding cold cranking power with a battery that outperforms incumbent lead-acid technologies. By utilizing advanced chemistry and system design, the CBB solution offers outstanding cycle life, high charge acceptance, and up to a 60% weight reduction over lead-acid. CBB's LiFePo4 difference provides a robust lead-free solution to the rigorous demands of start-stop and recuperation, which are key fuel saving features of a micro-hybrid vehicle. Already producing a third generation product, CBB continues to set the bar on lithium ion battery performance.

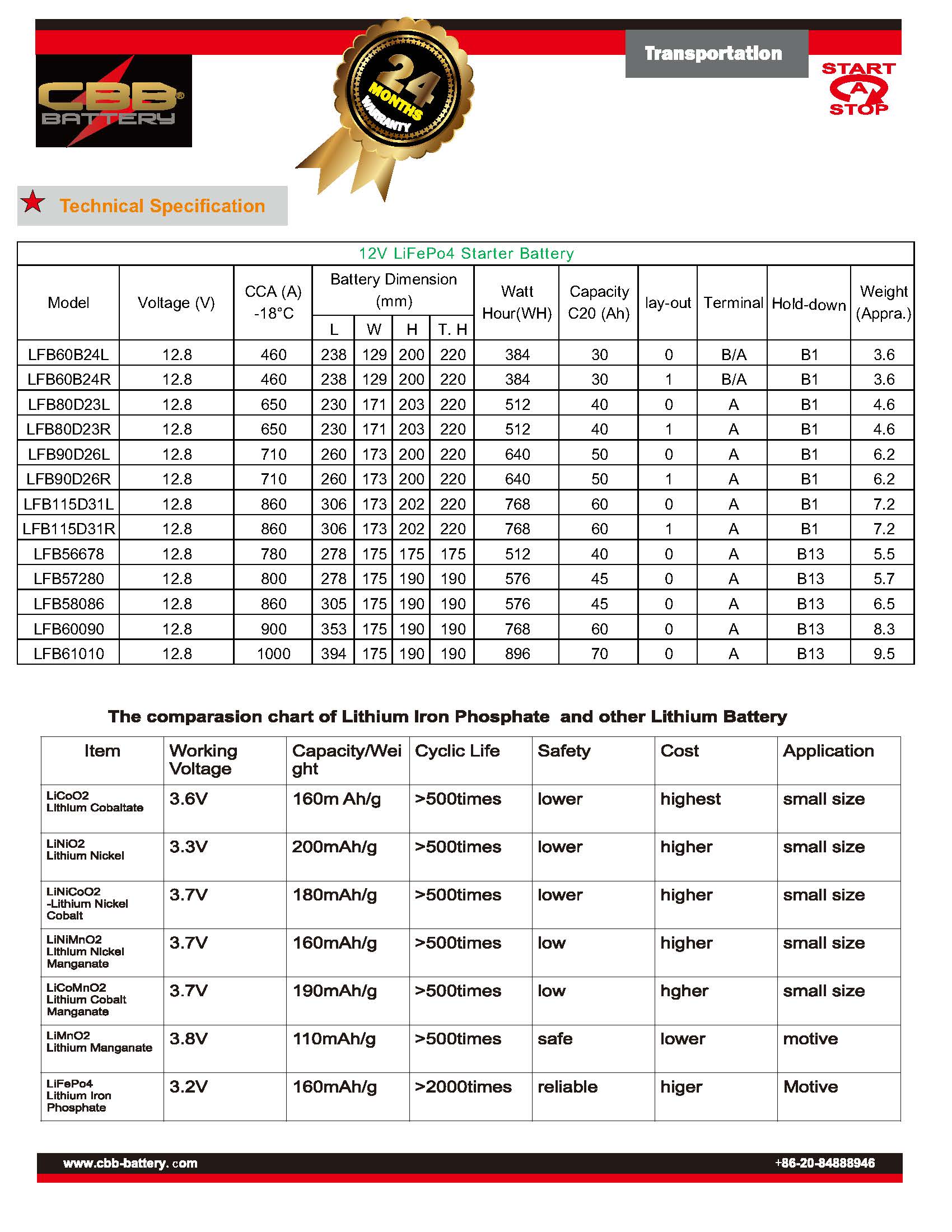

12V Lithium Starter Battery | ||||||||||||
Model | Voltage (V) | CCA (A) -18°C | Battery Dimension (mm) | Watt Hour(WH) | Capacity C20 (Ah) | lay-out | Terminal | Hold-down | Weight (Appra.) | |||
L | W | H | T. H | |||||||||
LFB60B24L | 12.8 | 460 | 238 | 129 | 200 | 220 | 384 | 30 | 0 | B/A | B1 | 3.6 |
LFB60B24R | 12.8 | 460 | 238 | 129 | 200 | 220 | 384 | 30 | 1 | B/A | B1 | 3.6 |
LFB80D23L | 12.8 | 650 | 230 | 171 | 203 | 220 | 512 | 40 | 0 | A | B1 | 4.6 |
LFB80D23R | 12.8 | 650 | 230 | 171 | 203 | 220 | 512 | 40 | 1 | A | B1 | 4.6 |
LFB90D26L | 12.8 | 710 | 260 | 173 | 200 | 220 | 640 | 50 | 0 | A | B1 | 6.2 |
LFB90D26R | 12.8 | 710 | 260 | 173 | 200 | 220 | 640 | 50 | 1 | A | B1 | 6.2 |
LFB115D31L | 12.8 | 860 | 306 | 173 | 202 | 220 | 768 | 60 | 0 | A | B1 | 7.2 |
LFB115D31R | 12.8 | 860 | 306 | 173 | 202 | 220 | 768 | 60 | 1 | A | B1 | 7.2 |
LFB56678 | 12.8 | 780 | 278 | 175 | 175 | 175 | 512 | 40 | 0 | A | B13 | 5.5 |
LFB57280 | 12.8 | 800 | 278 | 175 | 190 | 190 | 576 | 45 | 0 | A | B13 | 5.7 |
LFB58086 | 12.8 | 860 | 305 | 175 | 190 | 190 | 576 | 45 | 0 | A | B13 | 6.5 |
LFB60090 | 12.8 | 900 | 353 | 175 | 190 | 190 | 768 | 60 | 0 | A | B13 | 8.3 |
LFB61010 | 12.8 | 1000 | 394 | 175 | 190 | 190 | 896 | 70 | 0 | A | B13 | 9.5 |

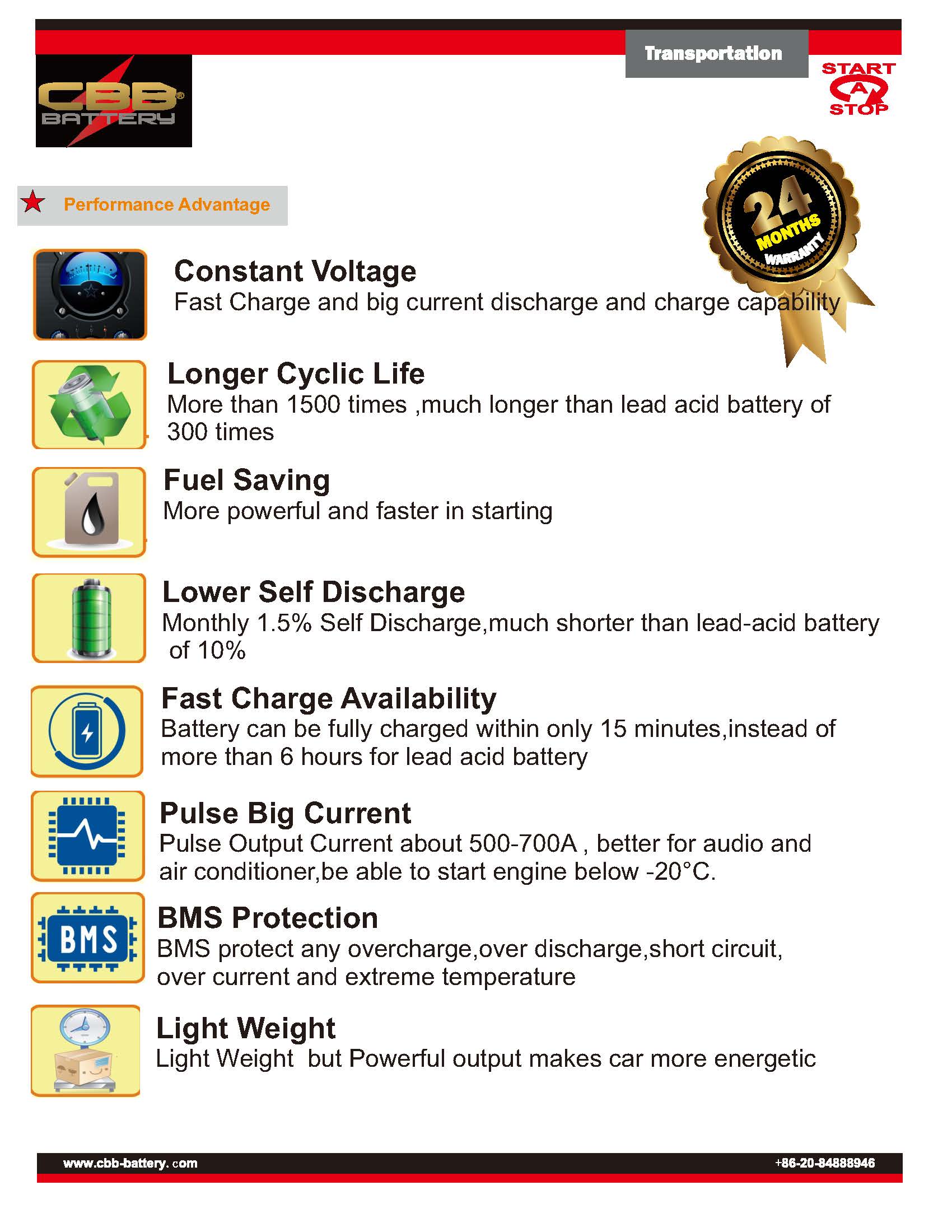

Main Features:
1. Cold Temperature Performance
CBB's breakthrough Lithium-ion chemistry now delivers a wider temperature operating range for exceptional cold crank performance that outperforms lead acid and also contributes to system reliability.
2. Extensive Cycle Life
CBB's LiFePo4 delivers a solution that widely performs for the life of the vehicle. Long life and high durability in start-stop applications defer the need to replace the 12V Starter Battery, which improves vehicle manufacturers warranty risk and total cost of ownership for the consumer.
3. Dynamic Charge Acceptance
CBB's 12V system weighs less than half of the lead-acid battery that it is replacing, contributing to increased vehicle fuel economy and better performance.
4. Reliability
Smart on-board battery management system (BMS) electronics report real-time data and diagnostics to protect the battery and prevent premature failures, reducing service and warranty costs. The integrated BMS provides cell balancing and built-in state of charge and state of health measurement and calculation which allows for removal of intelligent battery sensors from the vehicle system.
Payment terms:
1. By T/T , 30% T/T in advance,70% before shipment
2. By L/C at sight
3. Western Union, Money gram or cash
Trade terms: ex works or Fob Guangzhou/Shenzhen
Package details:
1. Standard export carton ,then onto pallets, or neutral package
2. If any special requirements on package , it is negotiable
3. All batteries are inspected carefully by QC before shipment.
Delivery time :
1. our lead time is 15-30days on the basis of order quantity after getting 30% deposit
2. if you need samples or small quantity , we can ship battery within 3-7days if we have stock after test is finished.
Minimum order quantity:
1. if battery is smaller than 17ah,MOQ would be 200-1000pcs as per actual battery size if battery is bigger than 17ah, MOQ would be 50-200pcs as per actual battery size
2. if order is big quantity or 1*20'fcl load , the price would be much competitive
Company Information
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery; with a factory area of 65mu and production area more than 30000m2.Our production capacity has reached more than 3 million KVAH per year.
We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.
We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.
As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, ROHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer's expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
Description
CBB's LiFePo4 Lithium-ion 12V Engine Start Battery sets a new performance standard for Start-Stop & Micro-Hybrid vehicle applications by delivering outstanding cold cranking power with a battery that outperforms incumbent lead-acid technologies. By utilizing advanced chemistry and system design, the CBB solution offers outstanding cycle life, high charge acceptance, and up to a 60% weight reduction over lead-acid. CBB's LiFePo4 difference provides a robust lead-free solution to the rigorous demands of start-stop and recuperation, which are key fuel saving features of a micro-hybrid vehicle. Already producing a third generation product, CBB continues to set the bar on lithium ion battery performance.
12V Lithium Starter Battery | ||||||||||||
Model | Voltage (V) | CCA (A) -18°C | Battery Dimension (mm) | Watt Hour(WH) | Capacity C20 (Ah) | lay-out | Terminal | Hold-down | Weight (Appra.) | |||
L | W | H | T. H | |||||||||
LFB60B24L | 12.8 | 460 | 238 | 129 | 200 | 220 | 384 | 30 | 0 | B/A | B1 | 3.6 |
LFB60B24R | 12.8 | 460 | 238 | 129 | 200 | 220 | 384 | 30 | 1 | B/A | B1 | 3.6 |
LFB80D23L | 12.8 | 650 | 230 | 171 | 203 | 220 | 512 | 40 | 0 | A | B1 | 4.6 |
LFB80D23R | 12.8 | 650 | 230 | 171 | 203 | 220 | 512 | 40 | 1 | A | B1 | 4.6 |
LFB90D26L | 12.8 | 710 | 260 | 173 | 200 | 220 | 640 | 50 | 0 | A | B1 | 6.2 |
LFB90D26R | 12.8 | 710 | 260 | 173 | 200 | 220 | 640 | 50 | 1 | A | B1 | 6.2 |
LFB115D31L | 12.8 | 860 | 306 | 173 | 202 | 220 | 768 | 60 | 0 | A | B1 | 7.2 |
LFB115D31R | 12.8 | 860 | 306 | 173 | 202 | 220 | 768 | 60 | 1 | A | B1 | 7.2 |
LFB56678 | 12.8 | 780 | 278 | 175 | 175 | 175 | 512 | 40 | 0 | A | B13 | 5.5 |
LFB57280 | 12.8 | 800 | 278 | 175 | 190 | 190 | 576 | 45 | 0 | A | B13 | 5.7 |
LFB58086 | 12.8 | 860 | 305 | 175 | 190 | 190 | 576 | 45 | 0 | A | B13 | 6.5 |
LFB60090 | 12.8 | 900 | 353 | 175 | 190 | 190 | 768 | 60 | 0 | A | B13 | 8.3 |
LFB61010 | 12.8 | 1000 | 394 | 175 | 190 | 190 | 896 | 70 | 0 | A | B13 | 9.5 |
Main Features:
1. Cold Temperature Performance
CBB's breakthrough Lithium-ion chemistry now delivers a wider temperature operating range for exceptional cold crank performance that outperforms lead acid and also contributes to system reliability.
2. Extensive Cycle Life
CBB's LiFePo4 delivers a solution that widely performs for the life of the vehicle. Long life and high durability in start-stop applications defer the need to replace the 12V Starter Battery, which improves vehicle manufacturers warranty risk and total cost of ownership for the consumer.
3. Dynamic Charge Acceptance
CBB's 12V system weighs less than half of the lead-acid battery that it is replacing, contributing to increased vehicle fuel economy and better performance.
4. Reliability
Smart on-board battery management system (BMS) electronics report real-time data and diagnostics to protect the battery and prevent premature failures, reducing service and warranty costs. The integrated BMS provides cell balancing and built-in state of charge and state of health measurement and calculation which allows for removal of intelligent battery sensors from the vehicle system.
Payment terms:
1. By T/T , 30% T/T in advance,70% before shipment
2. By L/C at sight
3. Western Union, Money gram or cash
Trade terms: ex works or Fob Guangzhou/Shenzhen
Package details:
1. Standard export carton ,then onto pallets, or neutral package
2. If any special requirements on package , it is negotiable
3. All batteries are inspected carefully by QC before shipment.
Delivery time :
1. our lead time is 15-30days on the basis of order quantity after getting 30% deposit
2. if you need samples or small quantity , we can ship battery within 3-7days if we have stock after test is finished.
Minimum order quantity:
1. if battery is smaller than 17ah,MOQ would be 200-1000pcs as per actual battery size if battery is bigger than 17ah, MOQ would be 50-200pcs as per actual battery size
2. if order is big quantity or 1*20'fcl load , the price would be much competitive
Company Information
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery; with a factory area of 65mu and production area more than 30000m2.Our production capacity has reached more than 3 million KVAH per year.
We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.
We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.
As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, ROHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer's expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
