LFP60090
CBB
85071000

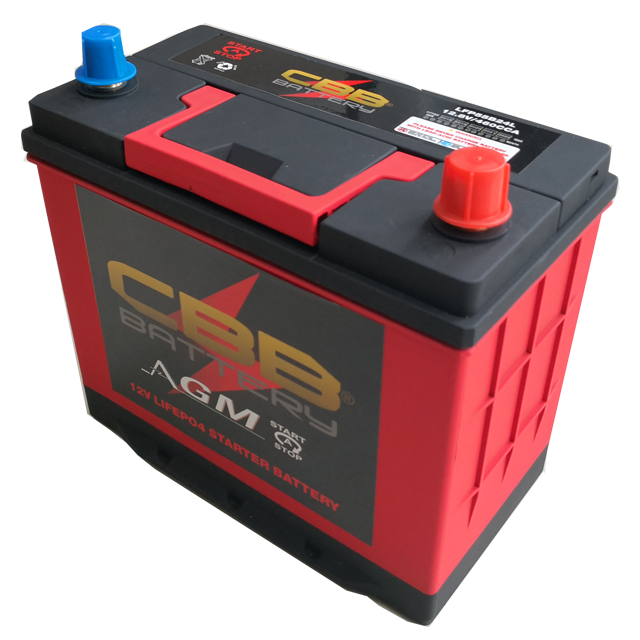

12V100AH Lithium Starter Battery
Availability: | |
---|---|
Quantity: | |
12V Lithium Starter Battery | ||||||||||||
Model | Voltage (V) | CCA (A) -18°C | Battery Dimension (mm) | Watt Hour(WH) | Capacity C20 (Ah) | lay-out | Terminal | Hold-down | Weight (Appra.) | |||
L | W | H | T. H | |||||||||
LFB60B24L | 12.8 | 460 | 238 | 129 | 200 | 220 | 384 | 30 | 0 | B/A | B1 | 3.6 |
LFB60B24R | 12.8 | 460 | 238 | 129 | 200 | 220 | 384 | 30 | 1 | B/A | B1 | 3.6 |
LFB80D23L | 12.8 | 650 | 230 | 171 | 203 | 220 | 512 | 40 | 0 | A | B1 | 4.6 |
LFB80D23R | 12.8 | 650 | 230 | 171 | 203 | 220 | 512 | 40 | 1 | A | B1 | 4.6 |
LFB90D26L | 12.8 | 710 | 260 | 173 | 200 | 220 | 640 | 50 | 0 | A | B1 | 6.2 |
LFB90D26R | 12.8 | 710 | 260 | 173 | 200 | 220 | 640 | 50 | 1 | A | B1 | 6.2 |
LFB115D31L | 12.8 | 860 | 306 | 173 | 202 | 220 | 768 | 60 | 0 | A | B1 | 7.2 |
LFB115D31R | 12.8 | 860 | 306 | 173 | 202 | 220 | 768 | 60 | 1 | A | B1 | 7.2 |
LFB56678 | 12.8 | 780 | 278 | 175 | 175 | 175 | 512 | 40 | 0 | A | B13 | 5.5 |
LFB57280 | 12.8 | 800 | 278 | 175 | 190 | 190 | 576 | 45 | 0 | A | B13 | 5.7 |
LFB58086 | 12.8 | 860 | 305 | 175 | 190 | 190 | 576 | 45 | 0 | A | B13 | 6.5 |
LFB60090 | 12.8 | 900 | 353 | 175 | 190 | 190 | 768 | 60 | 0 | A | B13 | 8.3 |
LFB61010 | 12.8 | 1000 | 394 | 175 | 190 | 190 | 896 | 70 | 0 | A | B13 | 9.5 |
12V Lithium Starter Battery | ||||||||||||
Model | Voltage (V) | CCA (A) -18°C | Battery Dimension (mm) | Watt Hour(WH) | Capacity C20 (Ah) | lay-out | Terminal | Hold-down | Weight (Appra.) | |||
L | W | H | T. H | |||||||||
LFB60B24L | 12.8 | 460 | 238 | 129 | 200 | 220 | 384 | 30 | 0 | B/A | B1 | 3.6 |
LFB60B24R | 12.8 | 460 | 238 | 129 | 200 | 220 | 384 | 30 | 1 | B/A | B1 | 3.6 |
LFB80D23L | 12.8 | 650 | 230 | 171 | 203 | 220 | 512 | 40 | 0 | A | B1 | 4.6 |
LFB80D23R | 12.8 | 650 | 230 | 171 | 203 | 220 | 512 | 40 | 1 | A | B1 | 4.6 |
LFB90D26L | 12.8 | 710 | 260 | 173 | 200 | 220 | 640 | 50 | 0 | A | B1 | 6.2 |
LFB90D26R | 12.8 | 710 | 260 | 173 | 200 | 220 | 640 | 50 | 1 | A | B1 | 6.2 |
LFB115D31L | 12.8 | 860 | 306 | 173 | 202 | 220 | 768 | 60 | 0 | A | B1 | 7.2 |
LFB115D31R | 12.8 | 860 | 306 | 173 | 202 | 220 | 768 | 60 | 1 | A | B1 | 7.2 |
LFB56678 | 12.8 | 780 | 278 | 175 | 175 | 175 | 512 | 40 | 0 | A | B13 | 5.5 |
LFB57280 | 12.8 | 800 | 278 | 175 | 190 | 190 | 576 | 45 | 0 | A | B13 | 5.7 |
LFB58086 | 12.8 | 860 | 305 | 175 | 190 | 190 | 576 | 45 | 0 | A | B13 | 6.5 |
LFB60090 | 12.8 | 900 | 353 | 175 | 190 | 190 | 768 | 60 | 0 | A | B13 | 8.3 |
LFB61010 | 12.8 | 1000 | 394 | 175 | 190 | 190 | 896 | 70 | 0 | A | B13 | 9.5 |
Main Features:
1. Cold Temperature Performance
CBB’s breakthrough Lithium-ion chemistry now delivers a wider temperature operating range for exceptional cold crank performance that outperforms lead acid and also contributes to system reliability.
2. Extensive Cycle Life
CBB’s LiFePo4 delivers a solution that widely performs for the life of the vehicle. Long life and high durability in start-stop applications defer the need to replace the 12V Starter Battery, which improves vehicle manufacturers warranty risk and total cost of ownership for the consumer.Â
3. Dynamic Charge Acceptance
CBB’s 12V system weighs less than half of the lead-acid battery that it is replacing, contributing to increased vehicle fuel economy and better performance.
4. Reliability
Smart on-board battery management system (BMS) electronics report real-time data and diagnostics to protect the battery and prevent premature failures, reducing service and warranty costs. The integrated BMS provides cell balancing and built-in state of charge and state of health measurement and calculation which allows for removal of intelligent battery sensors from the vehicle system.
Main Features:
1. Cold Temperature Performance
CBB’s breakthrough Lithium-ion chemistry now delivers a wider temperature operating range for exceptional cold crank performance that outperforms lead acid and also contributes to system reliability.
2. Extensive Cycle Life
CBB’s LiFePo4 delivers a solution that widely performs for the life of the vehicle. Long life and high durability in start-stop applications defer the need to replace the 12V Starter Battery, which improves vehicle manufacturers warranty risk and total cost of ownership for the consumer.Â
3. Dynamic Charge Acceptance
CBB’s 12V system weighs less than half of the lead-acid battery that it is replacing, contributing to increased vehicle fuel economy and better performance.
4. Reliability
Smart on-board battery management system (BMS) electronics report real-time data and diagnostics to protect the battery and prevent premature failures, reducing service and warranty costs. The integrated BMS provides cell balancing and built-in state of charge and state of health measurement and calculation which allows for removal of intelligent battery sensors from the vehicle system.
•Starting, light and ignition for car, Tractor, Mine vehicle and Mobile machinery shop.
•Starting, light and ignition for car, Tractor, Mine vehicle and Mobile machinery shop.
