DCG110-12
KOYAMA
85072000

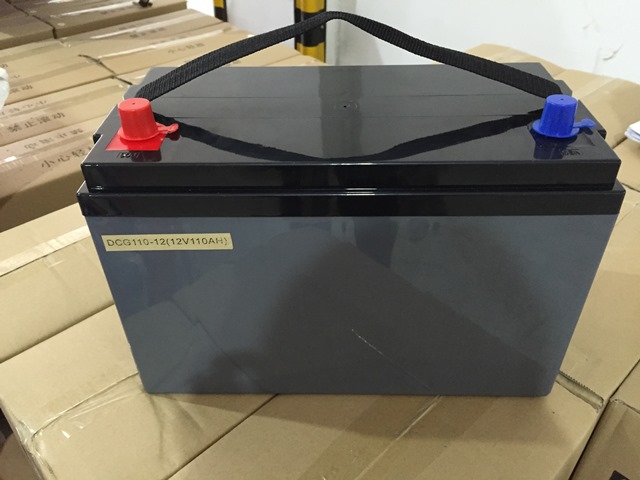

12V110AH deep cycle gel battery
Availability: | |
---|---|
Quantity: | |
Model No | Industry No | Rated Voltage (V) | Capacity (Ah) | Dimension | Weight | Terminal Type | |||
Length | Width | Height | Total Height | kg | |||||
mm | mm | mm | mm | ||||||
6V DEEP CYCLE GEL BATTERY | |||||||||
DCG200-6.pdf | N/A | 6 | 200 | 306 | 168 | 220 | 222 | 30.1 | T5/AP |
DCG210-6.pdf | GC2/T105 | 6 | 210 | 260 | 180 | 247 | 252 | 29.6 | T5/AP |
DCG220-6.pdf | N/A | 6 | 220 | 306 | 168 | 220 | 222 | 31.6 | T5/AP |
DCG225-6.pdf | (DIN) | 6 | 225 | 243 | 187 | 275 | 275 | 30.6 | T5 |
DCG225-6AP.pdf | (DIN) | 6 | 225 | 243 | 187 | 275 | 275 | 30.6 | T5 |
DCG226-6.pdf | GC2/T105 | 6 | 226 | 260 | 180 | 247 | 252 | 30.2 | T5/AP |
DCG250-6.pdf | GC2/T105 | 6 | 226 | 260 | 187 | 265 | 272 | 34.7 | T5/AP |
DCG310-6.pdf | 902/J305 | 6 | 310 | 295 | 178 | 354 | 360 | 46.2 | T5 |
DCG310-6DT.pdf | 902/J305 | 6 | 310 | 295 | 178 | 354 | 360 | 46.2 | DT |
DCG330-6AT.pdf | 902/J305 | 6 | 330 | 295 | 178 | 354 | 360 | 46.8 | T5/DT |
DCG380-6.pdf | L16 | 6 | 380 | 295 | 178 | 404 | 410 | 55.5 | T5 |
DCG380-6DT.pdf | L16 | 6 | 380 | 295 | 178 | 404 | 410 | 55.5 | DT |
DCG420-6.pdf | L16 | 6 | 420 | 295 | 178 | 404 | 410 | 57 | T5 |
DCG420-6DT.pdf | L16 | 6 | 420 | 295 | 178 | 404 | 410 | 57 | DT |
8V DEEP CYCLE GEL BATTERY | |||||||||
DCG170-8.pdf | GC8H | 8 | 170 | 260 | 182 | 266 | 271 | 34.2 | T5 |
DCG200-8.pdf | GC8H | 8 | 200 | 260 | 182 | 295 | 301 | 38.2 | T5 |
12V DEEP CYCLE GEL BATTERY | |||||||||
DCG24-12.pdf | N/A | 12 | 24 | 166 | 175 | 126 | 126 | 8.4 | T2 |
DCG26-12.pdf | N/A | 12 | 26 | 165 | 126 | 174 | 174 | 8.5 | T3 |
DCG35-12.pdf | U1 | 12 | 35 | 196 | 130 | 155 | 167 | 10.6 | T3 |
DCG40-12.pdf | U1L | 12 | 40 | 198 | 166 | 174 | 174 | 14.3 | T3 |
DCG55-12.pdf | 22NF | 12 | 55 | 229 | 138 | 208 | 212 | 16.1 | T3 |
DCG70-12.pdf | 93 | 12 | 70 | 350 | 167 | 178 | 178 | 23.4 | T3/AP |
DCG75-12.pdf | 24 | 12 | 75 | 260 | 169 | 211 | 215 | 25.1 | T3/AP |
DCG85-12.pdf | 24 | 12 | 85 | 260 | 169 | 211 | 215 | 26.2 | T3/AP |
DCG90-12.pdf | 27 | 12 | 90 | 307 | 169 | 211 | 216 | 28.3 | T3/T4/AP |
DCG100-12.pdf | 27 | 12 | 100 | 307 | 169 | 211 | 216 | 30.3 | T4 |
DCG100-12AP.pdf | 27 | 12 | 100 | 307 | 169 | 211 | 216 | 30.3 | AP |
DCG110-12.pdf | 31 | 12 | 110 | 331 | 174 | 214 | 220 | 33.5 | T4 |
DCG110-12AP.pdf | 31 | 12 | 110 | 331 | 174 | 214 | 220 | 33.5 | AP |
DCG110-12B.pdf | 31 | 12 | 110 | 328 | 172 | 217 | 222 | 32.8 | T4 |
DCG120-12.pdf | N/A | 12 | 120 | 407 | 173 | 210 | 233 | 39.5 | T5/AP |
DCG135-12.pdf | N/A | 12 | 135 | 341 | 173 | 283 | 288 | 41 | T5 |
DCG135-12AP.pdf | N/A | 12 | 135 | 341 | 173 | 283 | 288 | 41 | AP |
DCG150-12.pdf | N/A | 12 | 150 | 484 | 171 | 241 | 241 | 45.7 | T5/AP |
DCG150-12B.pdf | (DIN) | 12 | 150 | 328 | 182 | 267 | 272 | 44.4 | T5/AP |
DCG180-12.pdf | 4D | 12 | 180 | 532 | 206 | 216 | 222 | 56.2 | T5/AP |
DCG200-12.pdf | 4D | 12 | 200 | 532 | 206 | 216 | 222 | 58.6 | T5/AP |
DCG220-12.pdf | 4D | 12 | 210 | 522 | 240 | 219 | 225 | 65.2 | T5/AP |
DCG240-12.pdf | 8D | 12 | 240 | 520 | 269 | 203 | 209 | 71.3 | T5/AP |
DCG260-12.pdf | 8D | 12 | 260 | 520 | 268 | 220 | 226 | 77.3 | T5/AP |
Model No | Industry No | Rated Voltage (V) | Capacity (Ah) | Dimension | Weight | Terminal Type | |||
Length | Width | Height | Total Height | kg | |||||
mm | mm | mm | mm | ||||||
6V DEEP CYCLE GEL BATTERY | |||||||||
DCG200-6.pdf | N/A | 6 | 200 | 306 | 168 | 220 | 222 | 30.1 | T5/AP |
DCG210-6.pdf | GC2/T105 | 6 | 210 | 260 | 180 | 247 | 252 | 29.6 | T5/AP |
DCG220-6.pdf | N/A | 6 | 220 | 306 | 168 | 220 | 222 | 31.6 | T5/AP |
DCG225-6.pdf | (DIN) | 6 | 225 | 243 | 187 | 275 | 275 | 30.6 | T5 |
DCG225-6AP.pdf | (DIN) | 6 | 225 | 243 | 187 | 275 | 275 | 30.6 | T5 |
DCG226-6.pdf | GC2/T105 | 6 | 226 | 260 | 180 | 247 | 252 | 30.2 | T5/AP |
DCG250-6.pdf | GC2/T105 | 6 | 226 | 260 | 187 | 265 | 272 | 34.7 | T5/AP |
DCG310-6.pdf | 902/J305 | 6 | 310 | 295 | 178 | 354 | 360 | 46.2 | T5 |
DCG310-6DT.pdf | 902/J305 | 6 | 310 | 295 | 178 | 354 | 360 | 46.2 | DT |
DCG330-6AT.pdf | 902/J305 | 6 | 330 | 295 | 178 | 354 | 360 | 46.8 | T5/DT |
DCG380-6.pdf | L16 | 6 | 380 | 295 | 178 | 404 | 410 | 55.5 | T5 |
DCG380-6DT.pdf | L16 | 6 | 380 | 295 | 178 | 404 | 410 | 55.5 | DT |
DCG420-6.pdf | L16 | 6 | 420 | 295 | 178 | 404 | 410 | 57 | T5 |
DCG420-6DT.pdf | L16 | 6 | 420 | 295 | 178 | 404 | 410 | 57 | DT |
8V DEEP CYCLE GEL BATTERY | |||||||||
DCG170-8.pdf | GC8H | 8 | 170 | 260 | 182 | 266 | 271 | 34.2 | T5 |
DCG200-8.pdf | GC8H | 8 | 200 | 260 | 182 | 295 | 301 | 38.2 | T5 |
12V DEEP CYCLE GEL BATTERY | |||||||||
DCG24-12.pdf | N/A | 12 | 24 | 166 | 175 | 126 | 126 | 8.4 | T2 |
DCG26-12.pdf | N/A | 12 | 26 | 165 | 126 | 174 | 174 | 8.5 | T3 |
DCG35-12.pdf | U1 | 12 | 35 | 196 | 130 | 155 | 167 | 10.6 | T3 |
DCG40-12.pdf | U1L | 12 | 40 | 198 | 166 | 174 | 174 | 14.3 | T3 |
DCG55-12.pdf | 22NF | 12 | 55 | 229 | 138 | 208 | 212 | 16.1 | T3 |
DCG70-12.pdf | 93 | 12 | 70 | 350 | 167 | 178 | 178 | 23.4 | T3/AP |
DCG75-12.pdf | 24 | 12 | 75 | 260 | 169 | 211 | 215 | 25.1 | T3/AP |
DCG85-12.pdf | 24 | 12 | 85 | 260 | 169 | 211 | 215 | 26.2 | T3/AP |
DCG90-12.pdf | 27 | 12 | 90 | 307 | 169 | 211 | 216 | 28.3 | T3/T4/AP |
DCG100-12.pdf | 27 | 12 | 100 | 307 | 169 | 211 | 216 | 30.3 | T4 |
DCG100-12AP.pdf | 27 | 12 | 100 | 307 | 169 | 211 | 216 | 30.3 | AP |
DCG110-12.pdf | 31 | 12 | 110 | 331 | 174 | 214 | 220 | 33.5 | T4 |
DCG110-12AP.pdf | 31 | 12 | 110 | 331 | 174 | 214 | 220 | 33.5 | AP |
DCG110-12B.pdf | 31 | 12 | 110 | 328 | 172 | 217 | 222 | 32.8 | T4 |
DCG120-12.pdf | N/A | 12 | 120 | 407 | 173 | 210 | 233 | 39.5 | T5/AP |
DCG135-12.pdf | N/A | 12 | 135 | 341 | 173 | 283 | 288 | 41 | T5 |
DCG135-12AP.pdf | N/A | 12 | 135 | 341 | 173 | 283 | 288 | 41 | AP |
DCG150-12.pdf | N/A | 12 | 150 | 484 | 171 | 241 | 241 | 45.7 | T5/AP |
DCG150-12B.pdf | (DIN) | 12 | 150 | 328 | 182 | 267 | 272 | 44.4 | T5/AP |
DCG180-12.pdf | 4D | 12 | 180 | 532 | 206 | 216 | 222 | 56.2 | T5/AP |
DCG200-12.pdf | 4D | 12 | 200 | 532 | 206 | 216 | 222 | 58.6 | T5/AP |
DCG220-12.pdf | 4D | 12 | 210 | 522 | 240 | 219 | 225 | 65.2 | T5/AP |
DCG240-12.pdf | 8D | 12 | 240 | 520 | 269 | 203 | 209 | 71.3 | T5/AP |
DCG260-12.pdf | 8D | 12 | 260 | 520 | 268 | 220 | 226 | 77.3 | T5/AP |
• The success of DCG batteries comes from the internationally superior Gel technology
• Excellent energy storage capacity combined with high reliability
• Designed in accordance with IEC 60254-1
• 700 Cycles at 75%DOD
• 7 years design life at 20 °C ambient temperature (80% remaining capacity from C20)
• Grid plate construction consisting of a lead calcium alloy
• Very low gassing due to the internal gas recombination
• High cycle service life
• Better temperature resistance performance
• Excellent deep cycle performance
• Superior low current discharge performance
• Better charge acceptability
• Better safety performance and reliability
• High Performance price/ratio and low yearly operating cost
• Non-Spillable construction design
• Safety valve installation for explosion proof
• Low self discharge characteristic
• ABS containers and covers (UL94HB, UL94V-0 optional)
• Gel-batteries are designed to be operated within a wide temperature range –40° C and +55° C
• Maintenance-free (no topping up) motive power batteries in gel technology
• Completely recyclable
• other power drive equipment, etc
Â
• The success of DCG batteries comes from the internationally superior Gel technology
• Excellent energy storage capacity combined with high reliability
• Designed in accordance with IEC 60254-1
• 700 Cycles at 75%DOD
• 7 years design life at 20 °C ambient temperature (80% remaining capacity from C20)
• Grid plate construction consisting of a lead calcium alloy
• Very low gassing due to the internal gas recombination
• High cycle service life
• Better temperature resistance performance
• Excellent deep cycle performance
• Superior low current discharge performance
• Better charge acceptability
• Better safety performance and reliability
• High Performance price/ratio and low yearly operating cost
• Non-Spillable construction design
• Safety valve installation for explosion proof
• Low self discharge characteristic
• ABS containers and covers (UL94HB, UL94V-0 optional)
• Gel-batteries are designed to be operated within a wide temperature range –40° C and +55° C
• Maintenance-free (no topping up) motive power batteries in gel technology
• Completely recyclable
• other power drive equipment, etc
Â
• Aerial Work Platform (AWP)/Access
• Material Handling
• Floor Machine
• Recreational Vehicle (RV)
• Industrial
• Electric Boats
• Golf/Utility/Neighborhood Electric Vehicle (NEV)
• Wheelchairs
• Remote Monitoring & Instrumentation
• Renewable Energy (Solar, Small Wind and Small Hydro)
• Aerial Work Platform (AWP)/Access
• Material Handling
• Floor Machine
• Recreational Vehicle (RV)
• Industrial
• Electric Boats
• Golf/Utility/Neighborhood Electric Vehicle (NEV)
• Wheelchairs
• Remote Monitoring & Instrumentation
• Renewable Energy (Solar, Small Wind and Small Hydro)
