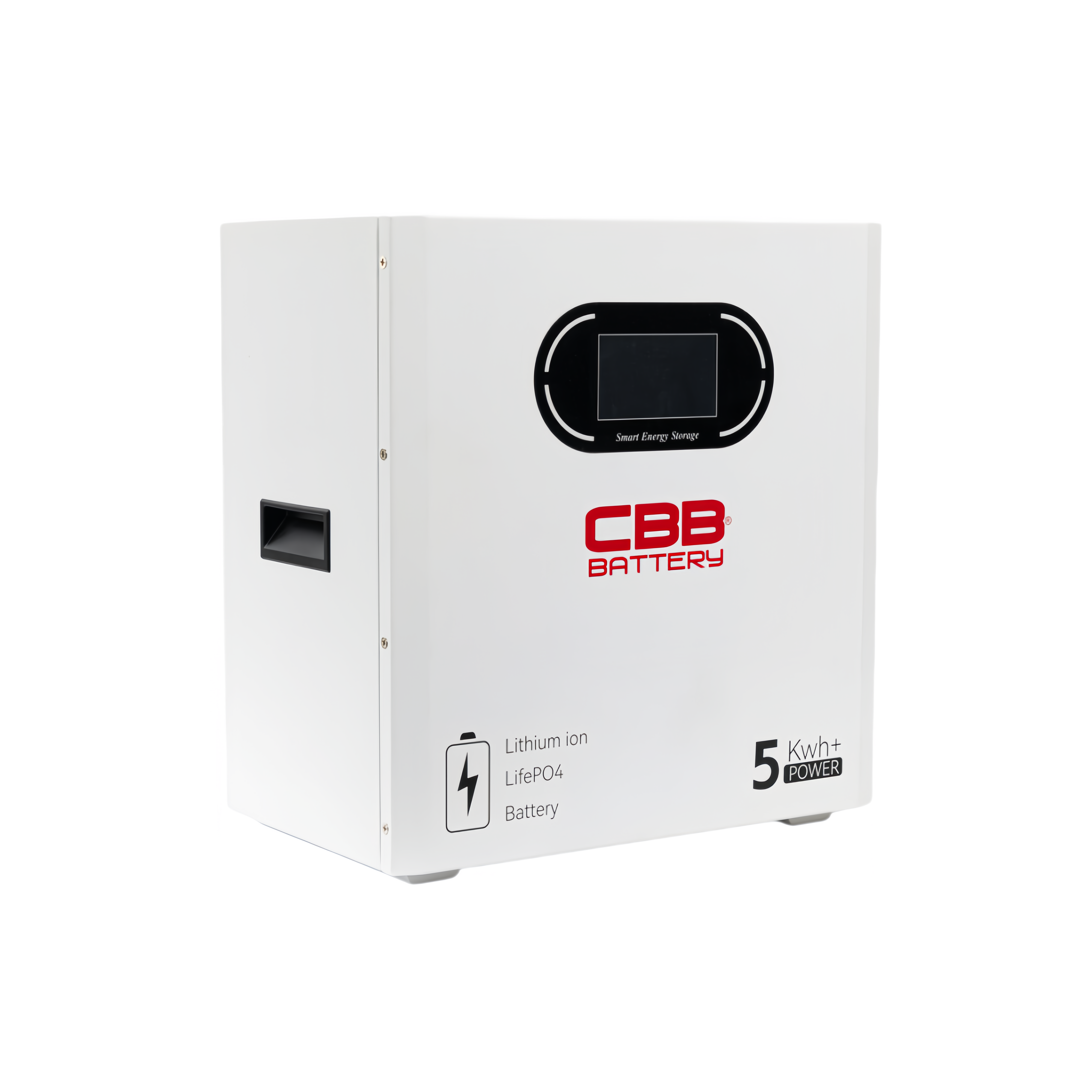

25.6V 200Ah lithium energy storage system 5.12kWh for residential solar and backup power

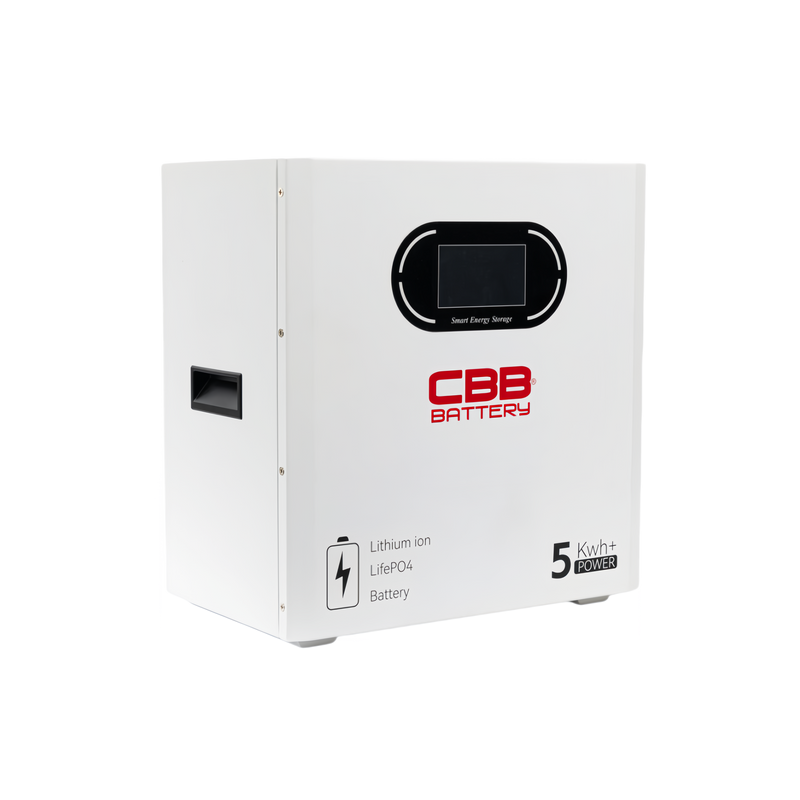

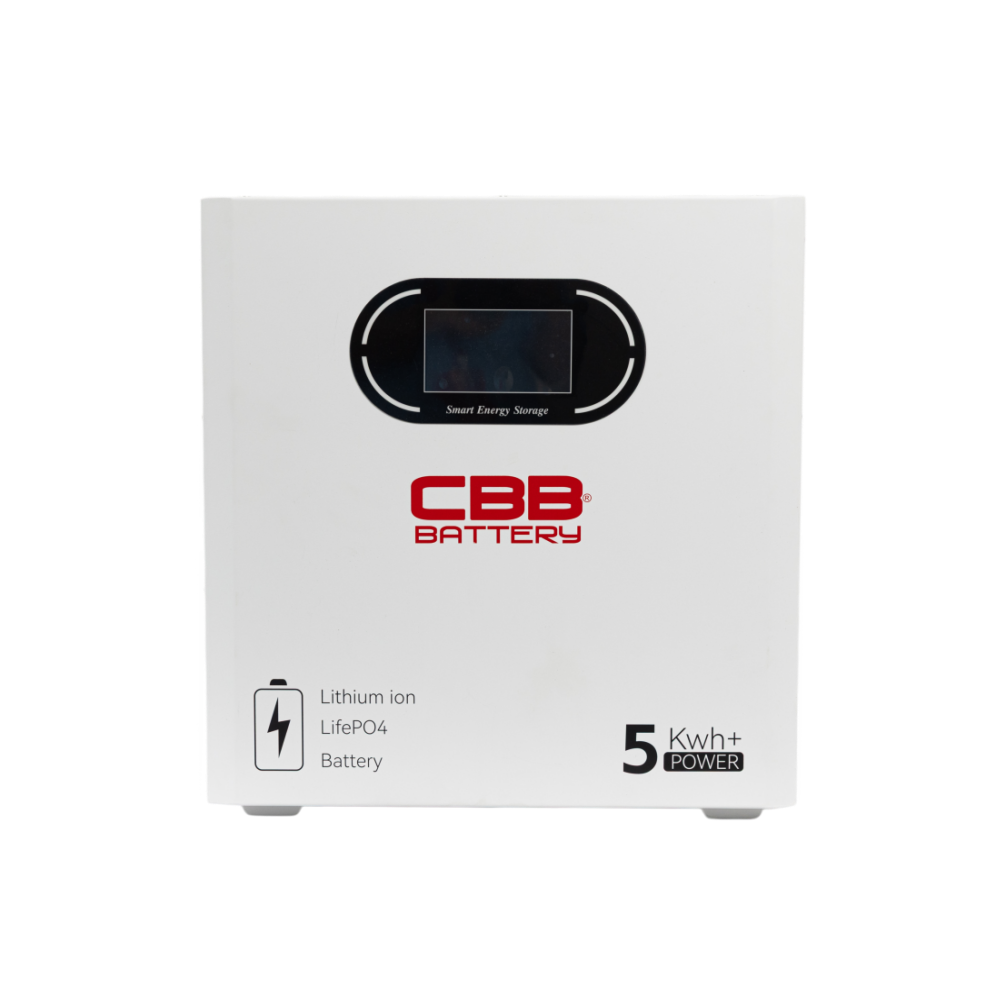

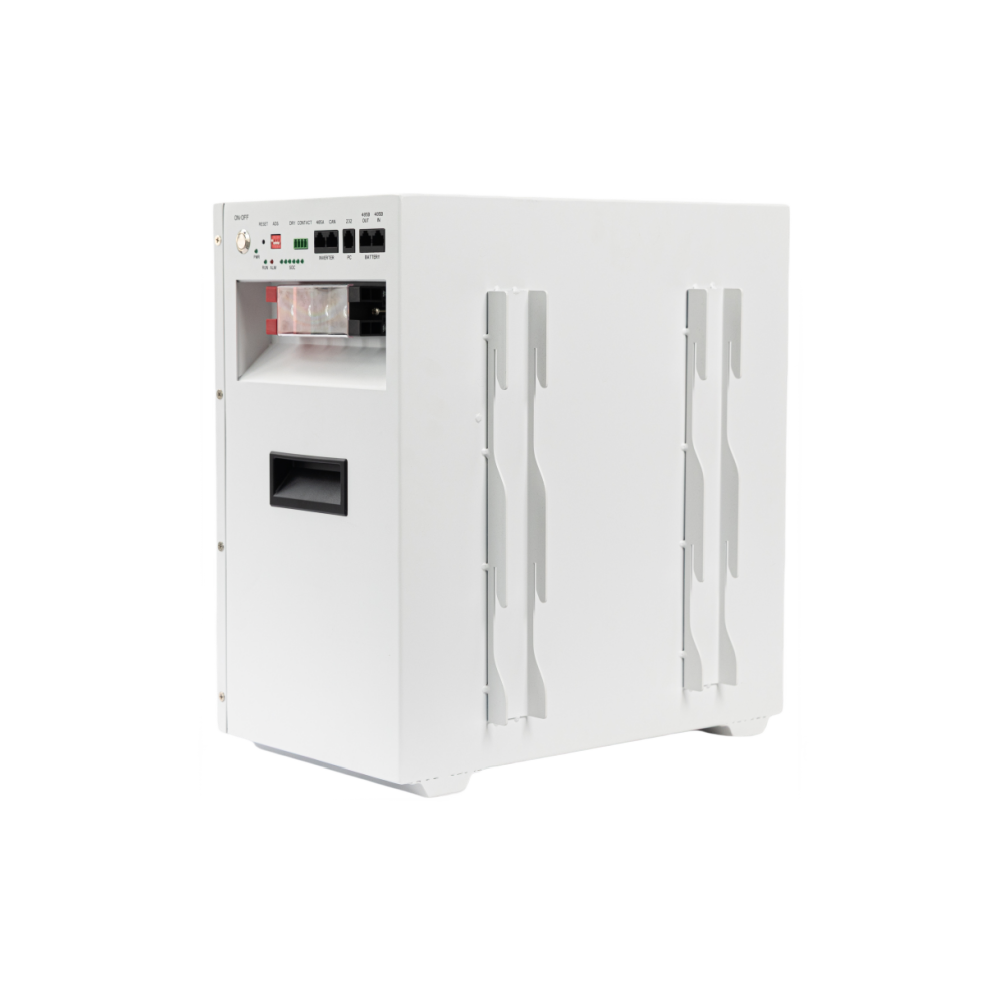

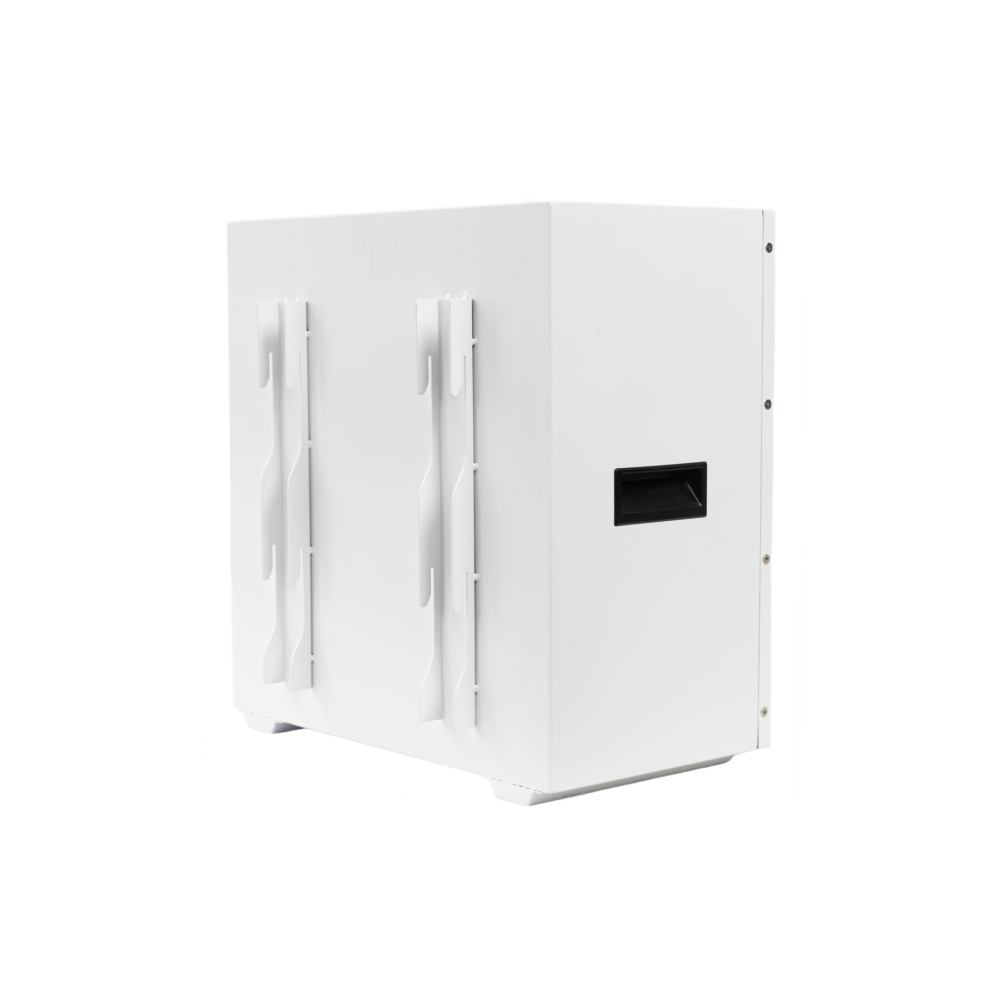

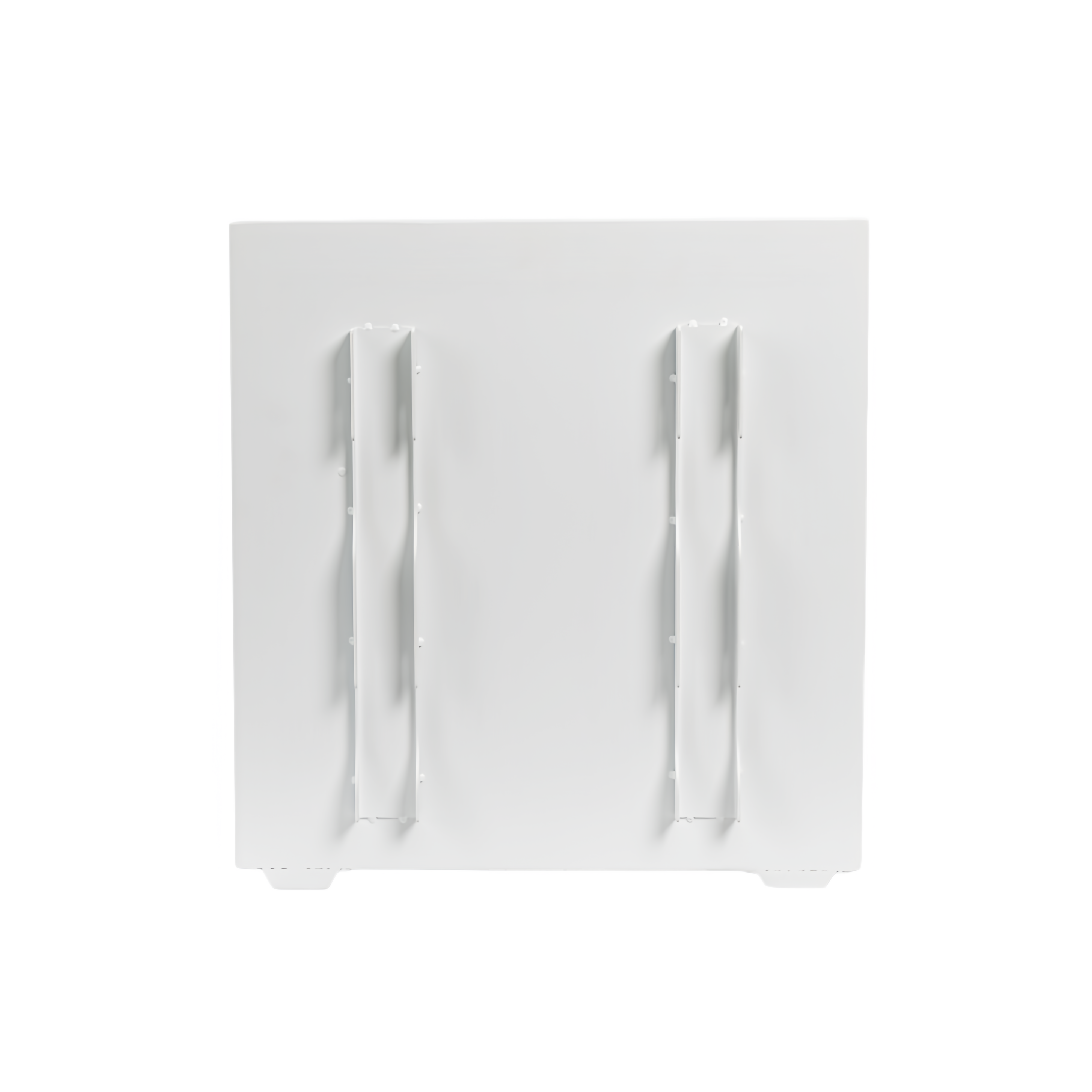

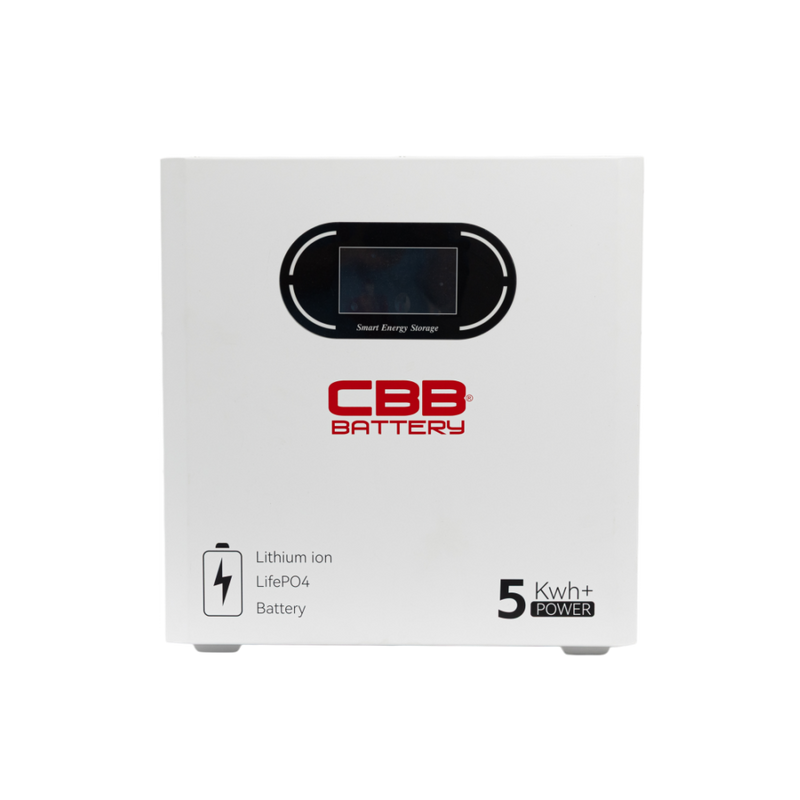

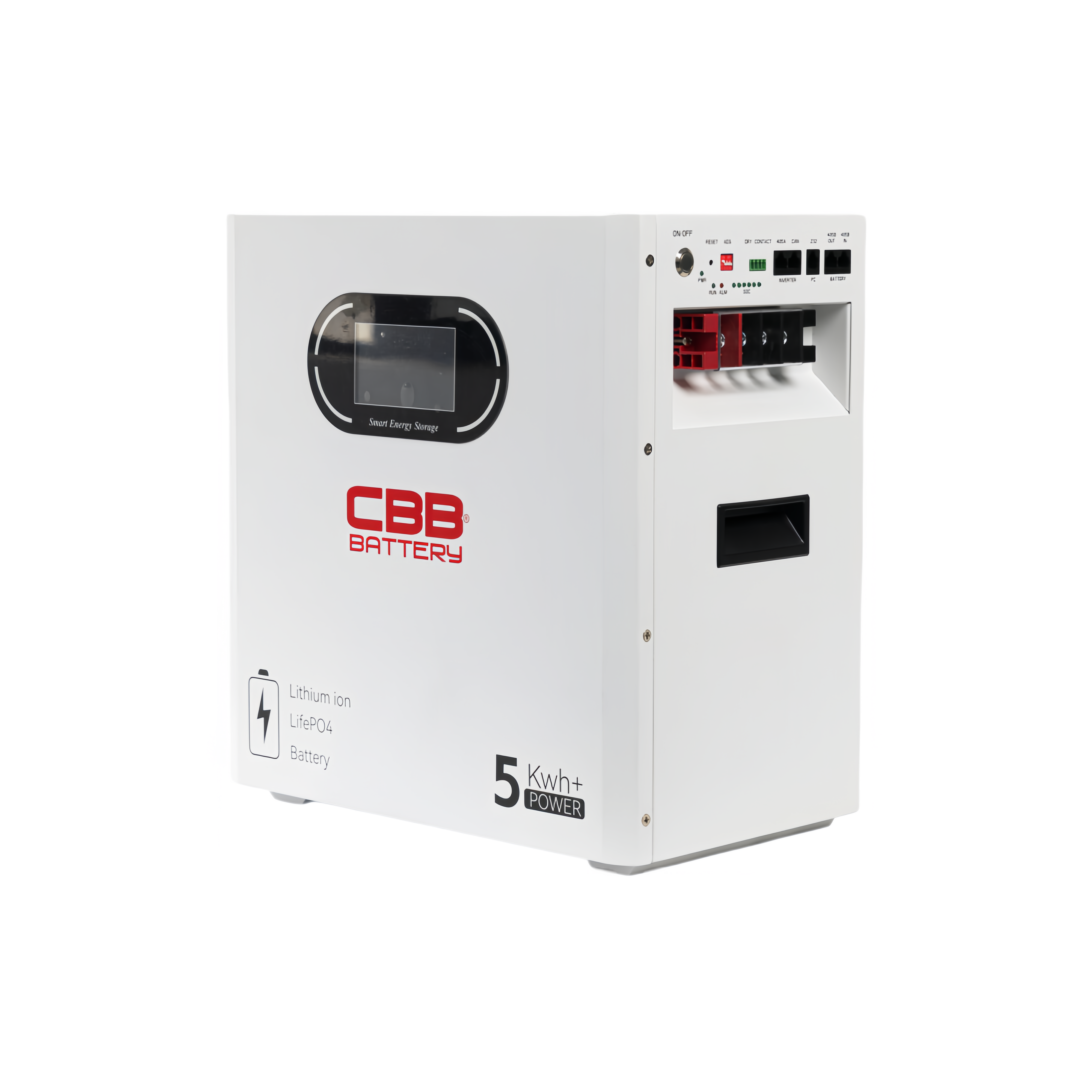

The CBB 25.6V 200Ah 5.12kWh Home Power Wall-Mounted Lithium Ion Battery is a high-capacity energy storage solution typically used for residential solar systems and emergency backup. It utilizes Lithium Iron Phosphate (LiFePO4)chemistry, which is preferred for its safety, thermal stability, and long service life.

Technical Specifications

• Capacity & Energy: 200Ah rated capacity providing 5.12kWh of total energy.

• Nominal Voltage: 25.6V (often compatible with 24V solar inverters).

• Cycle Life: Typically >6000 cycles at 80% Depth of Discharge (DOD), translating to a design life of 10–15 years.

• Dimensions: Approximately 650 x 384 x 142 mm for standard wall-mounted models.

• Weight: Generally ranges between 45kg and 56kg depending on the specific manufacturer's casing and internal cell density.

Key Features & Benefits

• Safety & Protection: Includes an integrated Battery Management System (BMS)that protects against overcharge, over-discharge, short circuits, and extreme temperature fluctuations.

• Scalability: Most units support parallel connection of up to 12 to 16 units, allowing for capacity expansion up to 80kWh+ as energy needs grow.

• Monitoring: High-end models often feature an LCD color display or Bluetooth connectivity to monitor state of charge (SOC), voltage, and health in real-time.

• Efficiency: Offers high round-trip efficiency (95%–99%) and fast charging capabilities.

• Compatibility: Designed to integrate with mainstream hybrid and off-grid inverters such as Victron, Deye, Goodwe, and LuxPower via CAN or RS485 communication ports.

APPLICATIONS

• Emergency power supply

• Home backup storage

• Telecommunications backup power

• Data storage/UPS backup power

• Off-grid power

• Solar power storage
