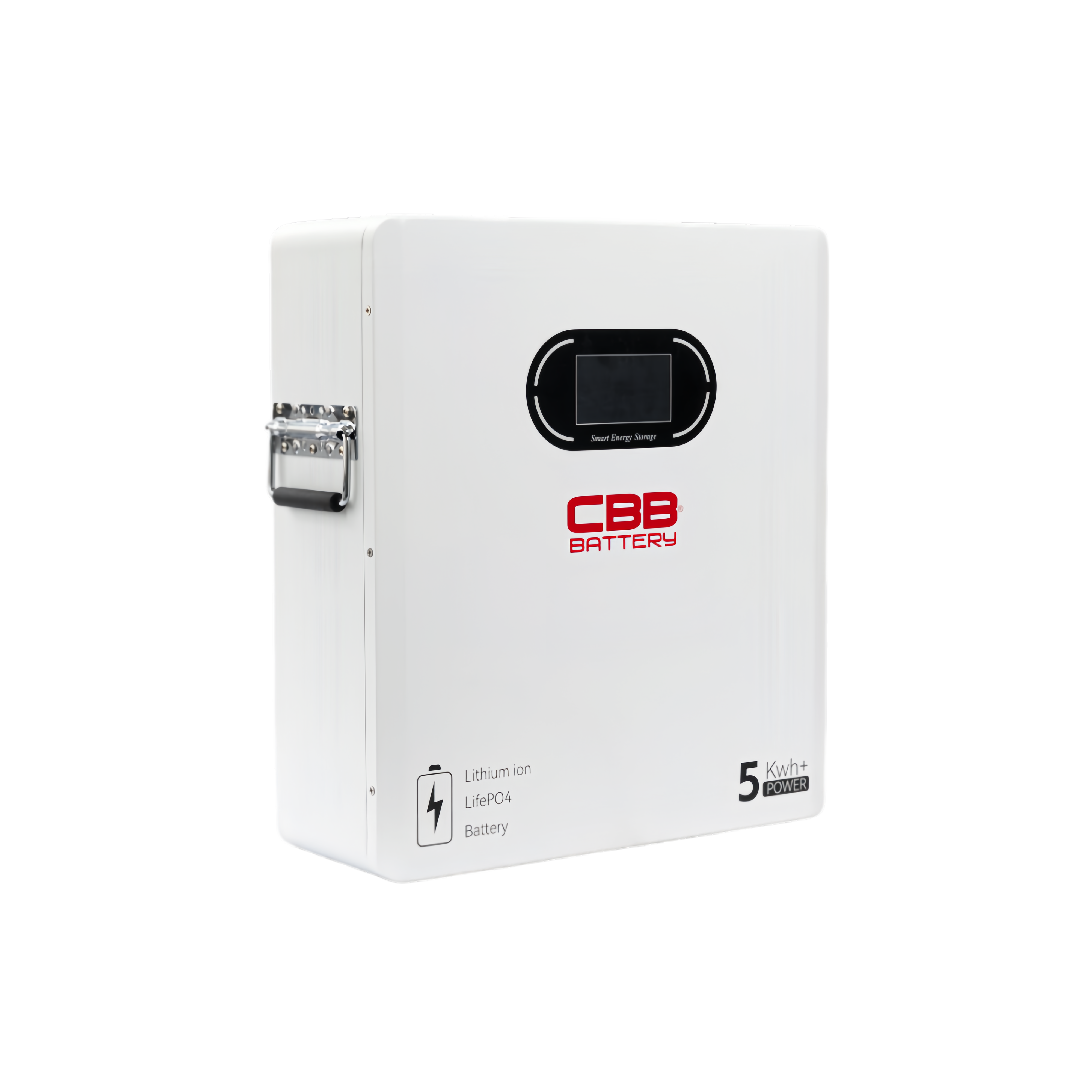

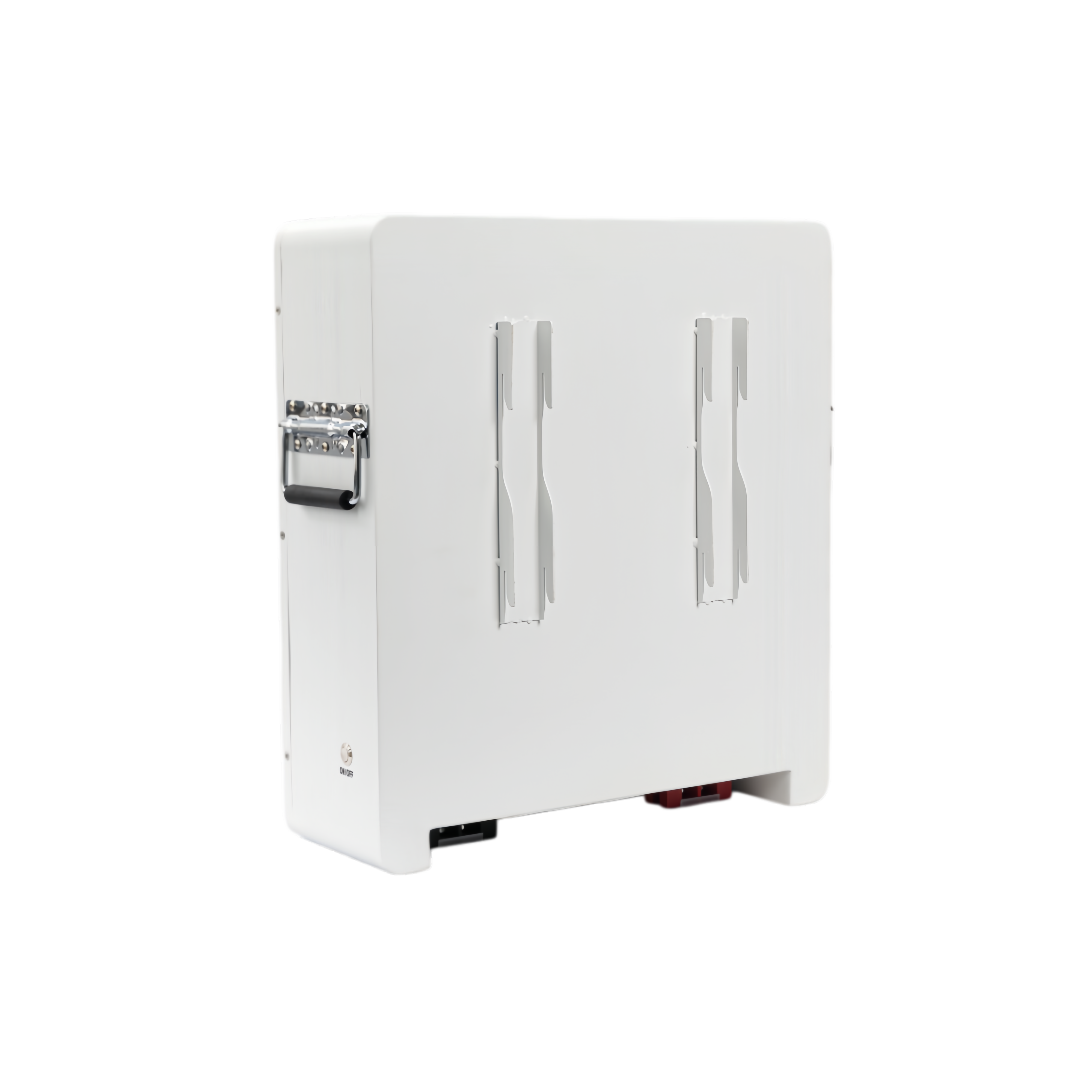

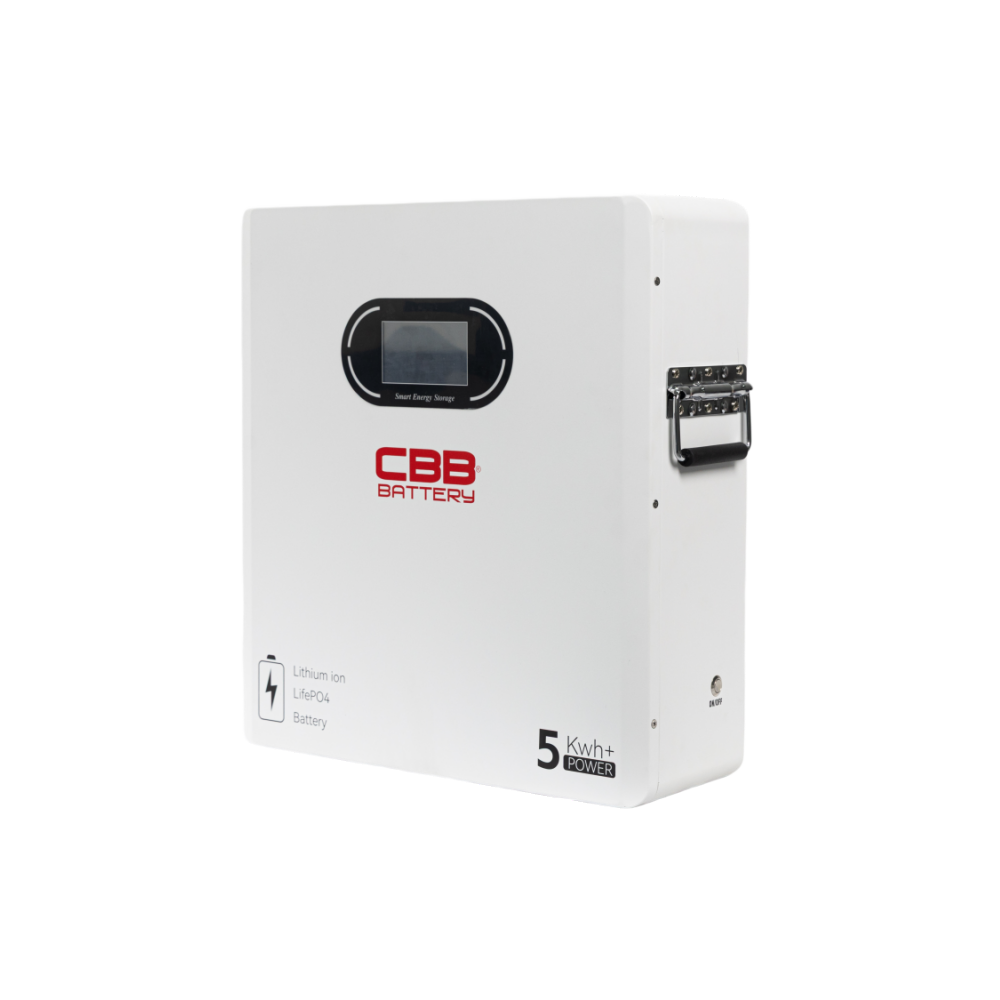

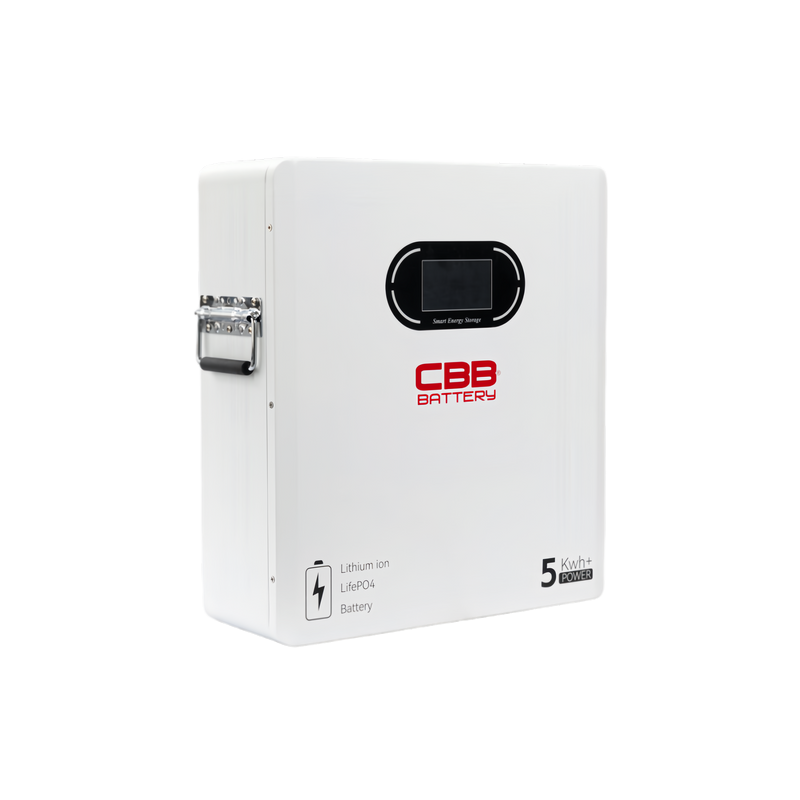

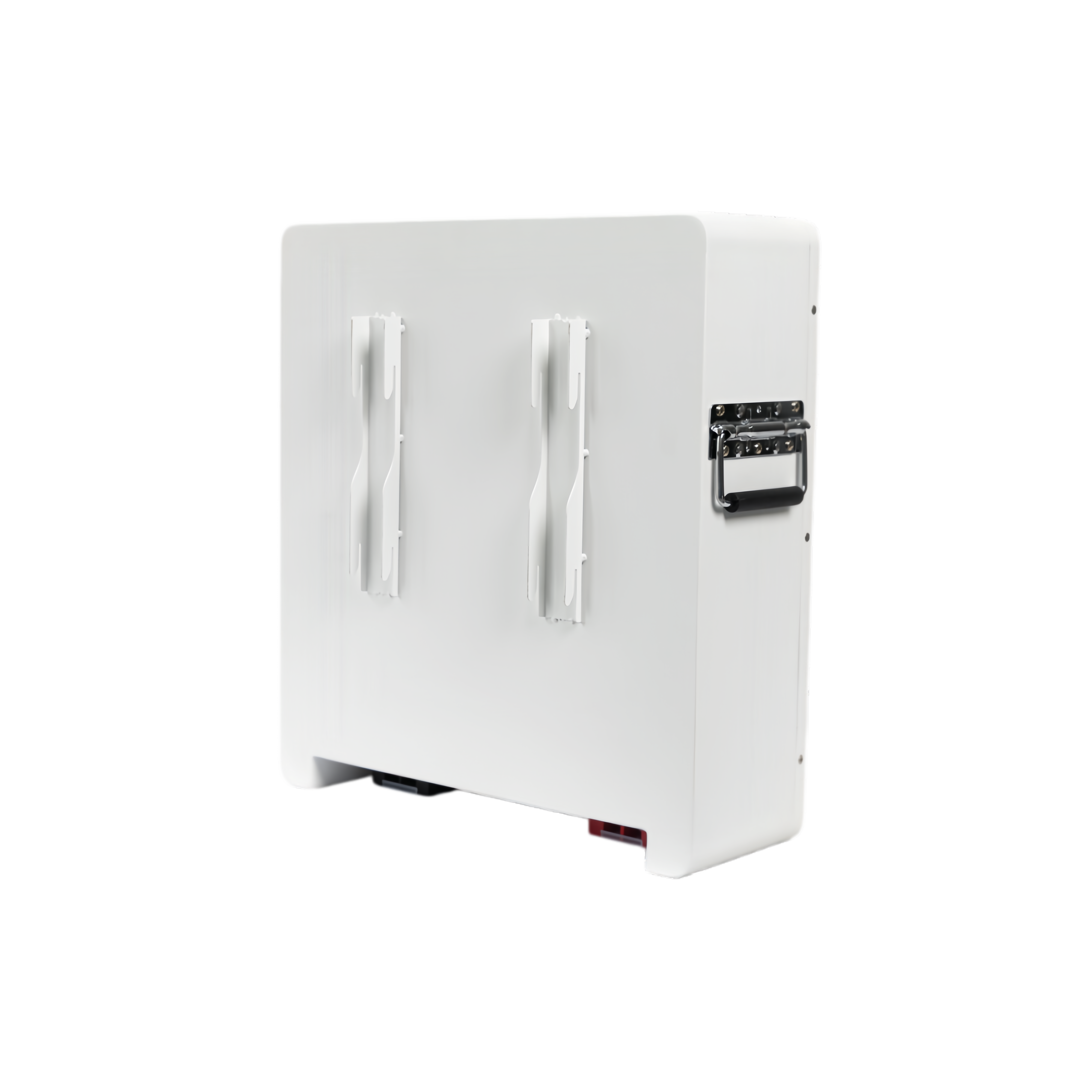

51.2V100Ah 5.12kWh CBB Powerwall Lithium Battery Home Energy Stoarge LiFePo4 Battery

CBB 51.2V 100Ah (5.12kWh) Powerwall is a high-capacity lithium iron phosphate (LiFePO4) battery designed for residential solar energy storage and backup power. These wall-mounted units typically feature an integrated Battery Management System (BMS) to ensure safety and long-term reliability.

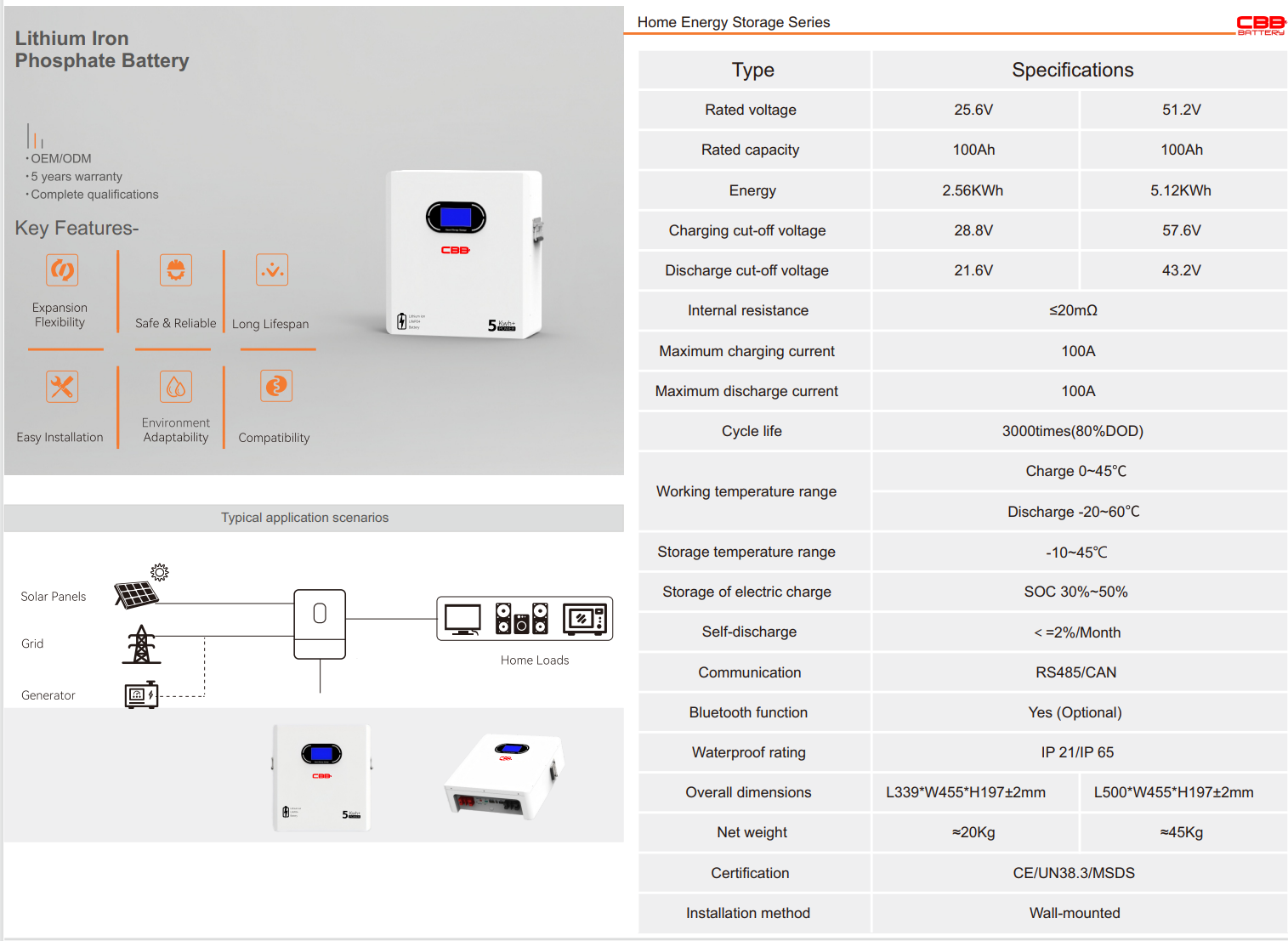

Key Specifications & Features

• Capacity: 100Ah providing 5.12kWh of total energy storage.

• Chemistry: Uses LiFePO4 (Lithium Iron Phosphate) technology, which is noted for being safer and more thermally stable than other lithium chemistries.

• Lifespan: Typically rated for 6,000 to 7,000+ cycles, which can translate to 10–15 years of use depending on discharge depth.

• Scalability: Most models allow for parallel connection of multiple units (often up to 15 or 16) to increase total storage capacity as needed.

• Compatibility: Designed to communicate with major inverter brands (such as Victron, Growatt, and Deye) via RS485, RS232, or CAN protocols.

• Safety: Features built-in protection against overcharging, deep discharge, short circuits, and overheating.

APPLICATIONS:

CBB 51.2V 100Ah (5.12kWh) Powerwall is a versatile energy storage solution used across residential, commercial, and industrial sectors. Its primary role is to bridge the gap between energy production and consumption, providing stability and cost savings.

Core Residential Applications

• Solar Self-Consumption: Stores excess energy from solar panels during the day for use at night, reducing reliance on the grid.

• Emergency Backup: Provides critical power during grid failures to run essential appliances like refrigerators, lights, fans, and medical equipment.

• Energy Arbitrage (Peak Shaving): Charges when electricity rates are low and discharges during expensive peak hours to lower utility bills.

• Off-Grid Living: Serves as the primary power source for cabins, shops, and remote homes where grid access is unavailable.

Commercial & Industrial Use

Telecommunications: Acts as a reliable power supply for telecom base stations and transceiver towers, ensuring constant connectivity.

Data Centers & UPS: Provides uninterruptible power for critical IT infrastructure and switching applications to prevent data loss.

Small Business Support: Scalable for offices and small industrial sites to balance loads and reduce operational energy costs.

Medical Facilities: Ensures stable operation for sensitive equipment in clinics or remote medical outposts.

Specialty & Mobile Applications

• Mobile Living (RV/Marine): Although primarily stationary, these are often used in RVs, motorhomes, and boats to power long-term off-grid adventures.

• Material Handling: Can be adapted for heavy equipment like forklifts, scissor lifts, and utility carts in warehouse environments.

• Public Infrastructure: Powers solar street lighting and traffic signals where wiring to the main grid is difficult or costly.
