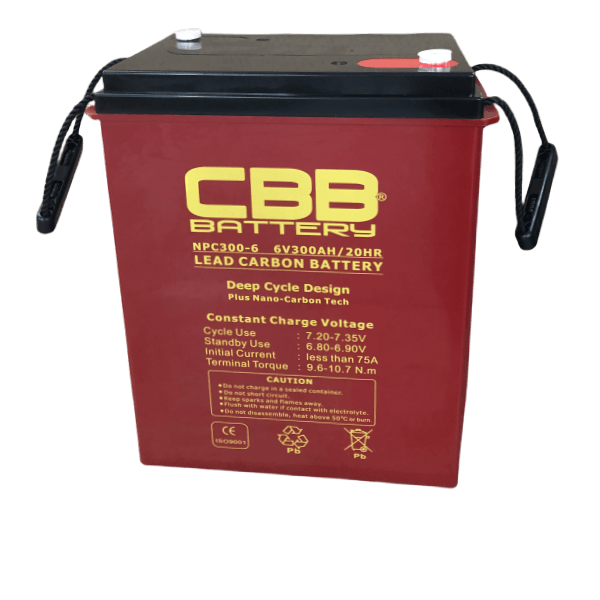

6V300AH High Quality Deep Cycle Lead Carbon Battery NPC300-6

Share to:

6V300AH High Quality Deep Cycle Lead Carbon Battery NPC300-6

CBB® NPC Series-Lead Carbon Battery for Renewable Energy Storage and PSoC Applications
The NPC series features the advanced Deep Cycle Battery technology for maximum cycle life in a space efficient, cost effetive package. The Deep Cycle Battery technology coupled with an advanced CBB Nano-Carbon enhanced negative electrode provides time proven results and unmatched, industry leading cycle life, even in partial state of charge (PSoC) operation.

Model:
NPC300-6
Brand:
Koyama
Description :
6V 300AH High Quality Deep Cycle Lead Carbon Battery NPC300-6
Unit Price:
US $ 173.20

Availability:

Quantity:



Inquiry

Product Description

CBB® NPC Series-Lead Carbon Battery for Renewable Energy Storage and PSoC Applications

The NPC series features the advanced Deep Cycle Battery technology for maximum cycle life in a space efficient, cost effetive package. The Deep Cycle Battery technology coupled with an advanced CBB Nano-Carbon enhanced negative electrode provides time proven results and unmatched, industry leading cycle life, even in partial state of charge (PSoC) operation.

Features

Long life cycle service design:

• Proven CBB DCS technology

• Excellent PSoC and cyclic performance

12V: * 60% DOD 3000

* 80% DOD 1000

2V: * 60% DOD 3000

* 60% DOD 3000

Leading Charging Acceptance

• Maximum charge current 0.6C, 300% than normal VRLA

• 0.2C to full charging lower than 7 Hrs

Compliant to major global specifications

• BS 6290: Part4:1997

• IEC 60896-21/22

• Telcordia SR-4228

• Bellcore GR-63-CORE&GR-1089-CORE

• UL 94 V-2/V-0 Flame Retardant Polypropylene

Extreme Temperature Tolerance

• -20℃: 16% improve capacity

• +35℃: 60% improve cyclie life

Applications

• Storage & Hybrid Storage System

• Solar/Wind Power Systems

• Electric Tools, Vehicles And City Cleaning Machines And Other Cyclic Service Utilities

• Smart Power Grids And Micro Power Grids

• Renewable energy applicaitons needing PSoC

• Standby/Back-up

Lead Carbon Battery Specification

Model No	Industry No	Rated Voltage（V）	Capacity (Ah)	Dimension								Weight		Terminal
				Length		Width		Height		Total Height		kg	pound
				mm	inch	mm	inch	mm	inch	mm	inch	kg	pound
6V LEAD CARBON BATTERY
NPC200-6	27	6	200	306	12.05	168	6.61	220	8.66	226	8.90	31	68.20	T5-M8
NPC205-6	GC2/T105	6	205	260	10.24	180	7.09	246	9.69	252	9.92	30	66.00	T5-M8
NPC205-6DT	GC2/T105	6	205	260	10.24	180	7.09	246	9.69	266	9.92	30.3	66.66	DT-M8
NPC205-6AP	GC2/T105	6	205	260	10.24	180	7.09	246	9.69	266	9.92	30	66.66	AP
NPC225-6	DIN/TE35	6	225	243	9.57	187	7.36	275	10.83	275	10.83	32.5	71.50	T5-M8
NPC225-6AP	DIN/TE35	6	225	243	9.57	187	7.36	275	10.83	275	10.83	32.5	71.50	AP
NPC230-6	T125/T145	6	230	260	10.24	180	7.09	265	10.43	272	10.71	34.2	75.24	T5-M8
NPC230-6DT	T125/T145	6	230	260	10.24	180	7.09	265	10.43	285	10.71	34.5	75.90	DT-M8
NPC280-6	902/J305	6	280	295	11.61	178	7.01	346	13.94	350	14.17	45.8	100.76	T5-M8
NPC280-6DT	902/J305	6	280	295	11.61	178	7.01	346	13.94	365	14.17	46.1	101.42	DT-M8
NPC300-6	902/J305	6	300	295	11.61	178	7.01	346	13.94	350	14.17	46.5	102.30	T5-M8
NPC300-6DT	902/J305	6	300	295	11.61	178	7.01	346	13.94	365	14.17	46.8	102.96	DT-M8
NPC340-6	L16P	6	340	295	11.61	178	7.01	404	15.91	408	16.14	55	121.00	T5-M8
NPC340-6DT	L16P	6	340	295	11.61	178	7.01	404	15.91	424	16.14	55.3	121.66	DT-M8
NPC380-6	L16H	6	380	295	11.61	178	7.01	404	15.91	408	16.14	56.7	124.74	T5-M8
NPC3800-6DT	L16H	6	380	295	11.61	178	7.01	404	15.91	424	16.14	57	125.40	DT-M8
8V LEAD CARBON BATTERY
NPC150-8	T875/890	8	150	260	10.24	182	7.17	266	10.47	271	10.67	34.5	75.90	T5-M8
NPC150-8DT	T875/890	8	150	260	10.24	182	7.17	266	10.47	286	10.67	34.8	76.56	DT-M8
NPC180-8	GC8H	8	180	260	10.24	182	7.17	295	11.61	300	11.81	38.5	84.70	T5-M8
NPC180-8DT	GC8H	8	180	260	10.24	182	7.17	295	11.61	315	11.81	38.8	85.36	DT-M8
12V LEAD CARBON BATTERY
NPC20-12	N/A	12	20	166	6.54	175	6.89	126	4.96	126	4.96	8.4	18.48	T2-M6
NPC24-12	N/A	12	24	166	6.54	126	4.96	174	6.85	174	6.85	8.6	18.92	T2-M6
NPC30-12	U1	12	30	196	7.72	130	5.12	155	6.10	167	6.57	10.2	22.44	T2-M6
NPC35-12	U1L	12	35	198	7.80	166	6.54	174	6.85	174	6.85	14.0	30.80	T2-M6
NPC50-12	22NF	12	50	229	9.02	138	5.43	208	8.19	212	8.35	17.7	38.94	T3-M6
NPC60-12	93	12	70	350	13.78	167	6.57	178	7.01	178	7.01	23.0	50.60	T3-M6
NPC75-12	24	12	75	260	10.24	169	6.65	211	8.31	215	8.46	26	57.20	T3-M6
NPC75-12DT	24	12	75	260	10.24	169	6.65	211	8.31	231	9.09	26.2	57.64	DT-M8
NPC90-12	27	12	90	307	12.09	169	6.65	211	8.31	216	8.50	29.5	64.90	T4-M6
NPC90-12DT	27	12	90	307	12.09	169	6.65	211	8.31	231	9.09	30.2	66.44	DT-M8
NPC100-12	31	12	100	328	12.91	172	6.77	215	8.46	222	8.74	32	70.40	T4-M8
NPC100-12DT	31	12	100	328	12.91	172	6.77	215	8.46	235	9.25	32.3	71.06	DT-M8
NPC110-12	N/A	12	110	407	16.02	174	6.85	208	8.19	233	9.17	39.0	85.80	T5-M8
NPC120-12	J150	12	120	341	13.43	173	6.81	283	11.14	287	11.30	40.5	89.10	T5-M8
NPC120-12AP	J150	12	120	341	13.43	173	6.81	283	11.14	302	11.89	40.5	89.10	AP
NPC120-12B	J150	12	120	341	13.43	173	6.81	283	11.14	287	11.30	40.5	89.10	T4-M6
NPC120-12C	DIN	12	120	341	13.43	173	6.81	281	11.06	281	11.06	40.5	89.10	T4-M8
NPC1120-12CAP	DIN	12	120	341	13.43	173	6.81	281	11.06	284	11.18	40.5	89.10	AP
NPC135-12	N/A	12	135	484	19.06	171	6.73	241	9.49	241	9.49	45.5	100.10	T4-M8
NPC135-12B	T1275	12	135	328	12.91	182	7.17	264	10.39	271	10.67	43.5	95.70	T4-M8
NPC180-12	4D	12	180	532	20.94	206	8.11	215	8.46	219	8.62	58.5	128.70	T4-M8
NPC200-12	4D	12	200	522	20.55	240	9.45	219	8.62	223	8.78	64.8	142.56	T5-M8
NPC220-12	8D	12	220	520	20.47	268	10.55	203	7.99	207	8.15	70.8	155.76	T5-M8
NPC240-12	8D	12	240	520	20.47	268	10.55	220	8.66	224	8.82	76.5	168.30	T5-M8
