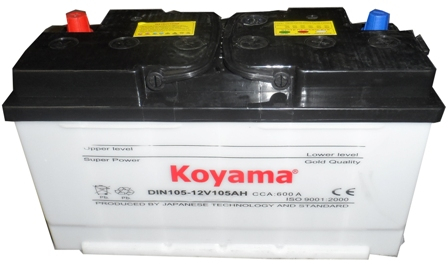

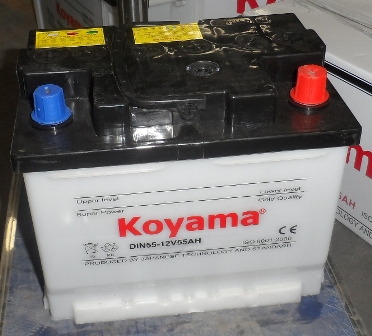

Koyama Dry Charge Auto Battery is designed to offer incredible cranking power, capacity and vibration resistance. It has advantages of longer life to hot or cold climate and lower discharge .Koyama Standard line fits most of Japanese,European and American Vehicles on the road in the world today. it includes passenger car and commercial batteries ,and heay duty truck batteries.
| Quantity: | |
|---|---|
| DIN: Dry-charge Automotive Batteries & Heavy Duty Truck Batteries | ||||||||||||
| DIN GR No | EN & DIN Number | Capacity | R.C. | CCA | Dimensions (mm) | Layout | Termi. | Weight | Data Sheet | |||
| C20(Ah) | (min.) | (EN) | L | W | H | TH | (Kgs) | |||||
| JIS B20 | 53520 | 35 | 52 | 330 | 198 | 128 | 200 | 220 | 0 | B | 7 | |
| 53522 | 35 | 52 | 330 | 198 | 128 | 200 | 220 | 1 | B | 7 | ||
| LB1 | 53621 | 36 | 53 | 330 | 210 | 175 | 175 | 175 | 0 | A | 7.7 | |
| 53638 | 36 | 53 | 330 | 210 | 175 | 175 | 175 | 1 | A | 7.0 | ||
| L1 | 54449 | 44 | 64 | 390 | 210 | 175 | 190 | 190 | 1 | A | 7.8 | |
| 54459 | 44 | 64 | 390 | 210 | 175 | 190 | 190 | 0 | A | 7.8 | ||
| JIS B24 | 54523 | 45 | 70 | 390 | 240 | 128 | 204 | 225 | 0 | A | 8.5 | |
| 54524 | 45 | 70 | 390 | 240 | 128 | 204 | 225 | 1 | A | 8.5 | ||
| LB2 | 54519 | 45 | 72 | 400 | 240 | 175 | 175 | 175 | 0 | A | 8.7 | |
| 54549 | 45 | 72 | 400 | 240 | 175 | 175 | 175 | 1 | A | 8.7 | ||
| 55040 | 50 | 78 | 450 | 240 | 175 | 175 | 175 | 0 | A | 9.5 | ||
| L2 | 55559/30 | 55 | 78 | 480 | 240 | 175 | 190 | 190 | 0 | A | 10.2 | |
| 55565 | 55 | 85 | 480 | 240 | 175 | 190 | 190 | 1 | A | 10.2 | ||
| 56030 | 60 | 95 | 500 | 240 | 175 | 190 | 190 | 0 | A | 10.8 | ||
| 56031 | 60 | 95 | 500 | 240 | 175 | 190 | 190 | 1 | A | 10.8 | ||
| JIS D26 | 56048 | 60 | 98 | 500 | 261 | 175 | 205 | 225 | 1 | A | 10.4 | |
| 56049 | 60 | 98 | 500 | 261 | 175 | 205 | 225 | 0 | A | 10.4 | ||
| JIS D23 | 56068 | 60 | 100 | 500 | 230 | 170 | 200 | 220 | 0 | A | 10.4 | |
| 56069 | 60 | 100 | 500 | 230 | 170 | 200 | 220 | 1 | A | 10.4 | ||
| LB3 | 56318 | 63 | 100 | 530 | 275 | 175 | 175 | 175 | 0 | A | 10.8 | |
| 56818 | 68 | 106 | 540 | 275 | 175 | 175 | 175 | 0 | A | 11.6 | ||
| JIS D26 | 57024 | 70 | 130 | 560 | 261 | 175 | 205 | 225 | 1 | A | 12 | |
| 57029 | 70 | 130 | 560 | 261 | 175 | 205 | 225 | 0 | A | 12 | ||
| LB3 | 56618 | 66 | 106 | 520 | 275 | 175 | 190 | 190 | 0 | A | 11.2 | |
| 57032 | 70 | 106 | 530 | 275 | 175 | 190 | 190 | 1 | A | 11.2 | ||
| 57028 | 70 | 106 | 530 | 275 | 175 | 190 | 190 | 0 | A | 11.2 | ||
| 57412 | 74 | 134 | 640 | 275 | 175 | 190 | 190 | 0 | A | 12.8 | ||
| 57413 | 74 | 134 | 640 | 275 | 175 | 190 | 190 | 1 | A | 12.8 | ||
| 57531 | 75 | 134 | 640 | 275 | 175 | 190 | 190 | 0 | A | 12.8 | ||
| JIS D31 | 58514 | 85 | 95 | 650 | 307 | 175 | 202 | 225 | 0 | A | 13.9 | |
| 58515 | 85 | 95 | 650 | 307 | 175 | 202 | 225 | 1 | A | 13.9 | ||
| LB5 | 58815 | 88 | 144 | 680 | 350 | 175 | 175 | 174 | 0 | A | 14.9 | |
| 58821 | 88 | 144 | 680 | 350 | 175 | 175 | 174 | 1 | A | 14.9 | ||
| D3 | 59017 | 90 | 164 | 690 | 355 | 175 | 190 | 213 | 1 | A | 13.5 | |
| 59615 | 96 | 170 | 690 | 355 | 175 | 190 | 213 | 1 | A | 14.3 | ||
| L5 | 60038 | 100 | 176 | 760 | 353 | 175 | 190 | 190 | 0 | A | 16.6 | |
| E41 | 60527 | 105 | 175 | 760 | 404 | 172 | 205 | 225 | 0 | A / F | 16.9 | |
| F51 | 62034 | 120 | 232 | 850 | 506 | 182 | 193 | 214 | 3 | A | 19.4 | |
| 62038 | 120 | 232 | 850 | 506 | 182 | 193 | 214 | 4 | A | 19.4 | ||
| 64020 | 140 | 250 | 900 | 506 | 182 | 193 | 214 | 3 | A | 20.3 | ||
| G51 | 64317 | 143 | 300 | 950 | 506 | 216 | 193 | 214 | 3 | A | 22.8 | |
| 64318 | 143 | 300 | 950 | 506 | 216 | 193 | 214 | 4 | A | 22.8 | ||
| 65031 | 150 | 310 | 970 | 506 | 216 | 193 | 214 | 3 | A | 22.8 | ||
| 67018 | 170 | 320 | 1000 | 506 | 216 | 193 | 214 | 3 | A | 23.5 | ||
| 67019 | 170 | 320 | 1000 | 506 | 216 | 193 | 214 | 4 | A | 23.5 | ||
| H52 | 68029 | 180 | 365 | 1050 | 515 | 265 | 215 | 238 | 4 | A | 29.8 | |
| 70027 | 200 | 430 | 1100 | 515 | 265 | 215 | 238 | 3 | A | 31.1 | ||
| 72027 | 220 | 450 | 1200 | 515 | 265 | 215 | 238 | 3 | A | 34.8 | ||
