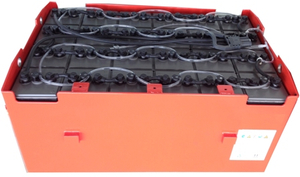

DIN Forklift Traction Battery

KOYAMA Forklift Traction battery DIN Series-OPZS198 is mainly used as DC for portage truck, forklift in mining,warehouses and docks, and can also be used as correlative power supply in other aspects.

Quantity:
PZS198 DIN Series Forklift Traction Battery
Model No
(Data Sheet)
Rated Capacity
 (Ah)
Rated Voltage
(V)
Overall dimensions(mm) Reference weight(kg) Container material Terminal Quantity
LENGTH WIDTH HEIGHT TOTAL HEIGHT WITHOUT ACID WITH ACID


L W H H



2PzS120 120 2 47 198 360 390 6.5 8.5 pp 2
3PzS180 180 2 65 198 360 390 9 12 pp 2
4PzS240 240 2 83 198 360 390 11.5 15.5 pp 2
5PzS300 300 2 101 198 360 390 14 19 pp 2
6PzS360 360 2 119 198 360 390 16.8 22.5 pp 2
7PzS420 420 2 137 198 360 390 19.4 26 pp 2 OR 4
8PzS480 480 2 155 198 360 390 22 30 pp 2or4
9PzS540 540 2 173 198 360 390 25 33.5 pp 2or4
10PzS600 600 2 191 198 360 390 28.8 37.5 pp 2or4
12PzS720 720 2 227 198 360 390 32 41 pp 4
2PzS140 140 2 47 198 405 435 8 10.5 pp 2
3PzS210 210 2 65 198 405 435 11 15 pp 2
4PzS280 280 2 83 198 405 435 14 19 pp 2
5PzS350 350 2 101 198 405 435 17.5 24 pp 2
6PzS420 420 2 119 198 405 435 20.5 28 pp 2
7PzS490 490 2 137 198 405 435 23.5 32.5 pp 2or4
8PzS560 560 2 155 198 405 435 27 37 pp 2or4
9PzS630 630 2 173 198 405 435 30.5 41.5 pp 2or4
10PzS700 700 2 191 198 405 435 33.5 46 pp 2or4
12PzS840 840 2 227 198 405 435 36.5 52 pp 4
2PzS160 160 2 47 198 450 480 9.5 12.5 pp 2
3PzS240 240 2 65 198 450 480 13 17.5 pp 2
4PzS320 320 2 83 198 450 480 17 23 pp 2
5PzS400 400 2 101 198 450 480 20.5 27.5 pp 2
6PzS480 480 2 119 198 450 480 23.5 32.5 pp 2
7PzS560 560 2 137 198 450 480 27 38 pp 2or4
8PzS640 640 2 155 198 450 480 31 43 pp 2or4
9PzS720 720 2 173 198 450 480 36.5 49.5 pp 2or4
10PzS800 800 2 191 198 450 480 38.5 53 pp 2or4
12PzS960 960 2 227 198 450 480 41 58 pp 4
2PzS180 180 2 47 198 525 560 9 12 pp 2
3PzS270 270 2 65 198 525 560 12 17 pp 2
4PzS360 360 2 83 198 525 560 15.5 22 pp 2
5PzS450 450 2 101 198 525 560 19 27 pp 2
6PzS540 540 2 119 198 525 560 21.5 31.5 pp 2
7PzS630 630 2 137 198 525 560 25.5 36.5 pp 2or4
8PzS720 720 2 155 198 525 560 29 42 pp 2or4
9PzS810 810 2 173 198 525 560 31.5 46.5 pp 2or4
10PzS900 900 2 191 198 525 560 35.5 50.5 pp 2or4
12PzS1080 1080 2 227 198 525 560 38.5 56 pp 4
2PzS200 200 2 47 198 570 600 10 13.5 pp 2
3PzS300 300 2 65 198 570 600 14.5 20 pp 2
4PzS400 400 2 83 198 570 600 18.5 25.5 pp 2
5PzS500 500 2 101 198 570 600 22 31 pp 2
6PzS600 600 2 119 198 570 600 26.5 37 pp 2
7PzS700 700 2 137 198 570 600 30.5 43 pp 2or4
8PzS800 800 2 155 198 570 600 34.5 49 pp 2or4
9PzS900 900 2 173 198 570 600 39.5 55 pp 2or4
10PzS1000 1000 2 191 198 570 600 42.5 60.5 pp 2or4
12PzS1200 1200 2 227 198 570 600 46.5 65 pp 4
4PzS460H 460 2 83 198 690 720 22 30 pp 2
2PzS240 240 2 47 198 690 720 12 16 pp 2

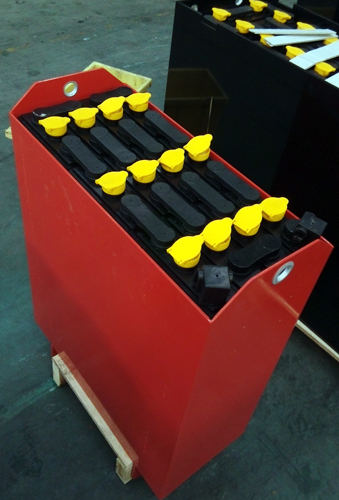

3PzS360 360 2 65 198 690 720 17 24 pp 2
4PzS480 480 2 83 198 690 720 22 32 pp 2
5PzS600 600 2 101 198 690 720 27 40 pp 2
6PzS720 720 2 119 198 690 720 32 48.5 pp 2
7PzS840 840 2 137 198 690 720 37 56 pp 2or4
8PzS960 960 2 155 198 690 720 43 64 pp 2or4
9PzS1080 1080 2 173 198 690 720 48 72 pp 2or4
10PzS1200 1200 2 191 198 690 720 54 80 pp 2or4
12PzS1440 1440 2 227 198 690 720 64 91 pp 4
2PzS280 280 2 47 198 720 750 15 19 pp 2
3PzS420 420 2 65 198 720 750 20 25.6 pp 2
4PzS560 560 2 83 198 720 750 26 33.6 pp 2
5PzS700 700 2 101 198 720 750 33 42 pp 2
6PzS840 840 2 119 198 720 750 39 50 pp 2
7PzS980 980 2 137 198 720 750 45.5 58.5 pp 2or4
8PzS1120 1120 2 155 198 720 750 52 66 pp 2or4
9PzS1260 1260 2 173 198 720 750 58 74.5 pp 2or4
10PzS1400 1400 2 191 198 720 750 63 81.3 pp 2or4
12PzS1680 1680 2 227 198 720 750 73 93 pp 4


• Robust, flooded tubular technology.

• Highest standards of design, materials and workmanship.

• Outstanding deep cycling capacity & reliability.

 • Manufactured to exacting ISO9001 standard &DIN/EN 60 254-2(IEC 254-1) specifications.

 • Spines of antimonial lead filled with lead oxide and less maintenance.



•Traction lead-acid battery is used as DC power source for electric vehicles which widely used in  airport,  railway station, seaport and mining etc.

•Traction lead-acid battery is used as a cleaning pollution-free DC power source

•Traction lead-acid battery is used used in public communication, sports, and entertainment etc.

cbb battery terminal 1 cbb battery terminal 2
