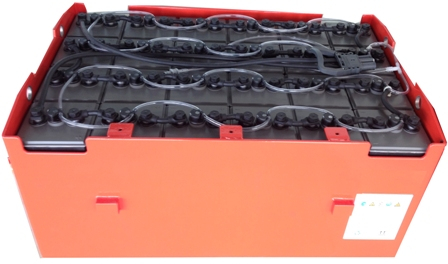

UK Forklift Traction Battery

KOYAMA Forklift Traction battery UK Series-VBS158 is mainly used as DC for portage truck, forklift in mining,warehouses and docks, and can also be used as correlative power supply in other aspects.

Quantity:
VBS158 UK Series Forklift Traction Battery
Model No
(Data Sheet)
Rated     Capacity     (Ah/5HR) Rated Voltage
 (V)
Overall dimensions(mm) Reference weight(kg) Container material Terminal Quantity
LENGTH WIDTH HEIGHT TOTAL HEIGHT WITHOUT ACID WITH ACID



L W H H



2VBS100 100 2 45 158 385 420 5.8 7.5 PP 2
3VBS150 150 2 61 158 385 420 7.5 10 PP 2

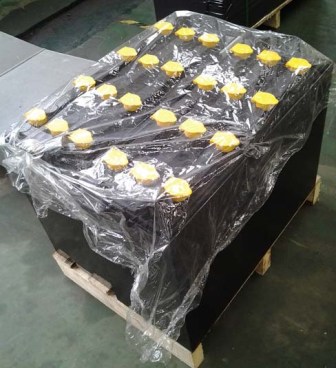

4VBS200 200 2 77 158 385 420 9.5 13 PP 2
5VBS250 250 2 93 158 385 420 12 16 PP 2
6VBS300 300 2 109 158 385 420 15 20 PP 2or4
7VBS350 350 2 125 158 385 420 17 23 PP 2or4
8VBS400 400 2 141 158 385 420 20 27 PP 2or4
9VBS450 450 2 157 158 385 420 22.5 30 PP 2or4
10VBS500 500 2 173 158 385 420 24.5 33 PP 2or4
11VBS550 550 2 189 158 385 420 27 36 PP 4
12VBS600 600 2 205 158 385 420 29 39 PP 4
13VBS650 650 2 221 158 385 420 31 42 PP 4
14VBS700 700 2 237 158 385 420 33 45 PP 4
15VBS750 750 2 253 158 385 420 35.5 48 PP 4
2VBS110 110 2 45 158
465 6.7 8.5 PP 2
3VBS165 165 2 61 158 431 465 8.7 11.5 PP 2
4VBS220 220 2 77 158 431 465 11.3 15 PP 2
5VBS275 275 2 93 158 431 465 13.4 18 PP 2
6VBS330 330 2 109 158 431 465 15.5 21 PP 2or4
7VBS385 385 2 125 158 431 465 17.5 24 PP 2or4
8VBS440 440 2 141 158 431 465 19.5 27.5 PP 2or4
9VBS495 495 2 157 158 431 465 22 30.5 PP 2or4
10VBS550 550 2 173 158 431 465 25.5 34.5 PP 2or4
11VBS605 605 2 189 158 431 465 27.5 37.5 PP 4
12VBS660 660 2 205 158 431 465 30 41 PP 4
13VBS715 715 2 221 158 431 465 32 44 pp 4
14VBS770 770 2 237 158 431 465 34 47 pp 4
15VBS825 825 2 253 158 431 465 36.5 50.5 pp 4
2VBS120 120 2 45 158 445 480 6.9 9 pp 2
3VBS180 180 2 61 158 445 480 9.7 12.6 pp 2
4VBS240 240 2 77 158 445 480 12.4 16.2 pp 2
5VBS300 300 2 93 158 445 480 15.1 19.8 pp 2
6VBS360 360 2 109 158 445 480 17.8 23.4 pp 2or4
7VBS420 420 2 125 158 445 480 20.5 27 pp 2or4
8VBS480 480 2 141 158 445 480 23.2 30.6 pp 2or4
9VBS540 540 2 157 158 445 480 26 34.2 pp 2or4
10VBS600 600 2 173 158 445 480 28.7 37.8 pp 2or4
11VBS660 660 2 189 158 445 480 32 41.4 pp 4
12VBS720 720 2 205 158 445 480 34 44 pp 4
13VBS780 780 2 221 158 445 480 36 47 pp 4
14VBS840 840 2 237 158 445 480 38 51 pp 4
15VBS900 900 2 253 158 445 480 40 54 pp 4
2VBS140 140 2 45 158 495 525 7.6 10 pp 2
3VBS210 210 2 61 158 495 525 10 13.5 pp 2
4VBS280 280 2 77 158 495 525 13 18 pp 2
4VBS300H 300 2 89 158 495 525 16 21 pp 2
5VBS350 350 2 93 158 495 525 18 24 pp 2
6VBS420 420 2 109 158 495 525 21 28 pp 2or4
7VBS490 490 2 125 158 495 525 23 31 pp 2or4
8VBS560 560 2 141 158 495 525 25 34 pp 2or4
9VBS630 630 2 157 158 495 525 27.5 38 pp 2or4
10VBS700 700 2 173 158 495 525 30 41 pp 2or4
11VBS770 770 2 189 158 495 525 33 46 pp 4
12VBS840 840 2 205 158 495 525 36 50 pp 4
13VBS910 910 2 221 158 495 525 39.5 55 pp 4
14VBS980 980 2 237 158 495 525 42.5 59 pp 4
15VBS1050 1050 2 253 158 495 525 45 63 pp 4
2VBS160 160 2 45 158 525 560 8.5 11 pp 2

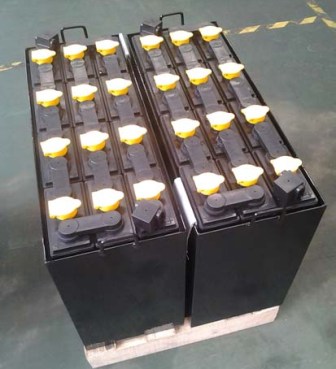

3VBS240 240 2 61 158 525 560 12.4 16.5 pp 2
4VBS320 320 2 77 158 525 560 16 23 pp 2
5VBS400 400 2 93 158 525 560 20 27 pp 2
6VBS480 480 2 109 158 525 560 24 35 pp 2or4
7VBS560 560 2 125 158 525 560 30 41 pp 2or4
8VBS640 640 2 141 158 525 560 34.5 48 pp 2or4
9VBS720 720 2 157 158 525 560 39 54 pp 2or4
10VBS800 800 2 173 158 525 560 44 61 pp 2or4
11VBS880 880 2 189 158 525 560 49 66 pp 4
12VBS960 960 2 205 158 525 560 52 72 pp 4
13VBS1040 1040 2 221 158 525 560 57 79 pp 4
14VBS1120 1120 2 237 158 525 560 62 86 pp 4
15VBS1200 1200 2 253 158 525 560 67.5 93 pp 4
2VBS180 180 2 45 158 600 635 10 14 pp 2
3VBS270 270 2 61 158 600 635 14 18 pp 2
4VBS360 360 2 77 158 600 635 18 23.5 pp 2
5VBS450 450 2 93 158 600 635 24 30 pp 2
6VBS540 540 2 109 158 600 635 28 36 pp 2or4
7VBS630 630 2 125 158 600 635 42 42 pp 2or4
8VBS720 720 2 141 158 600 635 36 48 pp 2or4
9VBS810 810 2 157 158 600 635 40 54 pp 2or4
10VBS900 900 2 173 158 600 635 44 61 pp 2or4
11VBS990 990 2 189 158 600 635 48 67 pp 4
12VBS1080 1080 2 205 158 600 635 52 73 pp 4
13VBS1170 1170 2 221 158 600 635 57 79 pp 4
14VBS1260 1260 2 237 158 600 635 62 86 pp 4
15VBS1350 1350 2 253 158 600 635 64 93 pp 4
2VBS200 200 2 45 158 690 720 10.5 13 pp 2
3VBS300 300 2 61 158 690 720 13 18 pp 2
4VBS400 400 2 77 158 690 720 16.5 21 pp 2
5VBS500 500 2 93 158 690 720 20 28 pp 2
6VBS600 600 2 109 158 690 720 23 33 pp 2or4
7VBS700 700 2 125 158 690 720 26 38 pp 2or4
8VBS800 800 2 141 158 690 720 30 42 pp 2or4
9VBS900 900 2 157 158 690 720 33 47 pp 2or4
10VBS1000 1000 2 173 158 690 720 37 52 pp 2or4
11VBS1100 1100 2 189 158 690 720 40 57 pp 4
12VBS1200 1200 2 205 158 690 720 44 62 pp 4
13VBS1300 1300 2 221 158 690 720 48 67 pp 4
14VBS1400 1400 2 237 158 690 720 52 72 pp 4
15VBS1300 1500 2 253 158 690 720 56 78 pp 4


• Robust, flooded tubular technology.

• Highest standards of design, materials and workmanship.

• Outstanding deep cycling capacity & reliability.

 • Manufactured to exacting ISO9001 standard &DIN/EN 60 254-2(IEC 254-1) specifications.

 • Spines of antimonial lead filled with lead oxide and less maintenance.



•Traction lead-acid battery is used as DC power source for electric vehicles which widely used in  airport,  railway station, seaport and mining etc.

•Traction lead-acid battery is used as a cleaning pollution-free DC power source

•Traction lead-acid battery is used used in public communication, sports, and entertainment etc.

cbb battery terminal 1 cbb battery terminal 2
