Floor Cleaning Gel Deep-Cycle Battery

Floor Cleaning Battery are built to deliver superior performance, durability and reliability; these batteries utilize the highest quality components and meet the challenges of the toughest, hilliest courses in the world.

The utmost gel technology is engineered with an advanced feature set that provides outstanding sustained performance and total energy output, delivering the exceptional quality and reliability CBB batteries are known for.
CBB Gel deep-cycle long-range golf and electric vehicle battery delivers 35% more travel time between recharging, enabling consumers to embark on longer excursions.

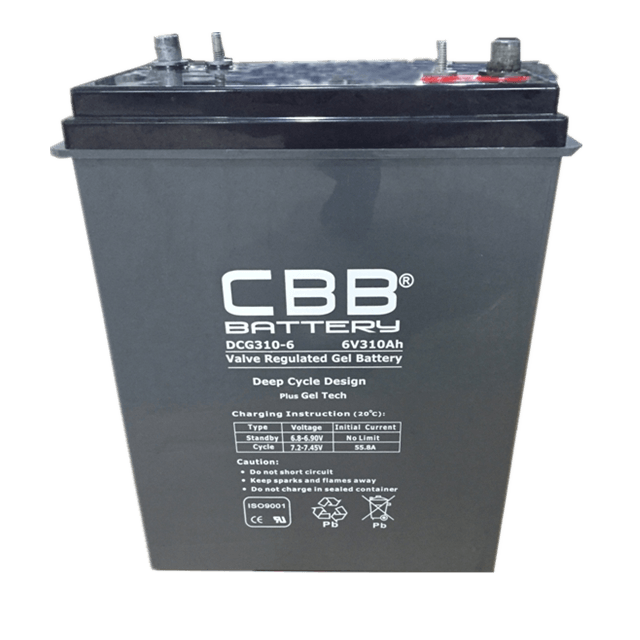

  • DCG310-6DT
  • KOYAMA ,CBB ,BESTART
  • 85072000
  • deep cycle gel battery with long life and high temperature performance
Quantity:
Model No Industry No Rated Voltage (V) Capacity (Ah) Dimension Weight Terminal Type
Length Width Height Total Height kg
 mm mm  mm  mm
6V FLOOR CLEANING DEEP CYCLE GEL BATTERY
DCG210-6.pdf GC2/T105 6 210 260 180 247 252 29.6 T5/AP
DCG225-6.pdf DIN-TE35 6 225 243 187 275 275 30.6 T5
DCG225-6AP.pdf DIN-TE35AP 6 225 243 187 275 275 30.6 T5
DCG226-6.pdf GC2H/T125 6 226 260 180 247 252 30.2 T5/AP
DCG250-6.pdf GC2H/T145 6 226 260 187 265 272 34.7 T5/AP
DCG310-6.pdf 902/J305 6 310 295 178 354 360 46.2 T5
DCG310-6DT.pdf 902/J305 6 310 295 178 354 360 46.2 DT
DCG330-6AT.pdf 902/J305 6 330 295 178 354 360 46.8 T5/DT
DCG380-6.pdf L16 6 380 295 178 404 410 55.5 T5
DCG380-6DT.pdf L16 6 380 295 178 404 410 55.5 DT
DCG420-6.pdf L16 6 420 295 178 404 410 57 T5
DCG420-6DT.pdf L16 6 420 295 178 404 410 57 DT
8V FLOOR CLEANING DEEP CYCLE GEL BATTERY
DCG170-8.pdf GC8-T875 8 170 260 182 266 271 34.2 T5
DCG200-8.pdf GC8H-T890 8 200 260 182 295 301 38.2 T5
12V FLOOR CLEANING DEEP CYCLE GEL BATTERY
DCG35-12.pdf U1 12 35 196 130 155 167 10.6 T3
DCG40-12.pdf U1L 12 40 198 166 174 174 14.3 T3
DCG55-12.pdf 22NF 12 55 229 138 208 212 16.1 T3
DCG70-12.pdf 93 12 70 350 167 178 178 23.4 T3/AP
DCG75-12.pdf 24 12 75 260 169 211 215 25.1 T3/AP
DCG85-12.pdf 24 12 85 260 169 211 215 26.2 T3/AP
DCG90-12.pdf 27 12 90 307 169 211 216 28.3 T3/T4/AP
DCG100-12.pdf 27 12 100 307 169 211 216 30.3 T4
DCG100-12AP.pdf 27 12 100 307 169 211 216 30.3 AP
DCG110-12.pdf 31 12 110 331 174 214 220 33.5 T4
DCG110-12AP.pdf 31 12 110 331 174 214 220 33.5 AP
DCG110-12B.pdf 31 12 110 328 172 217 222 32.8 T4
DCG120-12.pdf N/A 12 120 407 173 210 233 39.5 T5/AP
DCG135-12.pdf N/A 12 135 341 173 283 288 41 T5
DCG135-12AP.pdf N/A 12 135 341 173 283 288 41 AP
DCG150-12.pdf N/A 12 150 484 171 241 241 45.7 T5/AP
DCG150-12B.pdf (DIN) 12 150 328 182 267 272 44.4 T5/AP
DCG240-12.pdf 8D 12 240 520 269 203 209 71.3 T5/AP
DCG260-12.pdf 8D 12 260 520 268 220 226 77.3 T5/AP


• The success of DCG batteries comes from the internationally superior Gel technology

• Excellent energy storage capacity combined with high reliability

• Designed in accordance with IEC 60254-1

• 700 Cycles at 75%DOD

• 7 years design life at 20 °C ambient temperature (80% remaining capacity from C20)

• Grid plate construction consisting of a lead calcium alloy

• Very low gassing due to the internal gas recombination

• High cycle service life

• Better temperature resistance performance

• Excellent deep cycle performance

• Superior low current discharge performance

• Better charge acceptability

• Better safety performance and reliability

• High Performance price/ratio and low yearly operating cost

• Non-Spillable construction design

• Safety valve installation for explosion proof

• Low self discharge characteristic

• ABS containers and covers (UL94HB, UL94V-0 optional)

• Gel-batteries are designed to be operated within a wide temperature range –40° C and +55° C

• Maintenance-free (no topping up) motive power batteries in gel technology

• Completely recyclable

• other power drive equipment, etc



.FLOOR CLEANING MACHINE

.battery powered walk-behind sweeper

.battery walk-behind sweeper

.battery floor scrubber

.burnisher

.compact battery walk-behind sweeper

.carpet extractor

.carpet maintainer

.extractors

.large battery walk-behind sweeper

.outdoor

.rider burnisher

.scrubber

.sweeper

.sweeper/scrubber

.vacuum

.floors

.wet/dry vacuum

.carpet extractor



cbb battery terminal 1cbb battery terminal 2

1.DCG series-Deep Cycle Gel Battery Brochure
