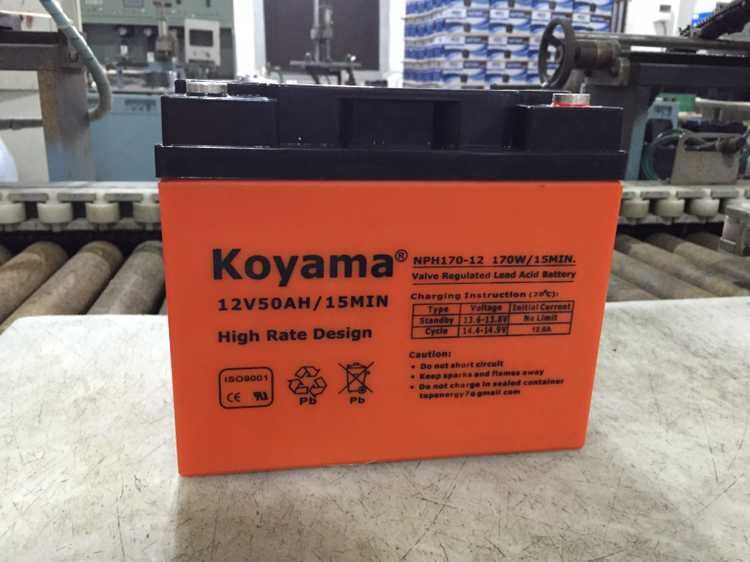

High Rate Gel Battery

KOYAMA NPHG series battery use strong grids and specially designed active material, the NPH series offers stable performance during high current discharge. It offers extremely high power output at 15 minutes backup time with 5~12 years design life. It is highly suited for high rate UPS/EPS systems and power switchgear applications.
Availability:
Quantity:
Model No
(Data Sheet)
Rated Power(W/Cell) Capacity (Ah/10hr) Dimension Weight Terminal Type
Length Width Height Total Height kg pound
 mm inch mm inch  mm inch  mm inch
NPHG115-12 115/15Min 28 165 6.50 126 4.96 174 6.85 174 6.85 8.7 19.1 T3
NPHG145-12 145/15Min 34 196 7.72 130 5.12 155 6.10 167 6.57 11.0 24.2 T3
NPHG170-12 170/15Min 42 197 7.76 166 6.54 174 6.85 174 6.85 13.8 30.4 T3
NPHG300-12 300/15Min 80 260 10.24 169 6.65 211 8.31 215 8.46 25.0 55.0 T3
NPHG370-12 370/15Min 95 307 12.09 169 6.65 211 8.31 215 8.46 31.0 68.2 T3
NPHG420-12 420/15Min 110 331 13.03 174 6.85 214 8.43 219 8.62 34.0 74.8 T4

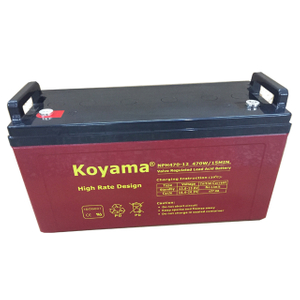

NPHG470-12 470/15Min 135 407 16.02 174 6.85 210 8.27 233 9.17 39.0 85.8 T5
 NPHG520-12 520//15Min 150 484 19.06 171 6.73 241 9.49 241 9.49 47.0 103.4 T4
NPHG680-12 680/15Min 170 532 20.94 206 8.11 216 8.50 222 8.74 58.5 128.7 T5
NPHG770-12 770/15Min 220 522 20.55 240 9.45 219 8.62 224 8.82 68.0 149.6 T6
NPHG800-12 800/15Min 230 520 20.47 269 10.59 204 8.03 209 8.23 70.0 154.0 T6
NPHG900-12 900/15Min 255 520 20.47 268 10.55 220 8.66 225 8.86 79.0 173.8 T6
NPHG720-6 720/15Min 180 260 10.24 180 7.09 247 9.72 251 9.88 30.8 67.8 T5


• Designed service life of 10-15 years

• High cycle service life

• Better temperature resistance performance

• Excellent deep cycle performance

• Superior low current discharge performance

• Stronger constant power discharge capability

• Better charge acceptability

• Better safety performance and reliability

• Modular and personified installation design

• High Performance price/ratio and low yearly operating cost

• Non-Spillable construction design.

• Safety valve installation for explosion proof.

• Low self discharge characteristic.

• Exceptional deep discharge recovery performance.

• ABS containers and covers(UL94HB,UL94V-0) optional.

• Gel-batteries are designed to be operated within a wide temperature range –40° C and +55° C.

• Solar power systems

• Wind power systems

• Micro hydro systems

• Hybrid power systems

• Mining

• Telecommunications

• Rural infrastructure

• Village electrification

• Power generation

• Railways

cbb battery terminal 1 cbb battery terminal 2
