7S25Ah-CBB01-A
CBB/KOYAMA
8507600090
| Quantity: | |
|---|---|
Datasheet
Item | 7S25Ah-CBB01-A | ||
BMS | with Smart BMS | ||
Nominal Voltage | 24V | ||
Nominal Capacity | 25Ah | ||
Charge Current | ≤25A | ||
Discharge Current | ≤37.5A | ||
Instantaneous Discharge Current | 50A | ||
Internal Resistance | ≤100mΩ | ||
Life Cycle | ≥ 800 cycles | ||
Communication | RS485&RS232 | ||
Weight | 5.2Kg±0.2Kg | ||
Dimension | L160mm*W160mm*H155mm |

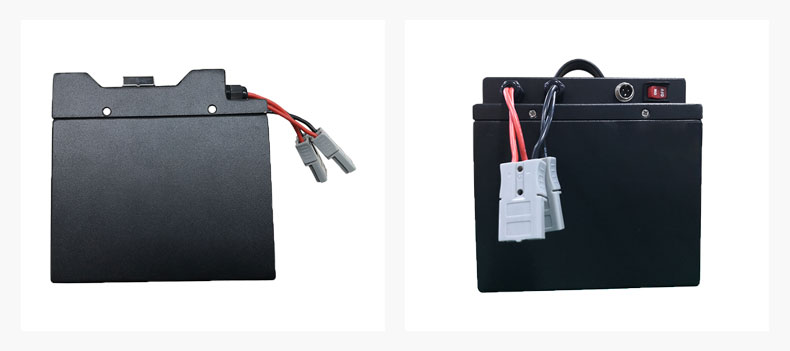

Our Product
Our Advantage
Customized lithium ion battery
Grade A cells, with real capacity
Sustainable charging current can be reached 1C
With built-in smart BMS to monitor battery status and protect battery in real time
The Application
