24V 30AH AGV lithium battery pack 7S30Ah-CBB03-A

24V 30AH AGV lithium battery pack 7S30Ah-CBB03-A
  • 7S30Ah-CBB03-A

  • CBB/KOYAMA

  • 8507600090

Availability:
Quantity:

Datasheet


Item

                                   7S30Ah-CBB03-A

BMS

  with Smart BMS

Nominal Voltage

24V

Nominal Capacity

30Ah

Charge Current

≤15A

Discharge Current

≤30A

 Instantaneous Discharge Current

15A

Internal Resistance

≤100mΩ

Life Cycle

≥ 800 cycles

Communication

RS485&RS232

Weight

6.0Kg±0.2Kg


Dimension

       L160mm*W160mm*H155mm

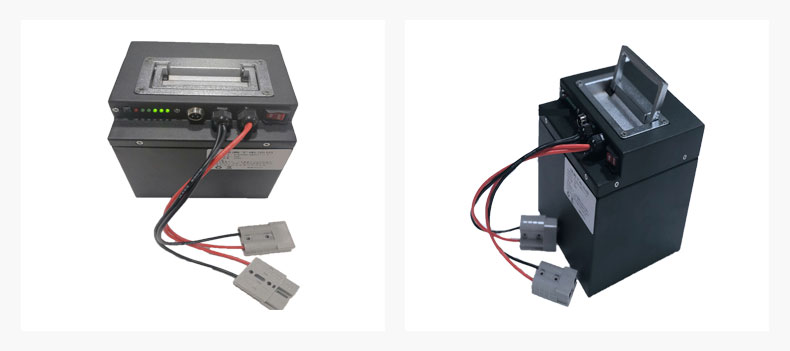

Our Product

dc971c9d4b0efbd1d65cc2cf35c4f7f0

Technical Parameter

Our Advantage


Customized lithium ion battery

Grade A cells, with real capacity

Sustainable charging current can be reached 1C

With built-in smart BMS to monitor battery status and protect battery in real time


The Application

ed23548904096a4b28c6e3f97c414997
