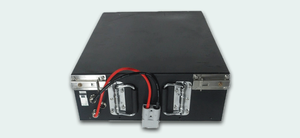

24V 50AH AGV lithium battery pack 7S50Ah-CCB01-A

24V 50AH AGV lithium battery pack 7S50Ah-CCB01-A
  • 7S50Ah-CCB01-A
  • CBB/KOYAMA
  • 8507600090
Quantity:

Datasheet


Item

                                 7S50Ah-CBB01-A

BMS

  with Smart BMS

Nominal Voltage

24V

Nominal Capacity

50Ah

Charge Current

≤40A

Discharge Current

≤50A

 Instantaneous Discharge Current

75A

Internal Resistance

≤100mΩ

Life Cycle

≥ 800 cycles

Communication

RS485&RS232

Weight

8.5Kg±0.2Kg

Dimension

       L360mm*W240mm*H75


Our Product

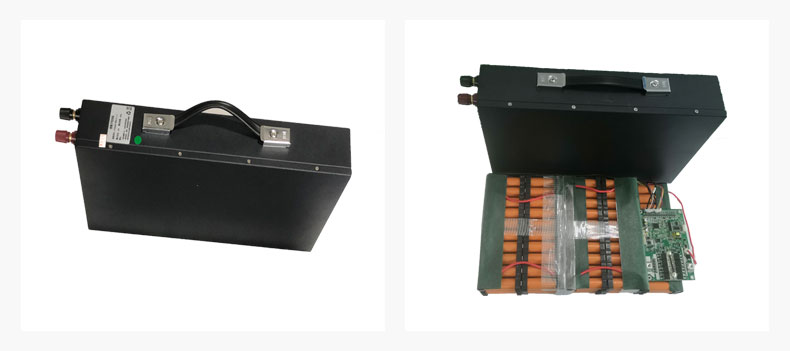

6b5832c046d320d8b50b56e5383467b5


Technical Parameter

Our Advantage


Customized lithium ion battery

Grade A cells, with real capacity

Sustainable charging current can be reached 1C

With built-in smart BMS to monitor battery status and protect battery in real time


The Application


ed23548904096a4b28c6e3f97c414997
