OPZV Tubular Gel Battery

KOYAMA OPZV Series Tubular battery adopts traditional Tubular gel technology .The products are designed as standby power for communication, power, military and broadcast and television system with excellent deep cycle performance. The design float life is 18+ at 25℃ (77℉).
The OPZV range batteries are ensured the quality with KOYAMA QA system according to the ISO9001 and ISO14001 standard.
Availability:
Quantity:
Inquiry


   Model No

(Data Sheet)

 Rated Rated Capacity Approx.   Dimensions
Terminal
Voltage  10Hr@ 1.80V/cell Length Width Height TH Weight
(V) (AH) mm mm mm mm kg
Tubular Gel OPzV Battery
4 OPzV200.pdf 2 200 103 206 355 390 18.8 M8
5 OPzV250.pdf 2 250 124 206 355 390 23.1 M8
6 OPzV300.pdf 2 300 145 206 355 390 27.1 M8
5 OPzV350.pdf 2 350 124 206 471 506 29 M8
6 OPzV420.pdf 2 420 145 206 471 506 34.5 M8
7 OPzV490.pdf 2 490 166 206 471 506 39 M8
6 OPzV600.pdf 2 600 145 206 646 681 46 M8

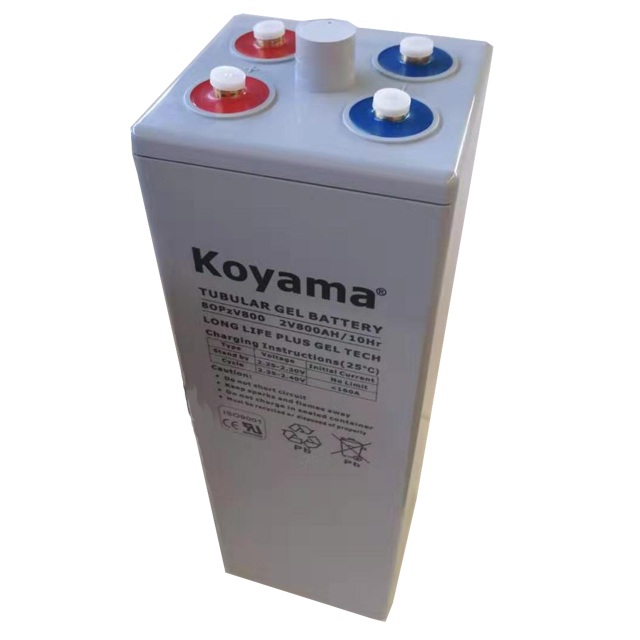

8 OPzV800.pdf 2 800 191 210 646 681 65.1 M8
10 OPzV1000.pdf 2 1000 233 210 646 681 78.5 M8
12 OPzV1200.pdf 2 1200 275 210 646 681 93 M8
12 OPzV1500.pdf 2 1500 275 210 796 831 115 M8
16 OPzV2000.pdf 2 2000 399 214 772 807 155 M8
20 OPzV2500.pdf 2 2500 487 212 772 807 196 M8
24 OPzV3000.pdf 2 3000 576 212 772 807 232 M8
12V 3OPzV100FT.pdf 12 100 551 110 287 287 39.7 M6
12V 3OPzV120FT.pdf 12 120 551 110 287 287 42.3 M6
12V 4OPzV150FT.pdf 12 150 549.5 124.5 315 315 51.7 M8
12V 2OPzV40.pdf 12 40 260 168 208 230 19 T14
12 2OPzV45.pdf 12 45 260 168 208 214 19.5 T14
12V 3OPzV60.pdf 12 60 260 168 208 229 23.7 T14
12V 4OPzV80.pdf 12 80 330 173 212 218 30.8 M8
12V 5OPzV100.pdf 12 100 408 177 225 225 38.3 M8
12V 6OPzV120.pdf 12 120 483 170 238.5 238.5 45.7 M8
12V 7OPzV140.pdf 12 140 532 207 214 220 54 M8
12V 8OPzV160.pdf 12 160 532 207 214 220 59.3 M8
12V 9OPzV180.pdf 12 180 522 240 218 224 67.4 M8
12V 10OPzV200.pdf 12 200 522 268 220 226 75.9 M8


• Reliable seal performance, no acid spillage, recombination efficiency reach 99.9%

• Initial capacity above 100%, the remaining capacity above 94% after storage for 3 months (25℃)

• Low float charge voltage. Design (2.23V/cell, 25℃), extremely consistent float charge voltage

• Flexible connectors and convenient installation

• Wide operating temperature range from -15°C to 60°C

• Tubular positive plate with prolonged cycle life

• Fumed Silica gel electrolyte

• Lead Calcium die cast grid with improved corrosion resistance capability

• Low self-discharge rate and long shelf life (1 year at 25°C)

• Excellent deep discharge recovery capability

• Telecommunications

• Motive power applications

• Railway and mining markets

• Uninterruptible power supply (UPS)

• Solar energy storage application

• Other applications to provide integrated stored energy system

cbb battery terminal 1 cbb battery terminal 2
1.DCG series-Deep Cycle Gel Battery Brochure
2.
Previous:
Next:
gel battery 2V battery tubular battery stationary battery OPZV battery
