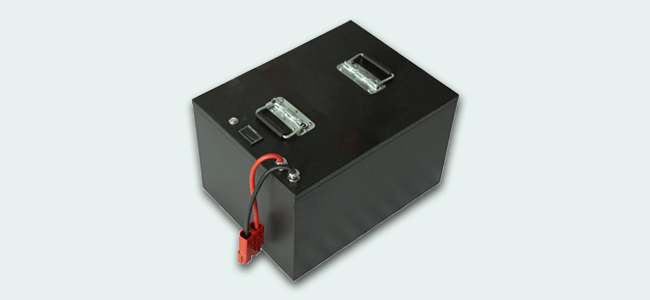

24V 100AH AGV lithium battery pack 8S100Ah-CBB01-A

24V 100AH AGV lithium battery pack 8S100Ah-CBB01-A
  • 8S100Ah-CBB01-A

  • CBB/KOYAMA

  • 8507600090

Availability:
Quantity:

Datasheet


Item

                                   8S100Ah-CBB01-A

BMS

  with Smart BMS

Nominal Voltage

24V

Nominal Capacity

100Ah

Charge Curren

≤50A

Discharge Current

≤100A

 Instantaneous Discharge Current

150A

Internal Resistance

≤150mΩ

Life Cycle

≥ 2000 cycles

Communication

RS485&RS232

Weight

20Kg±1Kg


Dimension

       L400mm*W200mm*H170mm


Our Product

71a17a2b2b9fdfdc2bb0c59da03fc2da

Technical Parameter

Our Advantage


Customized lithium ion battery

Grade A cells, with real capacity

Sustainable charging current can be reached 1C

With built-in smart BMS to monitor battery status and protect battery in real time

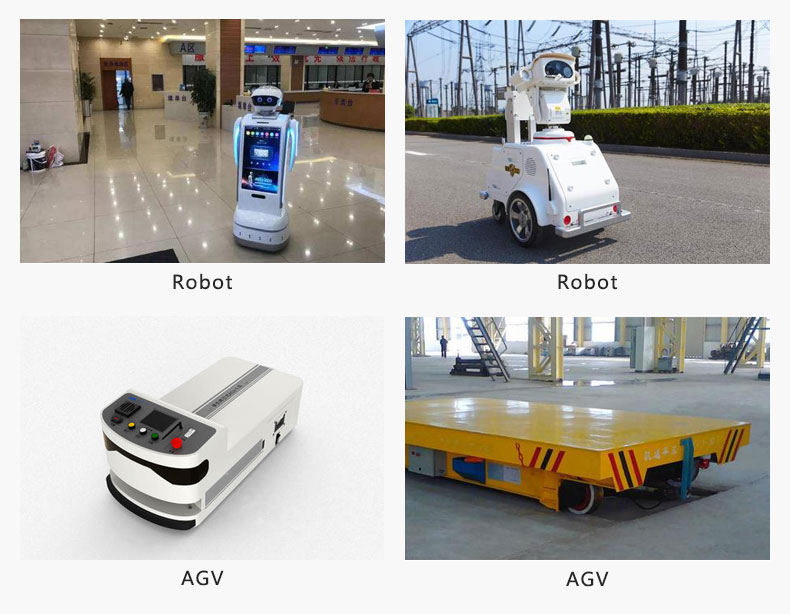

The Application


ed23548904096a4b28c6e3f97c414997
