24V 200AH AGV lithium battery pack 8S200Ah-CBB01-A

24V 200AH AGV lithium battery pack 8S200Ah-CBB01-A
  • 8S200Ah-CBB01-A

  • CBB/KOYAMA

  • 8507600090

Availability:
Quantity:

Datasheet


Item

                                   8S200Ah-CBB01-A

BMS

  with Smart BMS

Nominal Voltage

24V

Nominal Capacity

200Ah

Charge Curren

≤60A

Discharge Current

≤120A

 Instantaneous Discharge Current

200A

Internal Resistance

≤100mΩ

Life Cycle

≥ 2000 cycles

Communication

RS485&RS232

Weight

45Kg±1Kg


Dimension

       L420mm*W320mm*H260

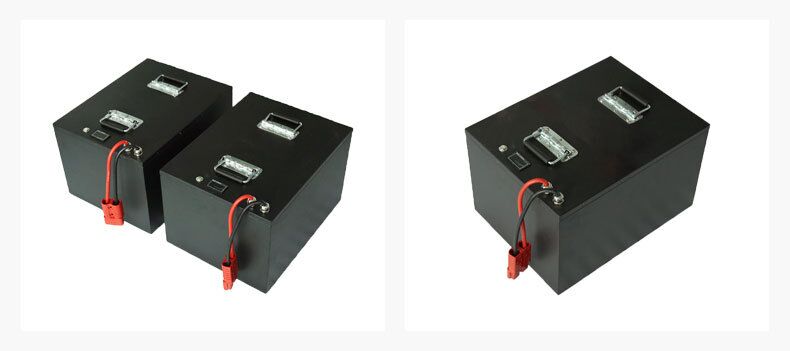

Our Product

6c068e3dfba39cdb08bf97018f456e4a

Technical Parameter

Our Advantage


Customized lithium ion battery

Grade A cells, with real capacity

Sustainable charging current can be reached 1C

With built-in smart BMS to monitor battery status and protect battery in real time

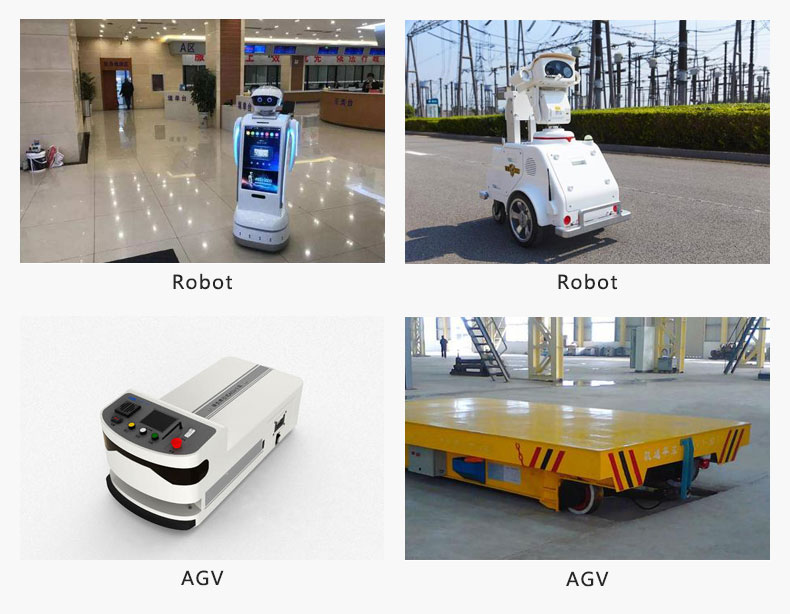

The Application


ed23548904096a4b28c6e3f97c414997
