36V 100AH AGV lithium battery pack 12S100Ah-CBB01-A

36V 100AH AGV lithium battery pack 12S100Ah-CBB01-A
  • 12S100Ah-CBB01-A

  • CBB/KOYAMA

  • 8507600090

Availability:
Quantity:

Datasheet


Item

                                   12S100Ah-CBB01-A

BMS

  with Smart BMS

Nominal Voltage

36V

Nominal Capacity

100Ah

Charge Curren

≤50A

Discharge Current

≤100A

 Instantaneous Discharge Current

150A

Internal Resistance

≤150mΩ

Life Cycle

≥ 2000 cycles

Communication

RS485&RS232

Weight

31Kg±2Kg


Dimension

       L800mm*W250mm*H250mm

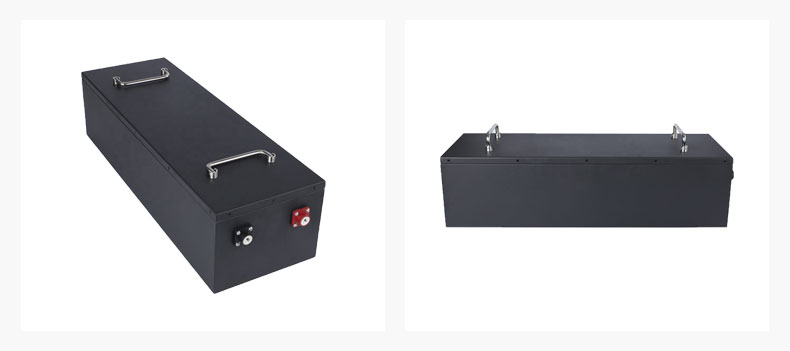

Our Product

9fc27ffdc1420c5e3afa7b7eb44a5c02

Technical Parameter

Our Advantage


Customized lithium ion battery

Grade A cells, with real capacity

Sustainable charging current can be reached 1C

With built-in smart BMS to monitor battery status and protect battery in real time


The Application


ed23548904096a4b28c6e3f97c414997
