CBB S048
CBB/KOYAMA
| Quantity: | |
|---|---|
Parameter | 36V 15Ah | 36V 17.4Ah | 36V 19.2Ah | |
1 | Nominal Capacity | 15Ah | 17.4Ah | 19.2Ah |
2 | Nominal Voltage | 36Volt | ||
3 | Nominal Power | 540Wh | 626Wh | 691Wh |
4 | Composed Type | 10Series 6Parallels | ||
5 | Battery Pack Cell | Brand 18650 2500mAh | Panasonic 2900mAh | Panasonic 3200mAh |
6 | Built-in BMS | 20Amp continuous 60±10Amp maximum | ||
7 | Fit Motor Power | 36V 0~500W | ||
8 | Riding Mileage | 32~54km | 38~62km | 41~69km |
9 | Charge Current | 2~3A | ||
10 | Charge Cut-off Voltage | 42V | ||
11 | Discharge Cut-off Voltage | 30V | ||
12 | Battery Weight | 4.4kg(9.70lb) | ||

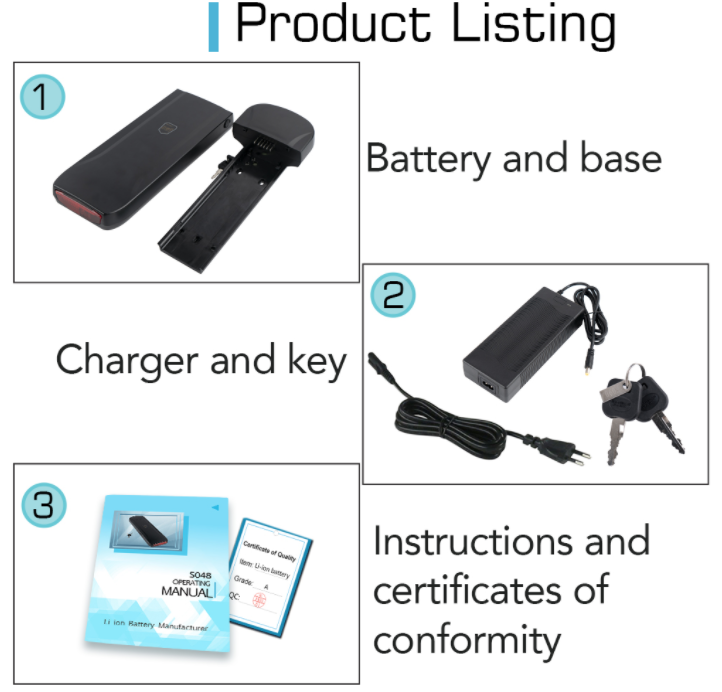

13 | Battery Charger | 2A Standard Charger | ||

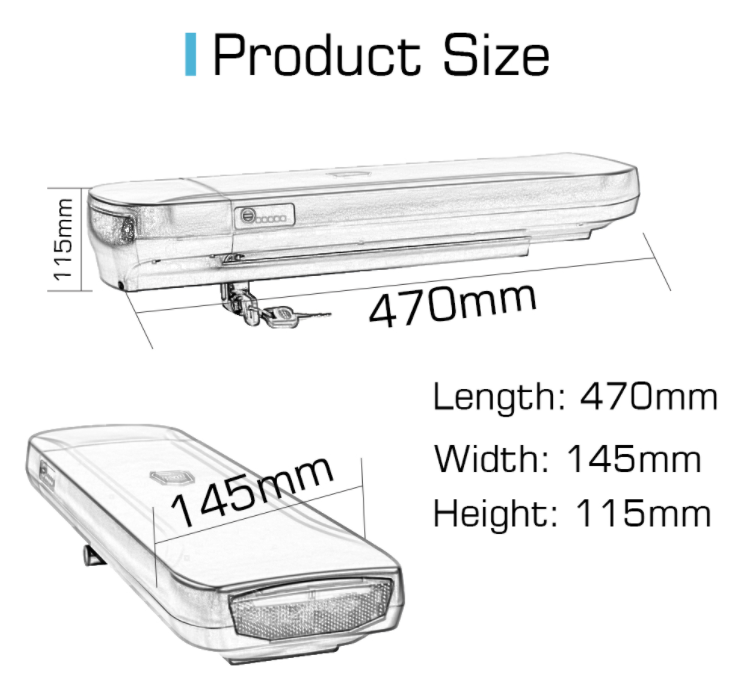

14 | Dimensions | 470*145*115mm | ||
15 | Charge Temperature | 0°C to 45°C | ||
16 | Discharge Temperature | -20°C to 65°C | ||
17 | Cycle Life | 1000 Cycles | ||
