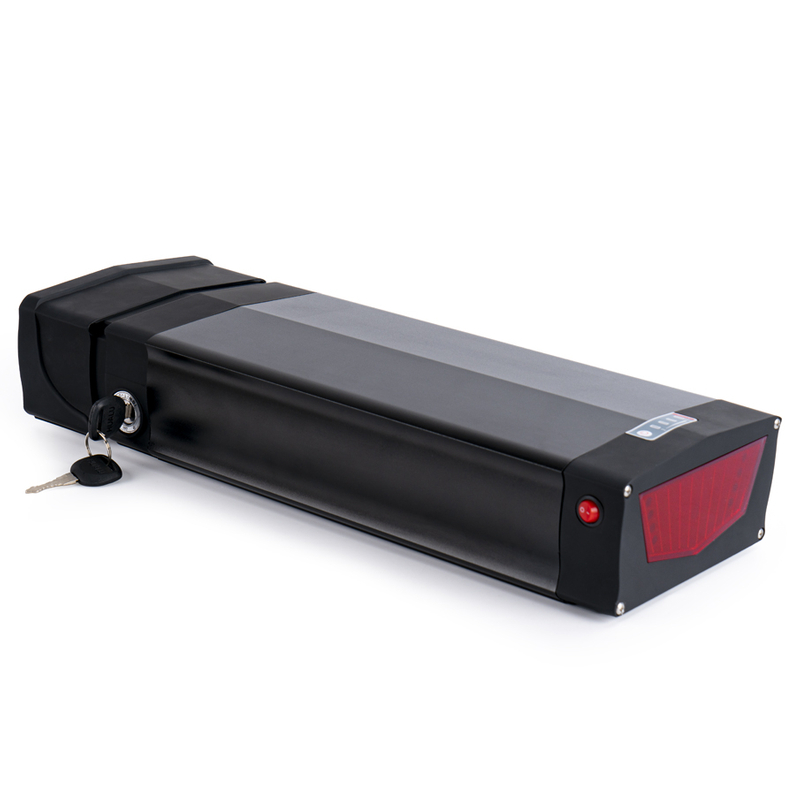

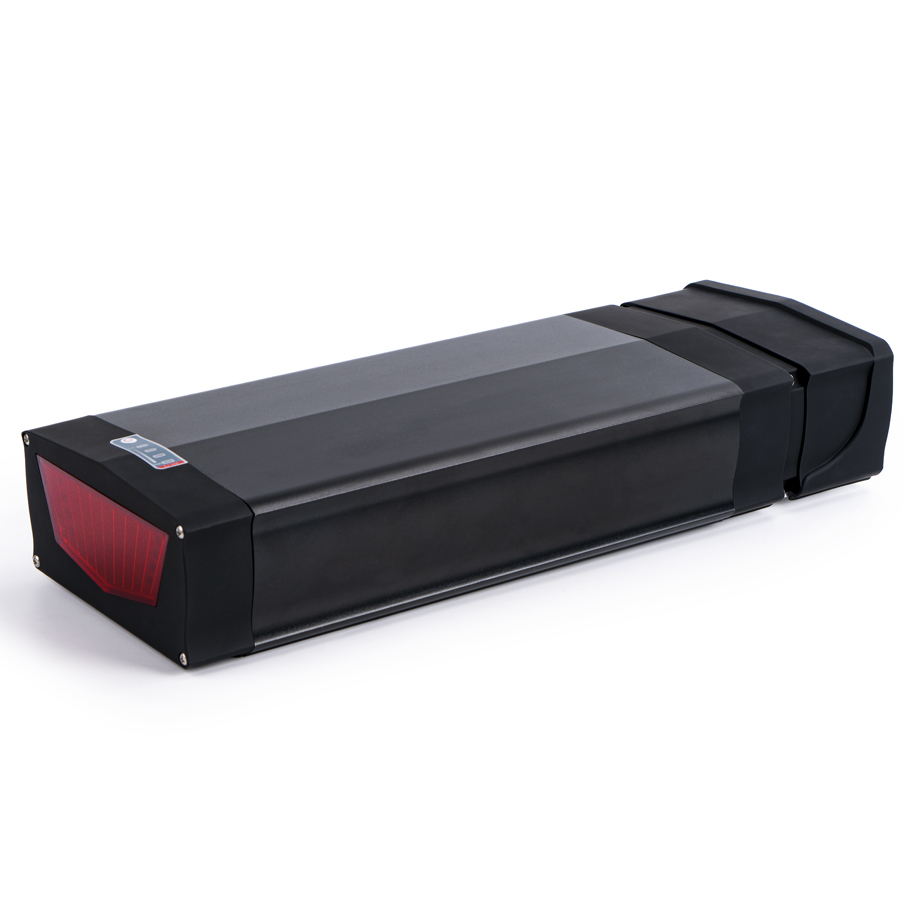

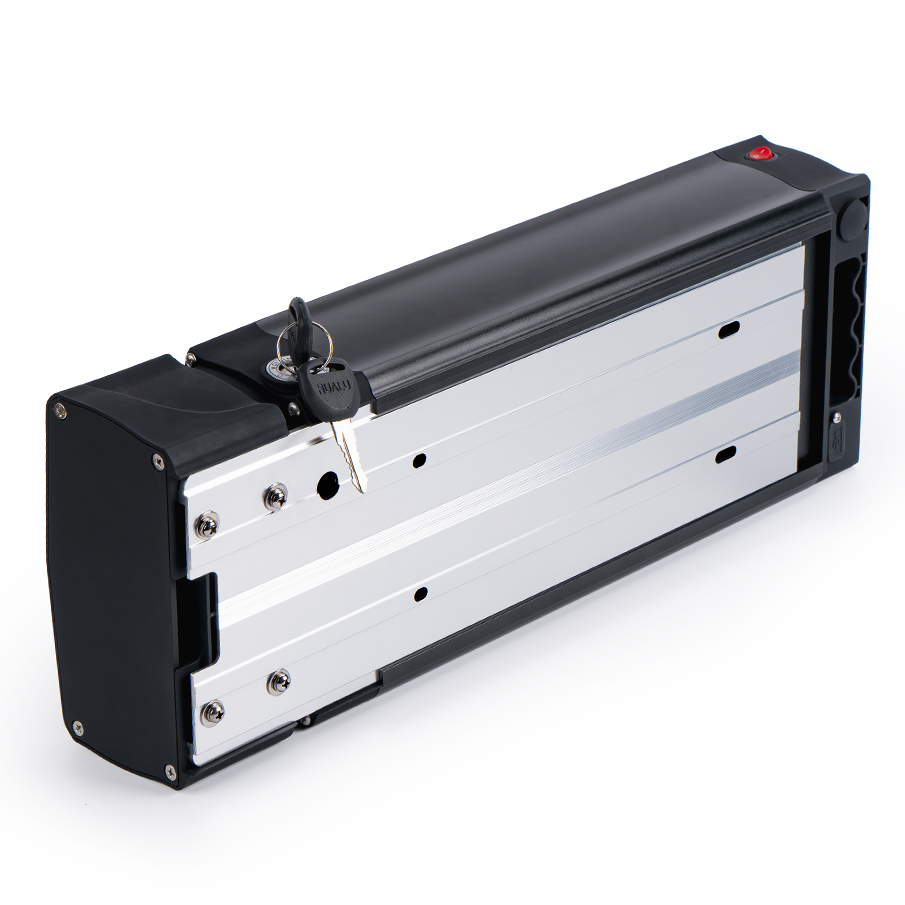

48 volt lithium battery 48v 20ah 15ah 22.5ah bike battery rear rack ebike batteries 18650 e-bike

48 volt lithium battery 48v 20ah 15ah 22.5ah bike battery rear rack ebike batteries 18650 e-bike

  • CBB S045

  • CBB/KOYAMA

  • 8507600090

Availability:
Quantity:
Inquiry

Specification for E-Bike Battery
Model No. :
S045
Battery Type:
Li-ion Battery
Rated Voltage&Capacity  :
48V 15Ah
48V 20Ah
48V 22.5Ah
Configurations:
13S 6P
13S 8P
13S 9P
Battery Cells Type :
Chinese 2500mAh cells
Chinese 2500mAh cells
Chinese 2500mAh cells
BMS :
30A for 48v 500w 750w 1000w motor
With Charger :
54.6V 2A
Discharging Cut-off Voltage ( V) :
36.4V

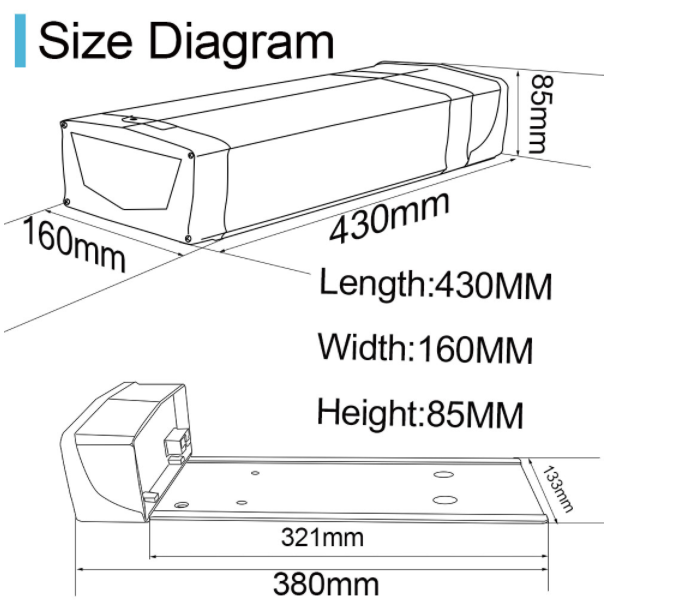

Size (mm) :
430*160*90mm
Battery Weight (kg) :
5.7Kg
7kg
7.7kg
Cycle Life (times) :
≥1000 times
Working Temprature:
-10 ~ 45 Celsius
Applications :
E-bike battery,Richshaw,Tricycle,Motor Cycle.
Color:
* Silver default ( black optional)

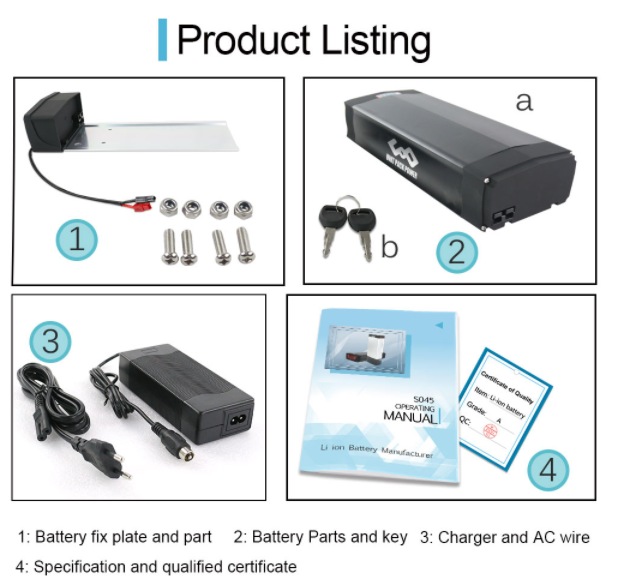

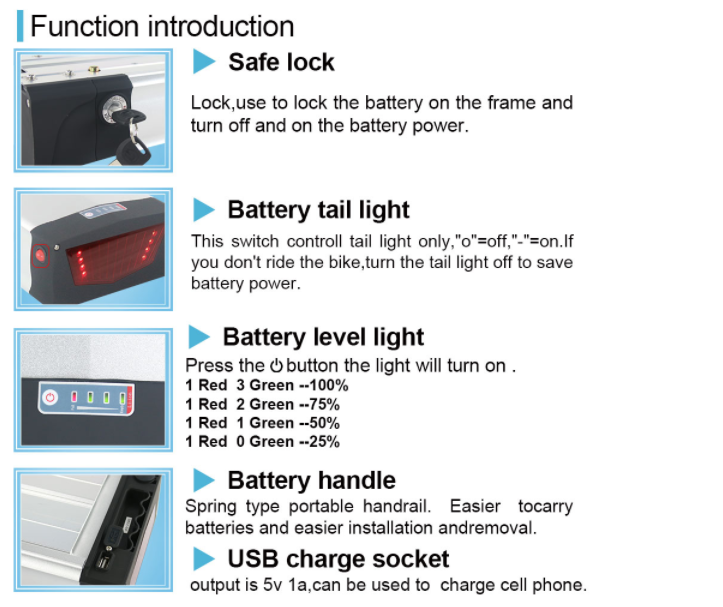

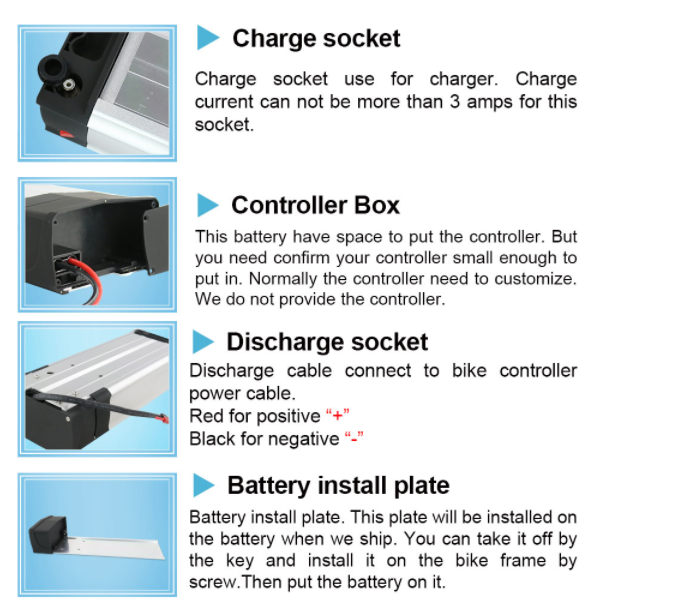

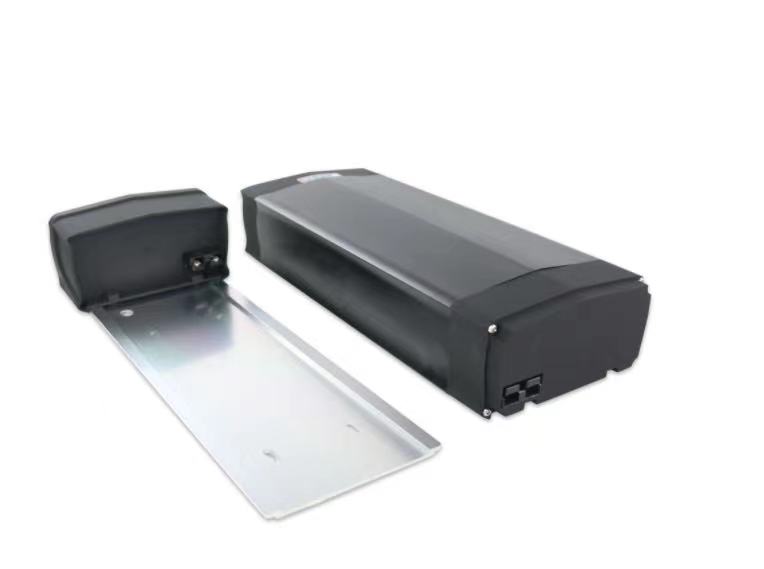

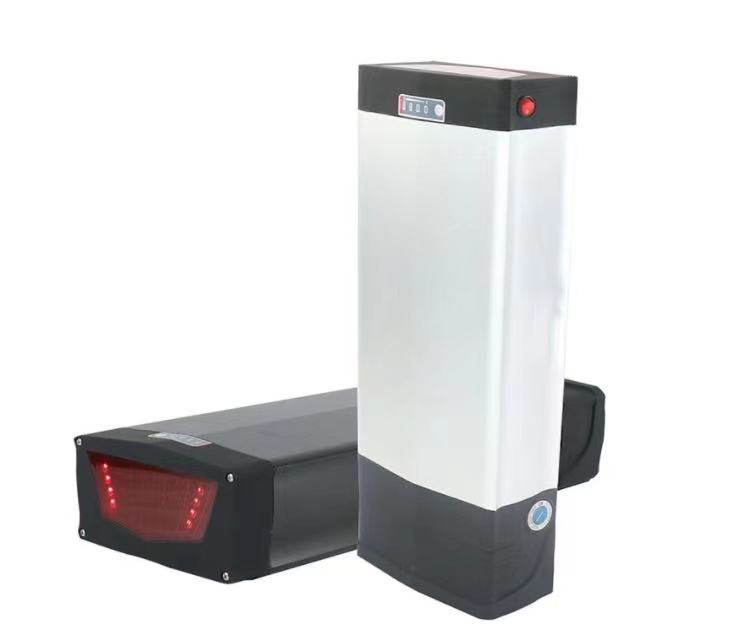

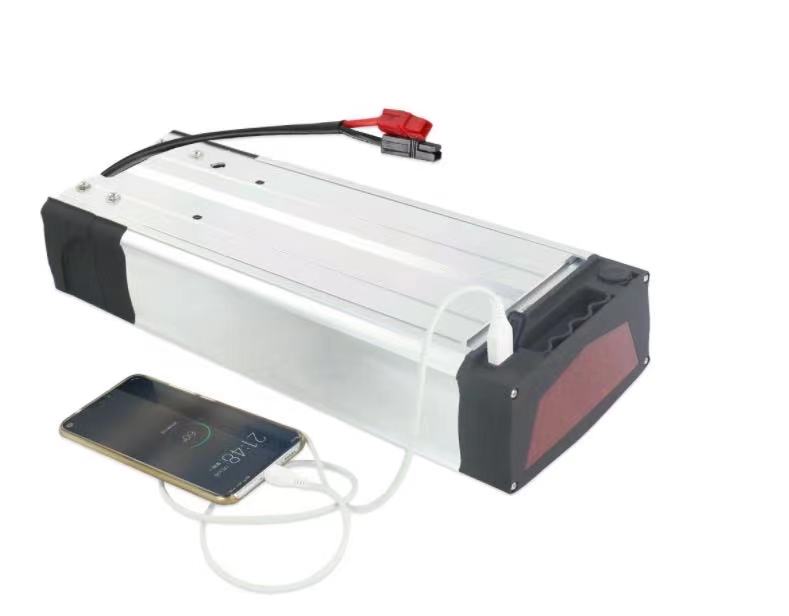

S045-1S045-2S045-3S045-4S045-5S045-6S045-7
